Front seat backrest frame/rear panel for BMW 3 Series E46 328Ci (2000)

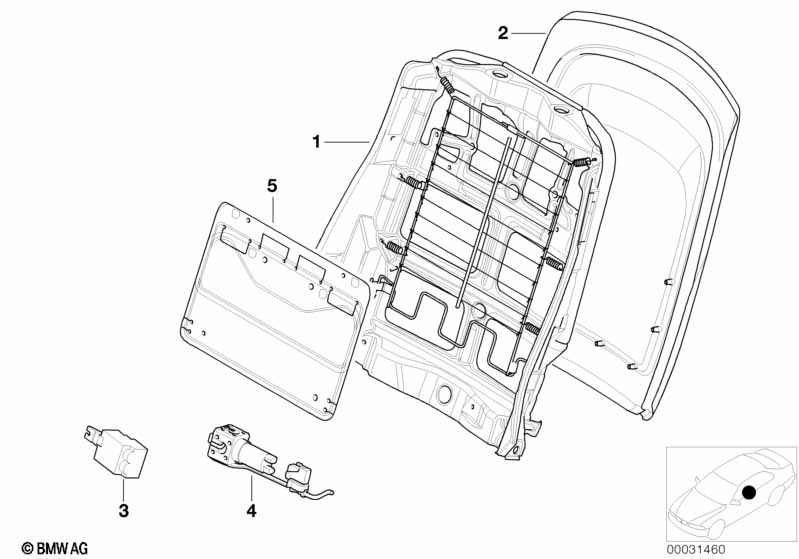

This Front seat backrest frame/rear panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Front seat backrest frame/rear panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Backrest frame 2 52108226421 $64.83 Shop at ECS Tuning
02 Rear panel with net bag NATURBRAUN 2 52107043136 $85.50 ENDED, +core Shop at ECS Tuning
02 Rear panel without net bag NATURBRAUN 2 52107043139 $78.07 ENDED Shop at ECS Tuning
02 Rear panel with net bag SCHWARZ 2 52108235900 $85.50 Shop at ECS Tuning
02 Rear panel with net bag GRAU 2 52108235901 $85.50 Shop at ECS Tuning
02 Rear panel with net bag MARINEBLAU 2 52108235902 $85.50 ENDED Shop at ECS Tuning
02 Rear panel with net bag MINTGRUEN 2 52108235903 $110.76 ENDED Shop at ECS Tuning
02 Rear panel with net bag BEIGE HELL 2 52108235904 $85.50 ENDED Shop at ECS Tuning
02 Rear panel with net bag TANINROT 2 52108235905 $85.50 ENDED Shop at ECS Tuning
02 Rear panel without net bag SCHWARZ 2 52108240380 $78.43 ENDED Shop at ECS Tuning
02 Rear panel without net bag GRAU 2 52108240381 $78.07 ENDED Shop at ECS Tuning
02 Rear panel without net bag MARINEBLAU 2 52108240382 $80.03 ENDED Shop at ECS Tuning
02 Rear panel without net bag MINTGRUEN 2 52108240383 $70.87 ENDED Shop at ECS Tuning
02 Rear panel without net bag BEIGE HELL 2 52108240384 $78.43 ENDED Shop at ECS Tuning
02 Rear panel without net bag TANINROT 2 52108240385 $80.03 ENDED Shop at ECS Tuning
For vehicles with
Leather, mosaic/walknappa
Q9=Yes
02 Rear panel with net bag Q9HC HELLBEIGE 2 03/1999 52108267633 $178.95 ENDED, +core Shop at ECS Tuning
For vehicles with
Leather High
V5=Yes
02 Rear panel with net bag V5BB BROMBEER 2 52107048629 $200.88 ENDED, +core Shop at ECS Tuning
For vehicles with
Leather, mosaic/walknappa
or
Leather High
Q9=Yes

V5=Yes
02 Rear panel with net bag Q9SW SCHWARZ 2 03/1999 52108267632 $178.95 ENDED, +core Shop at ECS Tuning
02 Rear panel with net bag Q9LT LIGHTGELB 2 03/1999 52108267634 $200.88 ENDED Shop at ECS Tuning
For vehicles with
Lumbar support, driver and passenger
S488A=Yes
03 Valve unit 2 06/2002 52107004689 $103.32 ENDED Shop at ECS Tuning
04 Lumbar support pump 2 06/2002 52108099008 $137.85 Shop at ECS Tuning
05 Lordosis pad 2 52108099007 $62.83 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
