Front seat backrest unlocking for BMW 3 Series E46 325Ci (2006)

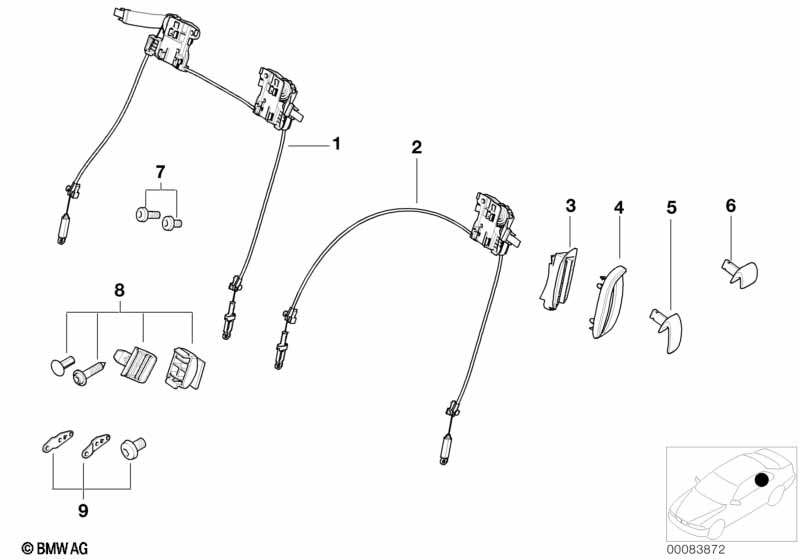

This Front seat backrest unlocking technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Unlocking unit | 1 | 52108099134 | $74.81 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Unlocking unit, left | 1 | 52108099137 | $80.32 | Shop at ECS Tuning | |||||
| 02 | Unlocking unit, right | 1 | 52108099138 | $74.81 | Shop at ECS Tuning | |||||
| 03 | Frame left | SCHWARZ | 1 | 52108099129 | $6.02 | Shop at ECS Tuning | ||||
| 03 | Frame right | SCHWARZ | 1 | 52108099130 | $6.02 | Shop at ECS Tuning | ||||
| 04 | Covering left | SCHWARZ | 1 | 52108242835 | $5.55 | Shop at ECS Tuning | ||||
| 04 | Covering right | SCHWARZ | 1 | 52108242836 | $5.55 | Shop at ECS Tuning | ||||
| 04 | Covering left | GRAU | 1 | 52108242837 | $5.55 | Shop at ECS Tuning | ||||
| 04 | Covering right | GRAU | 1 | 52108242838 | $5.55 | Shop at ECS Tuning | ||||
| 04 | Covering left | HELLBEIGE | 1 | 52108242839 | $5.45 | Shop at ECS Tuning | ||||
| 04 | Covering right | HELLBEIGE | 1 | 52108242840 | $5.45 | Shop at ECS Tuning | ||||
| 05 | Lever outer left | SCHWARZ | 1 | 09/2001 | 52107064869 | $6.70 | Shop at ECS Tuning | |||
| 05 | Lever outer right | SCHWARZ | 1 | 09/2001 | 52107064870 | $6.70 | Shop at ECS Tuning | |||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 06 | Lever inner left | SCHWARZ | 1 | 52108099119 | $6.70 | Shop at ECS Tuning | ||||
| 06 | Lever inner right | SCHWARZ | 1 | 52108099120 | $6.70 | Shop at ECS Tuning | ||||
| 07 | set of fittings for seat insets | 2 | 52108251432 | $3.37 | ENDED | Shop at ECS Tuning | ||||
| 08 | set of fittings for backrest rear panel | 2 | 52108240495 | $16.54 | ENDED | Shop at ECS Tuning | ||||
| 09 | set of fittings for seat shell | 2 | 52108240499 | $5.48 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
