Seat, rear, uphlstry/cover, load-through for BMW 3 Series E46 330Ci

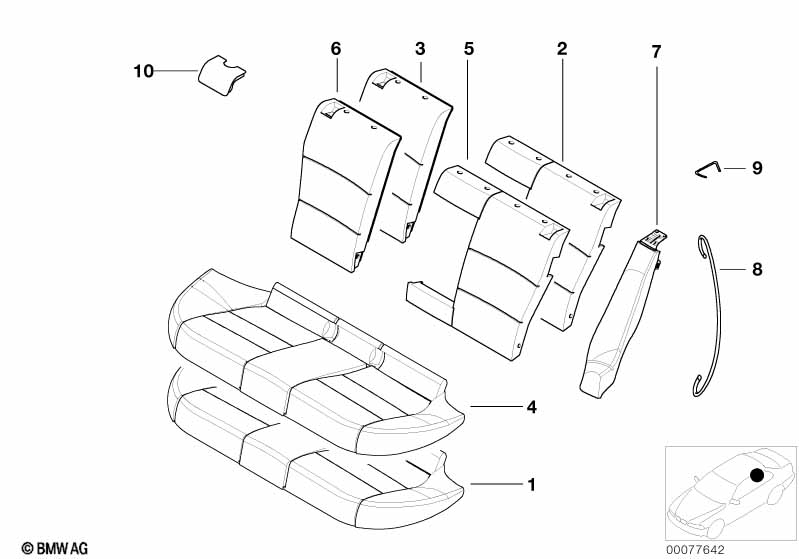

This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat upholstery | 1 | 52208236215 | $197.49 | Shop at ECS Tuning | |||||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 01 | Seat upholstery | 1 | 52207009900 | $197.49 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Left backrest upholstery | 1 | 52208214969 | $119.48 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right backrest upholstery | 1 | 52208214970 | $76.04 | Shop at ECS Tuning | |||||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 52208241593 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 04 | Seat cover cloth | PEACH | 1 | 09/2001 | 52208267782 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 04 | Seat cover vinyl | HELLBEIGE | 1 | 52208241604 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/traum-rot" |
E4TL=Yes |
|||||||||
| 04 | Seat cover cloth | TRAUMROT | 1 | 52207056877 | $566.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 04 | Seat cover leather | TANINROT | 1 | 09/2001 | 52208241595 | $957.97 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 09/2001 | 52208267786 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 04 | Seat cover leather | LIGHTGELB | 1 | 52207048619 | $1067.75 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 52207048618 | $1076.94 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 04 | Seat cover cloth | TIEFGRÜN | 1 | 09/2001 | 52208241584 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 04 | Seat cover cloth | TECHNOGRAU | 1 | 52207047486 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 04 | Seat cover cloth | BROMBEER | 1 | 52207047488 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Finolino"/sonora |
GBB9=Yes |
|||||||||
| 04 | Cloth/leather seat cover | SONORA | 1 | 09/2004 | 52207156168 | $566.37 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 52208241583 | $566.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 04 | Seat cover cloth | MARINEBLAU | 1 | 09/2001 | 52208241580 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 09/2001 | 52208241578 | $293.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Exclusive leather "futura"/granatrot |
LMC1=Yes |
|||||||||
| 04 | Seat cover leather | GRANATROT | 1 | 09/2004 | 52207155216 | $1009.98 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 04 | Seat cover vinyl | SCHWARZ | 1 | 52208241603 | $448.07 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/schwarz |
LMSW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 09/2004 | 52207155213 | $1009.98 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Exclusive leather "futura"/hellbeige 2 |
LMHC=Yes |
|||||||||
| 04 | Seat cover leather | HELLBEIGE | 1 | 09/2004 | 52207155214 | $1009.98 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather M-texture/Alcantara/anthrazit |
X1AT=Yes |
|||||||||
| 04 | Seat cover | ANTHRAZIT | 1 | 52207895608 | $611.01 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 04 | Seat cover leather | BROMBEER | 1 | 52207048620 | $1076.94 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellgrau |
LMTH=Yes |
|||||||||
| 04 | Seat cover leather | HELLGRAU | 1 | 09/2004 | 52207155215 | $1009.98 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 04 | Seat cover leather | HELLBEIGE | 1 | 52208241599 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 04 | Cloth/leather seat cover | ANTHRAZIT | 1 | 52207026244 | $566.37 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 52207901128 | $566.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 52207047487 | $293.51 | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 04 | Seat cover leather | NATURBRAUN | 1 | 52207056879 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 04 | Seat cover leather | GRAU | 1 | 52208241601 | $986.57 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 04 | Seat cover leather | LIGHTGELB | 1 | 09/2001 | 52208267788 | $1009.98 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Finolino"/anthrazit |
GBAT=Yes |
|||||||||
| 04 | Cloth/leather seat cover | ANTHRAZIT | 1 | 09/2004 | 52207156167 | $566.37 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 04 | Seat cover cloth | MINTGRÜN | 1 | 09/2001 | 52208241579 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 04 | Seat cover cloth | GRAU | 1 | 09/2001 | 52208241581 | $293.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 04 | Seat cover cloth | LAVENDEL | 1 | 09/2001 | 52208241589 | $293.51 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 04 | Seat cover leather | HELLBEIGE | 1 | 09/2001 | 52208267787 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 04 | Cloth/leather seat cover | HELLBEIGE | 1 | 52208267784 | $566.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Cloth/leather "Gran Turismo"/anthracite |
S470A=Yes E4AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 52207009450 | $566.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Cloth/leather "Maglia"/hell-beige 2 |
S470A=Yes E9HC=Yes |
|||||||||
| 04 | Cloth/leather seat cover | HELLBEIGE | 1 | 52207003555 | $566.37 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Vinyl light beige 2 |
S470A=Yes K4HC=Yes |
|||||||||
| 04 | Seat cover vinyl | HELLBEIGE | 1 | 52207009468 | $448.07 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather Mosaico expanded/lightgelb |
S470A=Yes Q9LT=Yes |
|||||||||
| 04 | Seat cover leather | LIGHTGELB | 1 | 09/2001 | 52207003553 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Cloth "Laser"/anthracite |
S470A=Yes G7AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 52207901132 | $448.07 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather Montana/basic equip/taninrot |
S470A=Yes N6TD=Yes |
|||||||||
| 04 | Seat cover leather | TANINROT | 1 | 09/2001 | 52207009459 | $887.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Cloth flock "Raute"/mint-green |
S470A=Yes E3AP=Yes |
|||||||||
| 04 | Seat cover cloth | MINTGRÜN | 1 | 09/2001 | 52207009446 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Cloth flock "Raute"/anthracite |
S470A=Yes E3AT=Yes |
|||||||||
| 04 | Seat cover cloth | ANTHRAZIT | 1 | 09/2001 | 52207009445 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Leather Mosaico expanded/black |
S470A=Yes Q9SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 09/2001 | 52207003551 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Cloth/leather "Bianco-Nero"/anthracite/w |
S470A=Yes H7BC=Yes |
|||||||||
| 04 | Cloth/leather seat cover | ANTHRAZIT | 1 | 52207026252 | $566.37 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Cloth flock "Raute"/navy blue |
S470A=Yes E3DL=Yes |
|||||||||
| 04 | Seat cover cloth | MARINEBLAU | 1 | 09/2001 | 52207009447 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Leather Montana/basic equip/grau |
S470A=Yes N6TT=Yes |
|||||||||
| 04 | Seat cover leather | GRAU | 1 | 52207009460 | $957.97 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Fabric/leather "Gran Turismo/tief-grün" |
S470A=Yes E4GG=Yes |
|||||||||
| 04 | Seat cover cloth | TIEFGRÜN | 1 | 09/2001 | 52207009451 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Imitation leather/black |
S470A=Yes K4SW=Yes |
|||||||||
| 04 | Seat cover vinyl | SCHWARZ | 1 | 52207009467 | $448.07 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Leather Montana/basic equip/schwarz |
S470A=Yes N6SW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 52207009457 | $957.97 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Fabric, fl.weave,open rhombus/peach |
S470A=Yes E8PP=Yes |
|||||||||
| 04 | Seat cover cloth | PEACH | 1 | 09/2001 | 52207031021 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Fabric Jacquard bicolor Moda/lavendel |
S470A=Yes E5LA=Yes |
|||||||||
| 04 | Seat cover cloth | LAVENDEL | 1 | 09/2001 | 52207009453 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Leather Montana/basic equip/hell-beige 2 |
S470A=Yes N6HC=Yes |
|||||||||
| 04 | Seat cover leather | HELLBEIGE | 1 | 52207009458 | $957.97 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Isofix-System and Cloth flock "Raute"/grey |
S470A=Yes E3TT=Yes |
|||||||||
| 04 | Seat cover cloth | GRAU | 1 | 09/2001 | 52207009448 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Isofix-System and Leather Mosaico expanded/light beige |
S470A=Yes Q9HC=Yes |
|||||||||
| 04 | Seat cover leather | HELLBEIGE | 1 | 09/2001 | 52207003552 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 52208225775 | $446.76 | Shop at ECS Tuning | ||||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 05 | Cover backrest cloth left | PEACH | 1 | 09/2001 | 52208267746 | $160.70 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 05 | Cover backrest vinyl left | HELLBEIGE | 1 | 52208236181 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/traum-rot" |
E4TL=Yes |
|||||||||
| 05 | Cover backrest cloth left | TRAUMROT | 1 | 52207043168 | $342.61 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 05 | Cover backrest leather left | TANINROT | 1 | 09/2001 | 52208225779 | $446.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 09/2001 | 52208267750 | $507.78 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 05 | Cover backrest leather left | LIGHTGELB | 1 | 52207048543 | $585.90 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 52207048542 | $585.90 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 05 | Cover backrest cloth left | TIEFGRÜN | 1 | 09/2001 | 52208225761 | $373.86 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 05 | Cover backrest cloth left | TECHNOGRAU | 1 | 52207047409 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 05 | Cover backrest cloth left | BROMBEER | 1 | 52207047411 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Finolino"/sonora |
GBB9=Yes |
|||||||||
| 05 | Left rear cloth/leather backrest cover | SONORA | 1 | 09/2004 | 52207156179 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT | 1 | 09/2001 | 52208225759 | $373.86 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 05 | Cover backrest cloth left | MARINEBLAU | 1 | 09/2001 | 52208225753 | $141.73 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 05 | Cover backrest cloth left | E3AT ANTHRAZIT | 1 | 09/2001 | 52208236162 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/granatrot |
LMC1=Yes |
|||||||||
| 05 | Cover backrest leather left | GRANATROT | 1 | 09/2004 | 52207155235 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 05 | Cover backrest vinyl left | SCHWARZ | 1 | 52208236180 | $208.29 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/schwarz |
LMSW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 09/2004 | 52207155229 | $611.01 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Exclusive leather "futura"/hellbeige 2 |
LMHC=Yes |
|||||||||
| 05 | Cover backrest leather left | HELLBEIGE | 1 | 09/2004 | 52207155231 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather M-texture/Alcantara/anthrazit |
X1AT=Yes |
|||||||||
| 05 | Cover backrest leather left | ANTHRAZIT | 1 | 52207895612 | $566.37 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 05 | Cover backrest leather left | BROMBEER | 1 | 52207048544 | $585.90 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellgrau |
LMTH=Yes |
|||||||||
| 05 | Cover backrest leather left | HELLGRAU | 1 | 09/2004 | 52207155233 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 05 | Cover backrest leather left | HELLBEIGE | 1 | 52208225777 | $446.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 05 | Left cloth/leather backrest cover | ANTHRAZIT | 1 | 52207026248 | $347.49 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207890287 | $208.29 | Shop at ECS Tuning | ||||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 05 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207047410 | $160.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 05 | Cover backrest leather left | NATURBRAUN | 1 | 52207043187 | $446.76 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 05 | Cover backrest leather left | GRAU | 1 | 52208225781 | $446.76 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 05 | Cover backrest leather left | LIGHTGELB | 1 | 09/2001 | 52208267752 | $507.78 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Finolino"/anthrazit |
GBAT=Yes |
|||||||||
| 05 | Left rear cloth/leather backrest cover | ANTHRAZIT | 1 | 09/2004 | 52207156177 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 05 | Cover backrest cloth left | E3AP MINTGRUEN | 1 | 09/2001 | 52208236165 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 05 | Cover backrest cloth left | GRAU | 1 | 09/2001 | 52208225755 | $160.70 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 05 | Cover backrest cloth left | LAVENDEL | 1 | 09/2001 | 52208225765 | $160.70 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 05 | Cover backrest leather left | HELLBEIGE | 1 | 09/2001 | 52208267751 | $507.78 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 05 | Left cloth/leather backrest cover | HELLBEIGE | 1 | 52208267748 | $373.86 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 52208225776 | $288.11 | Shop at ECS Tuning | ||||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 06 | Cover backrest cloth right | PEACH | 1 | 09/2001 | 52208267754 | $107.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 06 | Cover backrest leather right | HELLBEIGE | 1 | 52208248201 | $129.08 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/traum-rot" |
E4TL=Yes |
|||||||||
| 06 | Cover backrest cloth right | TRAUMROT | 1 | 52207043169 | $149.54 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 06 | Cover backrest leather right | TANINROT | 1 | 09/2001 | 52208225780 | $429.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 09/2001 | 52208267758 | $426.31 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 06 | Cover backrest leather right | LIGHTGELB | 1 | 52207048547 | $405.11 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 52207048546 | $405.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 06 | Cover backrest cloth right | TIEFGRÜN | 1 | 09/2001 | 52208225762 | $267.84 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 06 | Cover backrest cloth right | TECHNOGRAU | 1 | 52207047413 | $107.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 06 | Cover backrest cloth right | BROMBEER | 1 | 52207047415 | $107.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Finolino"/sonora |
GBB9=Yes |
|||||||||
| 06 | Right rear cloth/leather backrest cover | SONORA | 1 | 09/2004 | 52207156180 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT | 1 | 52208225760 | $267.84 | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 06 | Cover backrest cloth right | MARINEBLAU | 1 | 09/2001 | 52208225754 | $107.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 06 | Cover backrest cloth right | E3AT ANTHRAZIT | 1 | 09/2001 | 52208248185 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive leather "futura"/granatrot |
LMC1=Yes |
|||||||||
| 06 | Cover backrest leather right | GRANATROT | 1 | 09/2004 | 52207155236 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 52208248200 | $129.08 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/schwarz |
LMSW=Yes |
|||||||||
| 06 | Cover backrest leather right | SCHWARZ | 1 | 09/2004 | 52207155230 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellbeige 2 |
LMHC=Yes |
|||||||||
| 06 | Cover backrest leather right | HELLBEIGE | 1 | 09/2004 | 52207155232 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather M-texture/Alcantara/anthrazit |
X1AT=Yes |
|||||||||
| 06 | Cover backrest leather right | ANTHRAZIT | 1 | 52207895616 | $379.44 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 06 | Cover backrest leather right | BROMBEER | 1 | 52207048548 | $405.11 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellgrau |
LMTH=Yes |
|||||||||
| 06 | Cover backrest leather right | HELLGRAU | 1 | 09/2004 | 52207155234 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 06 | Cover backrest leather right | HELLBEIGE | 1 | 52208225778 | $288.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 06 | Right cloth/leather backrest cover | ANTHRAZIT | 1 | 52207026250 | $267.84 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207890291 | $129.08 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 06 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207047414 | $107.42 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 06 | Cover backrest leather right | NATURBRAUN | 1 | 52207043186 | $288.11 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 06 | Cover backrest leather right | GRAU | 1 | 52208225782 | $288.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 06 | Cover backrest leather right | LIGHTGELB | 1 | 09/2001 | 52208267760 | $429.66 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Finolino"/anthrazit |
GBAT=Yes |
|||||||||
| 06 | Right rear cloth/leather backrest cover | ANTHRAZIT | 1 | 09/2004 | 52207156178 | $267.84 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 06 | Cover backrest cloth right | MINTGRÜN | 1 | 09/2001 | 52208225752 | $107.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 06 | Cover backrest cloth right | GRAU | 1 | 09/2001 | 52208225756 | $107.42 | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 06 | Cover backrest cloth right | LAVENDEL | 1 | 09/2001 | 52208225766 | $107.42 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 06 | Cover backrest leather right | HELLBEIGE | 1 | 09/2001 | 52208267759 | $429.66 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 06 | Right cloth/leather backrest cover | HELLBEIGE | 1 | 52208267756 | $267.84 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 07 | Lateral trim panel left | PEACH | 1 | 09/2001 | 52208267791 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | PEACH | 1 | 09/2001 | 52208267792 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 07 | Lateral trim panel left | HELLBEIGE | 1 | 52208258705 | $163.73 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | HELLBEIGE | 1 | 52208258706 | $163.73 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/traum-rot" |
E4TL=Yes |
|||||||||
| 07 | Lateral trim panel left | TRAUMROT | 1 | 52207056835 | $285.70 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | TRAUMROT | 1 | 52207056848 | $285.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 07 | Lateral trim panel left | TANINROT | 1 | 52208258697 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | TANINROT | 1 | 52208258698 | $304.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 07 | Lateral trim panel left | TIEFGRÜN | 1 | 09/2001 | 52208258681 | $285.70 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | TIEFGRÜN | 1 | 09/2001 | 52208258682 | $285.70 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 07 | Lateral trim panel left | TECHNOGRAU | 1 | 52207047491 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | TECHNOGRAU | 1 | 52207047492 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 07 | Lateral trim panel left | BROMBERER | 1 | 52207047495 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | BROMBEER | 1 | 52207047496 | $152.89 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Finolino"/sonora |
GBB9=Yes |
|||||||||
| 07 | Lateral trim panel left | SONORA | 1 | 09/2004 | 52207156203 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | SONORA | 1 | 09/2004 | 52207156204 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52208258679 | $272.55 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52208258680 | $272.55 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 07 | Lateral trim panel left | MARINEBLAU | 1 | 09/2001 | 52208258673 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | MARINEBLAU | 1 | 09/2001 | 52208258674 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 09/2001 | 52208258669 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 09/2001 | 52208258670 | $152.89 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Exclusive leather "futura"/granatrot |
LMC1=Yes |
|||||||||
| 07 | Lateral trim panel left | GRANATROT | 1 | 09/2004 | 52207155275 | $233.24 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | GRANATROT | 1 | 09/2004 | 52207155276 | $233.24 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 52208258703 | $163.73 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 52208258704 | $163.73 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellbeige 2 |
LMHC=Yes |
|||||||||
| 07 | Lateral trim panel left | HELLBEIGE | 1 | 09/2004 | 52207155271 | $233.24 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | HELLBEIGE | 1 | 09/2004 | 52207155272 | $233.24 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 07 | Lateral trim panel left | BROMBEER | 1 | 52207055141 | $304.67 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | BROMBEER | 1 | 52207055142 | $304.67 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellgrau |
LMTH=Yes |
|||||||||
| 07 | Lateral trim panel left | HELLGRAU | 1 | 09/2004 | 52207155273 | $233.24 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | HELLGRAU | 1 | 09/2004 | 52207155274 | $233.24 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52207026255 | $285.70 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52207026256 | $285.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52207901597 | $285.70 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52207901598 | $285.70 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 07 | Lateral trim panel left | ANTHRAZIT | 1 | 52207047493 | $152.89 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | ANTHRAZIT | 1 | 52207047494 | $152.89 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 07 | Lateral trim panel left | NATURBRAUN | 1 | 52207056850 | $304.67 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | NATURBRAUN | 1 | 52207056854 | $327.04 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 07 | Lateral trim panel left | GRAU | 1 | 52208258699 | $327.04 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | GRAU | 1 | 52208258700 | $327.04 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 07 | Lateral trim panel left | MINTGRÜN | 1 | 09/2001 | 52208258671 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | MINTGRÜN | 1 | 09/2001 | 52208258672 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 07 | Lateral trim panel left | GRAU | 1 | 09/2001 | 52208258675 | $163.73 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | GRAU | 1 | 09/2001 | 52208258676 | $163.73 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 07 | Lateral trim panel left | LAVENDEL | 1 | 09/2001 | 52208258685 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | LAVENDEL | 1 | 09/2001 | 52208258686 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 07 | Lateral trim panel left | HELLBEIGE | 1 | 09/2001 | 52208267801 | $304.67 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | HELLBEIGE | 1 | 09/2001 | 52208267802 | $304.67 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 07 | Lateral trim panel left | HELLBEIGE | 1 | 52208267795 | $350.42 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | HELLBEIGE | 1 | 52208267796 | $350.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 or Leather Montana/basic equip/hell-beige 2 |
E9HC=Yes N6HC=Yes |
|||||||||
| 07 | Lateral trim panel left | HELLBEIGE | 1 | 52208258695 | $327.04 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | HELLBEIGE | 1 | 52208258696 | $327.04 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/black or Leather High/black |
Q9SW=Yes V5SW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 52208267799 | $327.04 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 52208267800 | $304.67 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Finolino"/anthrazit or Exclusive leather "futura"/schwarz |
GBAT=Yes LMSW=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 09/2004 | 52207155269 | $233.24 | ENDED | Shop at ECS Tuning | ||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 09/2004 | 52207155270 | $233.24 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/lightgelb or Leather High/light gelb |
Q9LT=Yes V5LT=Yes |
|||||||||
| 07 | Lateral trim panel left | LIGHTGELB | 1 | 52208267803 | $304.67 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | LIGHTGELB | 1 | 52208267804 | $304.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/anthrazit or Leather Montana/basic equip/schwarz or Leather M-texture/Alcantara/anthrazit |
E9AT=Yes N6SW=Yes X1AT=Yes |
|||||||||
| 07 | Lateral trim panel left | SCHWARZ | 1 | 52208258693 | $327.04 | ENDED | Shop at ECS Tuning | |||
| 07 | Lateral trim panel right | SCHWARZ | 1 | 52208258694 | $327.04 | ENDED | Shop at ECS Tuning | |||
| 08 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 09 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 10 | Cover isofix | ANTHRAZIT | 4 | 52207009903 | $5.93 | Shop at ECS Tuning | ||||
| 10 | Cover isofix | GRAU | 4 | 52207009904 | $5.93 | Shop at ECS Tuning | ||||
| 10 | Cover isofix | HELLBEIGE | 4 | 52207009907 | $5.93 | Shop at ECS Tuning | ||||
| 10 | Cover isofix | LIGHTGELB | 4 | 52207009909 | $7.03 | Shop at ECS Tuning | ||||
| 10 | Cover isofix | PEACH | 4 | 52207010924 | $7.87 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci Seat, rear, uphlstry/cover, load-through?
- This technical diagram illustrates the Seat, rear, uphlstry/cover, load-through within the Seats group for the 3 Series E46 330Ci. It provides a detailed exploded view of the components, identifying key parts such as the Seat upholstery (Part #52208236215).
- Which models use the hardware listed in this Seat, rear, uphlstry/cover, load-through?
- The hardware and components featured in the Seat, rear, uphlstry/cover, load-through are specific to the 3 Series E46 330Ci. These technical specifications ensure that parts like the Seat upholstery (52208236215) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, rear, uphlstry/cover, load-through assembly?
- Each item in the Seat, rear, uphlstry/cover, load-through corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Seat upholstery by locating its position on the schematic, which then links to the official BMW part number 52208236215 for the Seats section.
