Front seat backrest frame/rear panel for BMW 3 Series E46 325Ci (2006)

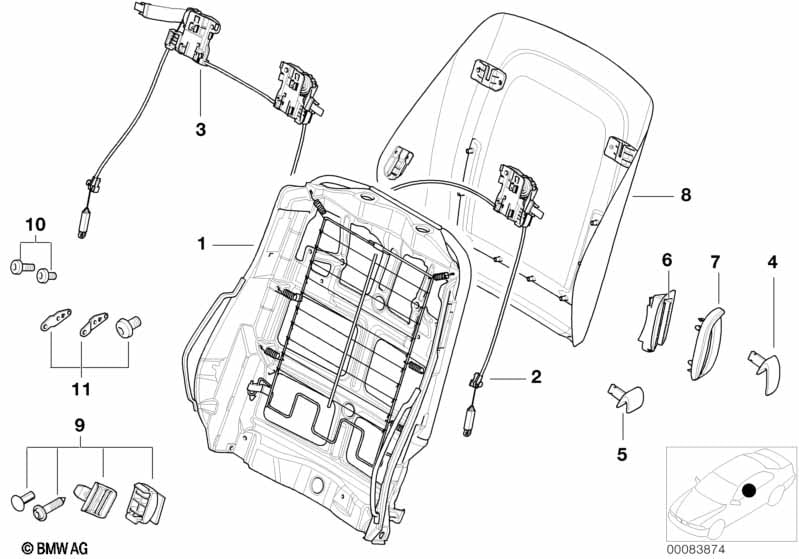

This Front seat backrest frame/rear panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Backrest frame | 2 | 52108234341 | $71.47 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Unlocking unit, left | 1 | 52108099137 | $80.32 | Shop at ECS Tuning | |||||
| 02 | Unlocking unit, right | 1 | 52108099138 | $74.81 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 03 | Unlocking unit | 1 | 52108099134 | $74.81 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lever outer left | SCHWARZ | 1 | 09/2001 | 52107064869 | $6.70 | Shop at ECS Tuning | |||
| 04 | Lever outer right | SCHWARZ | 1 | 09/2001 | 52107064870 | $6.70 | Shop at ECS Tuning | |||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 05 | Lever inner left | SCHWARZ | 1 | 52108099119 | $6.70 | Shop at ECS Tuning | ||||
| 05 | Lever inner right | SCHWARZ | 1 | 52108099120 | $6.70 | Shop at ECS Tuning | ||||
| 06 | Frame left | SCHWARZ | 1 | 52108099129 | $6.02 | Shop at ECS Tuning | ||||
| 06 | Frame right | SCHWARZ | 1 | 52108099130 | $6.02 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 07 | Covering left | SCHWARZ | 1 | 52108242835 | $5.55 | Shop at ECS Tuning | ||||
| 07 | Covering right | SCHWARZ | 1 | 52108242836 | $5.55 | Shop at ECS Tuning | ||||
| 07 | Covering left | GRAU | 1 | 52108242837 | $5.55 | Shop at ECS Tuning | ||||
| 07 | Covering right | GRAU | 1 | 52108242838 | $5.55 | Shop at ECS Tuning | ||||
| 07 | Covering left | HELLBEIGE | 1 | 52108242839 | $5.45 | Shop at ECS Tuning | ||||
| 07 | Covering right | HELLBEIGE | 1 | 52108242840 | $5.45 | Shop at ECS Tuning | ||||
| 08 | Rear panel with net bag | SCHWARZ | 2 | 52108235907 | $109.95 | ENDED | Shop at ECS Tuning | |||
| 08 | Rear panel with net bag | GRAU | 2 | 52108235908 | $109.95 | Shop at ECS Tuning | ||||
| 08 | Rear panel with net bag | BEIGE HELL | 2 | 52108235909 | $109.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather, mosaic/walknappa |
Q9=Yes |
|||||||||
| 08 | Rear panel with net bag | Q9HC HELLBEIGE | 2 | 52108267637 | $268.95 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High |
V5=Yes |
|||||||||
| 08 | Rear panel with net bag | V5BB BROMBEER | 2 | 52107047117 | $263.95 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather, mosaic/walknappa or Leather High |
Q9=Yes V5=Yes |
|||||||||
| 08 | Rear panel with net bag | Q9L7SW SCHWARZ | 2 | 52108267636 | $268.95 | ENDED | Shop at ECS Tuning | |||
| 08 | Rear panel with net bag | Q9LT LIGHTGELB | 2 | 52108267638 | $268.95 | ENDED | Shop at ECS Tuning | |||
| 09 | set of fittings for backrest rear panel | 2 | 52108240495 | $16.54 | ENDED | Shop at ECS Tuning | ||||
| 10 | set of fittings for seat insets | 2 | 52108251432 | $3.37 | ENDED | Shop at ECS Tuning | ||||
| 11 | set of fittings for seat shell | 2 | 52108240499 | $5.48 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
