Seat, front, Active seat single parts for BMW 7 Series E38 735i (2001)

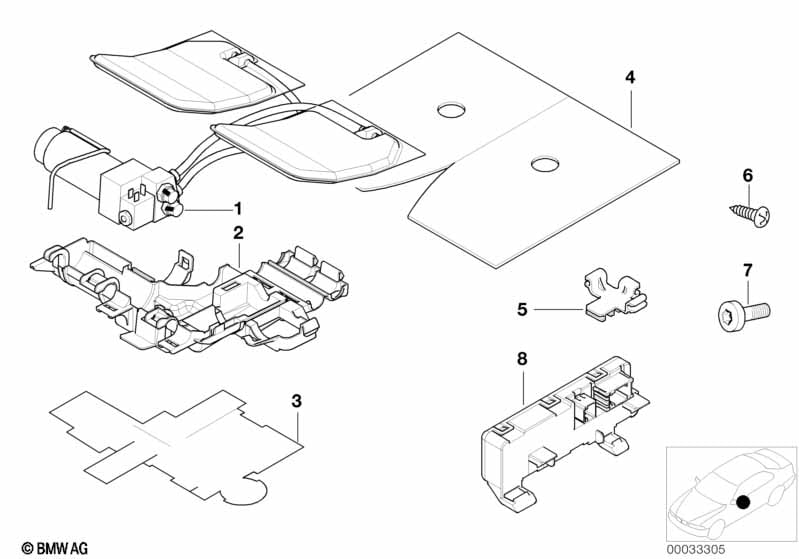

This Seat, front, Active seat single parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to SA 455 = Active seat and SA 456 = comfort seat |
|||||||||
| For vehicles with Active seat for driver and passenger and Seat adjuster, electric, with memory |
S455A=No S459A=No |
|||||||||
| 01 | Drive, active seat | 2 | 09/1998 | 52107032761 | $698.87 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Active seat for driver and passenger or Seat adjuster, electric, with memory |
S455A=Yes S459A=Yes |
|||||||||
| 01 | Drive, active seat | 2 | 09/1998 | 52108234873 | $1168.01 | Shop at ECS Tuning | ||||
| 02 | Bracket, drive, active seat | 2 | 09/1998 | 52108234874 | $13.09 | Shop at ECS Tuning | ||||
| 03 | Sound protection cap,active seat drive | 2 | 09/1998 | 52108264249 | $30.97 | Shop at ECS Tuning | ||||
| 04 | Base | 2 | 09/1998 | 52108264250 | $16.56 | ENDED | Shop at ECS Tuning | |||
| 05 | Plug-in connection bracket | 2 | 09/1998 | 61138365551 | $1.51 | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | 4,2X16MM | 8 | 09/1998 | 07119905243 | $0.19 | Shop at ECS Tuning | |||
| 07 | Fillister-head screw | 4 | 09/1998 | 51108238067 | $0.39 | Shop at ECS Tuning | ||||
| 08 | Control unit, active seat ventilation | 2 | 09/1998 | 61356901558 | $209.49 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
