Seat, rear, seat frame, left for BMW 3 Series E46 323i (2000)

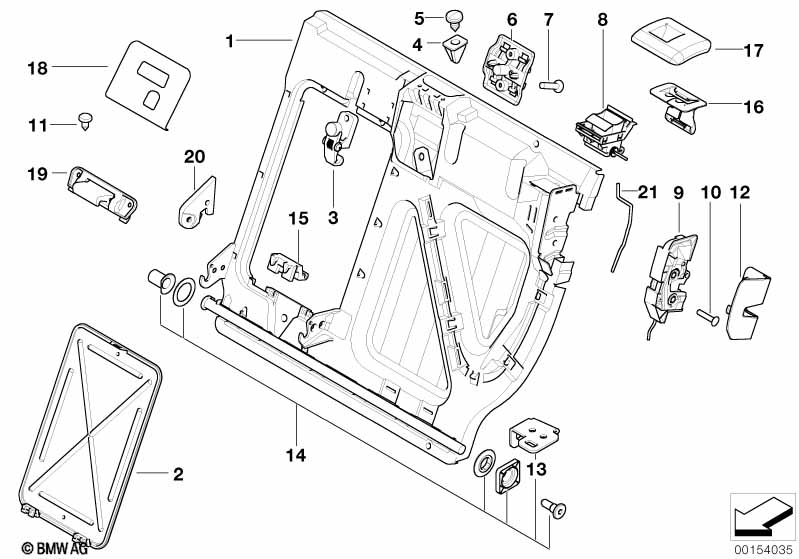

This Seat, rear, seat frame, left technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame, backrest left | SCHWARZ | 1 | 52207008437 | $329.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Frame, backrest left | GRAU | 1 | 52207008438 | $344.17 | ENDED | Shop at ECS Tuning | |||
| 01 | Frame, backrest left | HELLBEIGE | 1 | 52207008439 | $329.22 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Ski bag |
S464A=Yes |
|||||||||
| 01 | Frame, backrest left | SCHWARZ | 1 | 52207008429 | $350.42 | ENDED | Shop at ECS Tuning | |||
| 01 | Frame, backrest left | GRAU | 1 | 52207008430 | $350.42 | ENDED | Shop at ECS Tuning | |||
| 01 | Frame, backrest left | HELLBEIGE | 1 | 52207008431 | $350.42 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Flap ski bag | SCHWARZ | 1 | 52208267106 | $58.01 | ENDED | Shop at ECS Tuning | |||
| 02 | Flap ski bag | GRAU | 1 | 52208267107 | $58.01 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Flap ski bag | HELLBEIGE | 1 | 52208267108 | $49.10 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Ski bag locking mechanism | 1 | 52207028703 | $11.70 | ENDED | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,2X17 | 2 | 07146977362 | $1.09 | Shop at ECS Tuning | ||||
| 06 | Support f roller blind, backrest | 2 | 51479149454 | $35.36 | Shop at ECS Tuning | |||||
| 07 | Fillister head with washer | M6X20-SB-Z1-8.8 | 2 | 07119900514 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Unlocking unit | SCHWARZ | 2 | 52208221531 | $8.32 | Shop at ECS Tuning | ||||
| 09 | Catch rear left | 1 | 52208267019 | $40.76 | Shop at ECS Tuning | |||||
| 10 | Screw | 4 | 52208267018 | $0.63 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw | M6X16 | 2 | 07149165135 | $0.22 | Shop at ECS Tuning | ||||
| 12 | Lock panel, left | SCHWARZ | 1 | 52208267093 | $7.10 | Shop at ECS Tuning | ||||
| 12 | Lock panel, right | SCHWARZ | 1 | 52208267094 | $7.10 | Shop at ECS Tuning | ||||
| 12 | Lock panel, left | GRAU | 1 | 52208267095 | $7.10 | Shop at ECS Tuning | ||||
| 12 | Lock panel, right | GRAU | 1 | 52208267096 | $7.10 | ENDED | Shop at ECS Tuning | |||
| 12 | Lock panel, left | HELLBEIGE | 1 | 52208267097 | $7.10 | Shop at ECS Tuning | ||||
| 12 | Lock panel, right | HELLBEIGE | 1 | 52208267098 | $7.10 | Shop at ECS Tuning | ||||
| 14 | Fastening set | 1 | 52208267041 | $14.95 | Shop at ECS Tuning | |||||
| 15 | Hinge | 2 | 52207000334 | $2.37 | Shop at ECS Tuning | |||||
| 15 | Hinge | GRAU | 2 | 52207015038 | $1.23 | Shop at ECS Tuning | ||||
| 15 | Hinge | HELLBEIGE | 2 | 52207015040 | $1.23 | ENDED | Shop at ECS Tuning | |||
| 15 | Hinge | SCHWARZ | 2 | 52207015041 | $1.23 | Shop at ECS Tuning | ||||
| 16 | Cover, belt outlet | SCHWARZ | 1 | 52208267034 | $9.92 | Shop at ECS Tuning | ||||
| 16 | Cover, belt outlet | GRAU | 1 | 52208267035 | $9.92 | Shop at ECS Tuning | ||||
| 16 | Cover, belt outlet | HELLBEIGE | 1 | 52208267036 | $9.92 | Shop at ECS Tuning | ||||
| 17 | Covering outer | SCHWARZ | 2 | 52207000324 | $7.10 | Shop at ECS Tuning | ||||
| 17 | Cover trim seat | GRAU | 2 | 52207000325 | $7.10 | Shop at ECS Tuning | ||||
| 17 | Covering outer | HELLBEIGE | 2 | 52207000326 | $7.10 | Shop at ECS Tuning | ||||
| 18 | Cover | SCHWARZ | 1 | 52207008446 | $7.10 | Shop at ECS Tuning | ||||
| 18 | Cover | GRAU | 1 | 52207008447 | $7.10 | ENDED | Shop at ECS Tuning | |||
| 18 | Cover | HELLBEIGE | 1 | 52207008448 | $7.10 | Shop at ECS Tuning | ||||
| For vehicles with Ski bag |
S464A=Yes |
|||||||||
| 18 | Cover | LIGHTGELB | 1 | 52207035852 | $5.58 | ENDED | Shop at ECS Tuning | |||
| 18 | Cover | SCHWARZ | 1 | 52208267038 | $7.10 | Shop at ECS Tuning | ||||
| 18 | Cover | GRAU | 1 | 52208267039 | $6.03 | Shop at ECS Tuning | ||||
| 18 | Cover | HELLBEIGE | 1 | 52208267040 | $6.03 | ENDED | Shop at ECS Tuning | |||
| 19 | Locking mechanism | 1 | 52207008444 | $19.87 | Shop at ECS Tuning | |||||
| 20 | Cover | 1 | 52207049456 | $1.23 | Shop at ECS Tuning | |||||
| 21 | Operating rod | 2 | 52209113327 | $6.43 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
