Seat, rear, seat frame, right for BMW 3 Series E46 316i (2005)

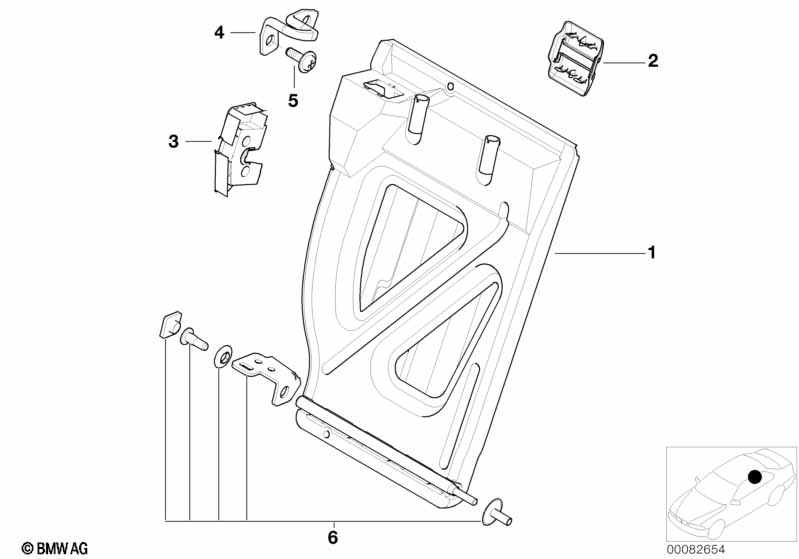

This Seat, rear, seat frame, right technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame, backrest right | SCHWARZ | 1 | 52207008453 | $263.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Frame, backrest right | GRAU | 1 | 52207008454 | $289.91 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Frame, backrest right | HELLBEIGE | 1 | 52207008455 | $289.91 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover f roller cover support | SCHWARZ | 1 | 51478235624 | $2.30 | Shop at ECS Tuning | ||||
| 03 | Catch rear right | 1 | 52208267020 | $40.76 | Shop at ECS Tuning | |||||
| 04 | Support | LINKS | 1 | 52208231745 | $9.47 | Shop at ECS Tuning | ||||
| 04 | Support | RECHTS | 1 | 52208231746 | $9.47 | Shop at ECS Tuning | ||||
| 05 | Torx screw with collar | M8X20 T30 | 1 | 07147124309 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M8X20 T40 | 1 | 52209145356 | $0.50 | ENDED | Shop at ECS Tuning | |||
| 06 | Fastening set | 1 | 52208267042 | $18.64 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
