Rear seat head restraint for BMW 3 Series E46 318i (2001)

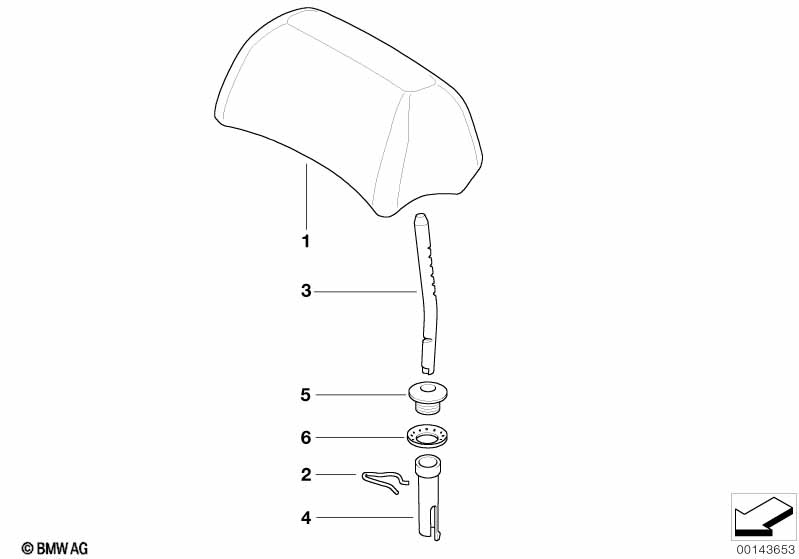

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 01 | Head rest cloth | PEACH | 2 | 09/2001 | 52207027559 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 1 | 09/2001 | 52207000060 | $273.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52208258089 | $101.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52207902878 | $167.40 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 01 | Head rest cloth | MINTGRUEN | 2 | 09/2001 | 52208258085 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather, "Chameleon"/black-gray |
V3TM=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZGRAU | 2 | 52207115605 | $206.46 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 01 | Head rest cloth | HELLBEIGE | 2 | 52208258102 | $138.87 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 01 | Head rest cloth | BROMBEER | 2 | 52207047432 | $101.56 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 2 | 09/2001 | 52208258087 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52207047431 | $101.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 01 | Headrest leather | LIGHTGELB | 2 | 52207048563 | $273.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Scritto"/black-grau |
V8TM=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZGRAU | 2 | 52207115601 | $206.46 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 01 | Head rest cloth | MARINEBLAU | 2 | 09/2001 | 52208258086 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 01 | Head rest cloth | SCHWARZ | 2 | 52208258101 | $101.56 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 2 | 52208258099 | $224.00 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 01 | Headrest leather | HELLBEIGE | 1 | 09/2001 | 52207000061 | $273.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 01 | Headrest leather | ANTHRAZIT | 2 | 52207026551 | $167.40 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Scritto"/mystic-blau |
V8MF=Yes |
|||||||||
| 01 | Headrest leather | MYSTICBLAU | 2 | 52207115602 | $206.46 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather, "Chameleon"/kiesel-grau |
V3KA=Yes |
|||||||||
| 01 | Headrest leather | KIESELGRAU | 2 | 52207115604 | $206.46 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 01 | Head rest cloth | TIEFGRUEN | 2 | 09/2001 | 52208258090 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 01 | Headrest leather | LIGHTGELB | 1 | 09/2001 | 52207000062 | $273.42 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 01 | Headrest leather | HELLBEIGE | 2 | 52208258097 | $224.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 01 | Headrest leather | TANINROT | 2 | 09/2001 | 52208258098 | $206.46 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 01 | Headrest leather | BROMBEER | 2 | 52207048564 | $273.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52208258096 | $206.46 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 01 | Headrest leather | HELLBEIGE | 2 | 52208258097 | $224.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/gray |
H9TT=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 2 | 52207046791 | $101.56 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52207048562 | $273.42 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 01 | Headrest leather | NATURBRAUN | 2 | 52207044277 | $206.46 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/anthracite |
H9AT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52207046790 | $101.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 09/2001 | 52208258084 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 01 | Head rest cloth | LAVENDEL | 2 | 09/2001 | 52208258092 | $101.56 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Spring washer | 1,4 MM | 4 | 52108132021 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Guide | 4 | 52208265366 | $5.93 | ENDED | Shop at ECS Tuning | ||||
| 04 | Guide bush | 4 | 52208132020 | $1.80 | Shop at ECS Tuning | |||||
| 05 | Cover | HELLBEIGE | 4 | 52107008669 | $7.55 | Shop at ECS Tuning | ||||
| 05 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 06 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
