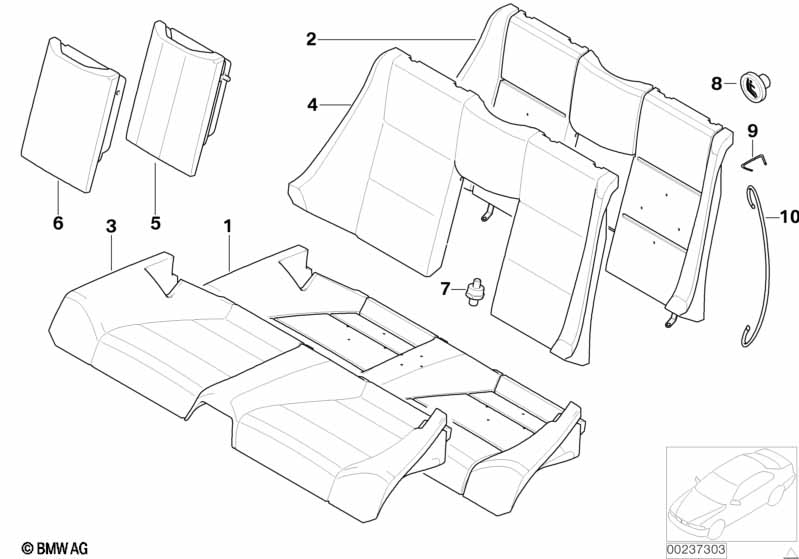

Seat rear, upholstery & cover base seat for BMW 3 Series E46 323Ci (2000)
This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat upholstery | 1 | 52208255021 | $197.49 | Shop at ECS Tuning | |||||
| 02 | Backrest upholstery | 1 | 52208255022 | $217.24 | Shop at ECS Tuning | |||||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 03 | Seat cover leather | SCHWARZ | 1 | 09/2001 | 52208256103 | $1067.75 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric,fl.weave,open rhombus/anthracite |
E8AT=Yes |
|||||||||
| 03 | Seat cover cloth | ANTHRAZIT | 1 | 09/2001 | 52207000579 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 03 | Cloth/leather seat cover | ANTHRAZIT | 1 | 52208255040 | $566.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 03 | Seat cover cloth | ANTHRAZIT | 1 | 52207901332 | $566.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 03 | Seat cover cloth | TECHNOGRAU | 1 | 52207047502 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellgrau |
LMTH=Yes |
|||||||||
| 03 | Seat cover leather | HELLGRAU | 1 | 52207155729 | $1009.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/granatrot |
LMC1=Yes |
|||||||||
| 03 | Seat cover leather | GRANATROT | 1 | 52207155730 | $1009.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 03 | Seat cover vinyl | SCHWARZ | 1 | 52208255052 | $448.07 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 03 | Cloth/leather seat cover | HELLBEIGE | 1 | 09/2001 | 52208256099 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Exclusive leather "futura"/hellbeige 2 |
LMHC=Yes |
|||||||||
| 03 | Seat cover leather | HELLBEIGE | 1 | 52207155728 | $890.01 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 03 | Seat cover leather | SCHWARZ | 1 | 52207048762 | $1076.94 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 03 | Seat cover leather | TANINROT | 1 | 09/2001 | 52208255049 | $887.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 03 | Seat cover leather | SCHWARZ | 1 | 52208255047 | $1067.75 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/traum-rot" |
E4TL=Yes |
|||||||||
| 03 | Cloth/leather seat cover | TRAUMROT | 1 | 52207056884 | $566.37 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 03 | Seat cover cloth | BROMBEER | 1 | 52207047504 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 03 | Seat cover leather | NATURBRAUN | 1 | 52207056886 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 03 | Seat cover leather | LIGHTGELB | 1 | 52207048763 | $1121.58 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 03 | Seat cover leather | BROMBEER | 1 | 52207048764 | $1121.58 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 03 | Seat cover cloth | ANTHRAZIT | 1 | 52207047503 | $293.51 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/gray |
E8TT=Yes |
|||||||||
| 03 | Seat cover cloth | GRAU | 1 | 09/2001 | 52207000580 | $293.51 | +core | Shop at ECS Tuning | ||
| For vehicles with Exclusive leather "futura"/schwarz |
LMSW=Yes |
|||||||||
| 03 | Seat cover leather | SCHWARZ | 1 | 52207155727 | $1009.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 03 | Seat cover leather | LIGHTGELB | 1 | 09/2001 | 52208256102 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 03 | Seat cover leather | GRAU | 1 | 52208255050 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 03 | Seat cover cloth | PEACH | 1 | 09/2001 | 52208256097 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 03 | Seat cover leather | HELLBEIGE | 1 | 09/2001 | 52208256101 | $1009.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 03 | Cloth/leather seat cover | TIEFGRÜN | 1 | 09/2001 | 52208255041 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 03 | Seat cover vinyl | HELLBEIGE | 1 | 52208255053 | $448.07 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 03 | Cloth/leather seat cover | ANTHRAZIT | 1 | 09/2001 | 52207028418 | $566.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 03 | Seat cover leather | HELLBEIGE | 1 | 52208255048 | $957.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 04 | Cover backrest, leather | SCHWARZ | 1 | 09/2001 | 52208256119 | $873.27 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric,fl.weave,open rhombus/anthracite |
E8AT=Yes |
|||||||||
| 04 | Cover backrest cloth | ANTHRAZIT | 1 | 09/2001 | 52207000583 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 04 | Cloth/leather backrest cover | ANTHRAZIT | 1 | 52208255070 | $585.90 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 04 | Cover backrest cloth | ANTHRAZIT | 1 | 52207901340 | $457.56 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 04 | Cover backrest cloth | TECHNOGRAU | 1 | 52207047510 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellgrau |
LMTH=Yes |
|||||||||
| 04 | Cover backrest, leather | HELLGRAU | 1 | 52207155739 | $962.55 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/granatrot |
LMC1=Yes |
|||||||||
| 04 | Cover backrest, leather | GRANATROT | 1 | 52207155740 | $962.55 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 04 | Cover backrest, imitation leather | SCHWARZ | 1 | 52208255082 | $406.85 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 04 | Cloth/leather backrest cover | HELLBEIGE | 1 | 09/2001 | 52208256115 | $585.90 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Exclusive leather "futura"/hellbeige 2 |
LMHC=Yes |
|||||||||
| 04 | Cover backrest, leather | HELLBEIGE | 1 | 52207155738 | $962.55 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 04 | Cover backrest, leather | SCHWARZ | 1 | 52207048770 | $1054.62 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 04 | Cover backrest, leather | TANINROT | 1 | 09/2001 | 52208255080 | $887.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 04 | Cover backrest, leather | SCHWARZ | 1 | 52208255077 | $874.08 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/traum-rot" |
E4TL=Yes |
|||||||||
| 04 | Cloth/leather backrest cover | TRAUMROT | 1 | 52207056902 | $585.90 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 04 | Cover backrest cloth | BROMBEER | 1 | 52207047512 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 04 | Cover backrest, leather | NATURBRAUN | 1 | 52207056904 | $874.08 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/light gelb |
V5LT=Yes |
|||||||||
| 04 | Cover backrest, leather | LIGHTGELB | 1 | 52207048771 | $1054.62 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 04 | Cover backrest, leather | BROMBEER | 1 | 52207048772 | $1054.62 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 04 | Cover backrest cloth | ANTHRAZIT | 1 | 52207047511 | $293.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/gray |
E8TT=Yes |
|||||||||
| 04 | Cover backrest cloth | GRAU | 1 | 09/2001 | 52207000584 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Exclusive leather "futura"/schwarz |
LMSW=Yes |
|||||||||
| 04 | Cover backrest, leather | SCHWARZ | 1 | 52207155737 | $962.55 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 04 | Cover backrest, leather | LIGHTGELB | 1 | 09/2001 | 52208256118 | $873.27 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 04 | Cover backrest, leather | GRAU | 1 | 52208255078 | $874.08 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 04 | Cover backrest cloth | PEACH | 1 | 09/2001 | 52208256113 | $293.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 04 | Cover backrest, leather | HELLBEIGE | 1 | 09/2001 | 52208256117 | $873.27 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 04 | Cloth/leather backrest cover | TIEFGRÜN | 1 | 09/2001 | 52208255071 | $585.90 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 04 | Cover backrest, imitation leather | HELLBEIGE | 1 | 52208255083 | $406.85 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 04 | Cloth/leather backrest cover | ANTHRAZIT | 1 | 09/2001 | 52207028414 | $585.90 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 04 | Cover backrest, leather | HELLBEIGE | 1 | 52208255079 | $874.08 | ENDED | Shop at ECS Tuning | |||
| 05 | Filling insert for armrest non covered | 1 | 52208255023 | $76.33 | Shop at ECS Tuning | |||||
| For vehicles with Fabric,fl.weave,open rhombus/anthracite |
E8AT=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | ANTHRAZIT | 1 | 09/2001 | 52207000581 | $87.89 | +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | ANTHRAZIT | 1 | 52208255055 | $167.40 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | ANTHRAZIT | 1 | 52207901336 | $119.15 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | TECHNOGRAU | 1 | 52207047506 | $87.89 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellgrau |
LMTH=Yes |
|||||||||
| 06 | Cover insert leather | HELLGRAU | 1 | 52207155734 | $177.44 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/granatrot |
LMC1=Yes |
|||||||||
| 06 | Cover insert leather | GRANATROT | 1 | 52207155735 | $177.44 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | SCHWARZ | 1 | 52208255067 | $119.15 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellbeige 2 |
LMHC=Yes |
|||||||||
| 06 | Cover insert leather | HELLBEIGE | 1 | 52207155733 | $177.44 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | TANINROT | 1 | 52208255064 | $249.98 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | SCHWARZ | 1 | 52208255062 | $257.95 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather "Gran Turismo/traum-rot" |
E4TL=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | TRAUMROT | 1 | 52207056888 | $139.50 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | BROMBEER | 1 | 52207047508 | $87.89 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | NATURBRAUN | 1 | 52207056890 | $257.95 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather High/brombeer |
V5BB=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | BROMBEER | 1 | 52207055143 | $132.80 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | ANTHRAZIT | 1 | 52207047507 | $87.89 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/gray |
E8TT=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | GRAU | 1 | 09/2001 | 52207000582 | $87.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Exclusive leather "futura"/schwarz |
LMSW=Yes |
|||||||||
| 06 | Cover insert leather | SCHWARZ | 1 | 52207155732 | $177.44 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | GRAU | 1 | 52208255065 | $257.95 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Finolino"/anthrazit |
GBAT=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | ANTHRAZIT | 1 | 52207156442 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | PEACH | 1 | 09/2001 | 52208256105 | $87.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | HELLBEIGE | 1 | 52208256109 | $249.98 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | TIEFGRÜN | 1 | 52208255056 | $167.40 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | HELLBEIGE | 1 | 52208255068 | $119.15 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | ANTHRAZIT | 1 | 09/2001 | 52207028416 | $186.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/lightgelb or Leather High/light gelb |
Q9LT=Yes V5LT=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | LIGHTGELB | 1 | 52208256110 | $249.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/black or Leather High/black |
Q9SW=Yes V5SW=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | SCHWARZ | 1 | 52208256111 | $249.98 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 or Leather Montana/basic equip/hell-beige 2 |
E9HC=Yes N6HC=Yes |
|||||||||
| 06 | Cover, filling insert, armrest | HELLBEIGE | 1 | 52208255063 | $198.59 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Pin | 1 | 52207009094 | $6.08 | Shop at ECS Tuning | |||||
| 09 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323Ci Seat rear, upholstery & cover base seat?
- This technical diagram illustrates the Seat rear, upholstery & cover base seat within the Seats group for the 3 Series E46 323Ci produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Seat upholstery (Part #52208255021).
- Which models use the hardware listed in this Seat rear, upholstery & cover base seat?
- The hardware and components featured in the Seat rear, upholstery & cover base seat are specific to the 3 Series E46 323Ci produced during 2000. These technical specifications ensure that parts like the Seat upholstery (52208255021) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat rear, upholstery & cover base seat assembly?
- Each item in the Seat rear, upholstery & cover base seat corresponds to the numbered list below the illustration. For the 3 Series E46 323Ci, you can identify the Seat upholstery by locating its position on the schematic, which then links to the official BMW part number 52208255021 for the Seats section.
