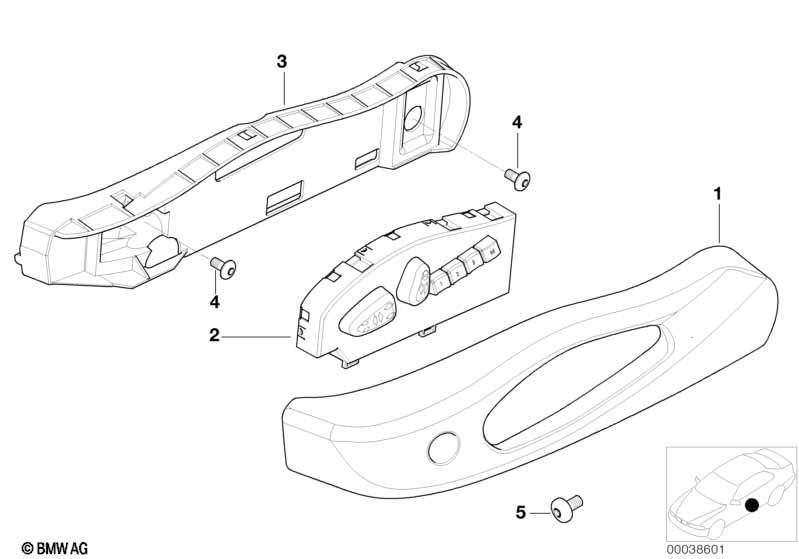

Single parts of front seat controls for BMW 3 Series E46 323Ci (2000)
This Single parts of front seat controls technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports seat |
S481A=No |
||||||||
| 01 | Covering outer left | SCHWARZ | 1 | 52108255657 | $13.55 | Shop at ECS Tuning | ||||
| 01 | Covering outer right | SCHWARZ | 1 | 52108255658 | $13.55 | Shop at ECS Tuning | ||||
| 01 | Covering outer left | GRAU | 1 | 52108255659 | $13.55 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering outer right | GRAU | 1 | 52108255660 | $13.55 | Shop at ECS Tuning | ||||
| 01 | Covering outer left | HELLBEIGE | 1 | 52108255661 | $13.71 | Shop at ECS Tuning | ||||
| 01 | Covering outer right | HELLBEIGE | 1 | 52108255662 | $13.71 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory ONLY APPLIES TO DRIVER'S SIDE |
S459A=Yes |
|||||||||
| 02 | Actuation unit left | 1 | 52108255377 | $138.21 | Shop at ECS Tuning | |||||
| 02 | Actuation unit right | 1 | 52108255378 | $138.21 | Shop at ECS Tuning | |||||
| For vehicles with Electr. front seat adjustment |
S458A=Yes |
|||||||||
| 02 | Actuation unit left | 1 | 52108255379 | $138.21 | Shop at ECS Tuning | |||||
| 02 | Actuation unit right | 1 | 52108255380 | $138.21 | Shop at ECS Tuning | |||||
| 03 | Support f left seat adjustment | 1 | 52108267437 | $25.86 | Shop at ECS Tuning | |||||
| 03 | Support f right seat adjustment | 1 | 52108267438 | $25.86 | Shop at ECS Tuning | |||||
| 04 | Torx screw | M6X20 T30 | 2 | 07149168393 | $1.02 | Shop at ECS Tuning | ||||
| 05 | Screw | M5X6 T20 | 2 | 52108099043 | $0.46 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
