Front seat backrest unlocking for BMW 3 Series E46 318Ci (2003)

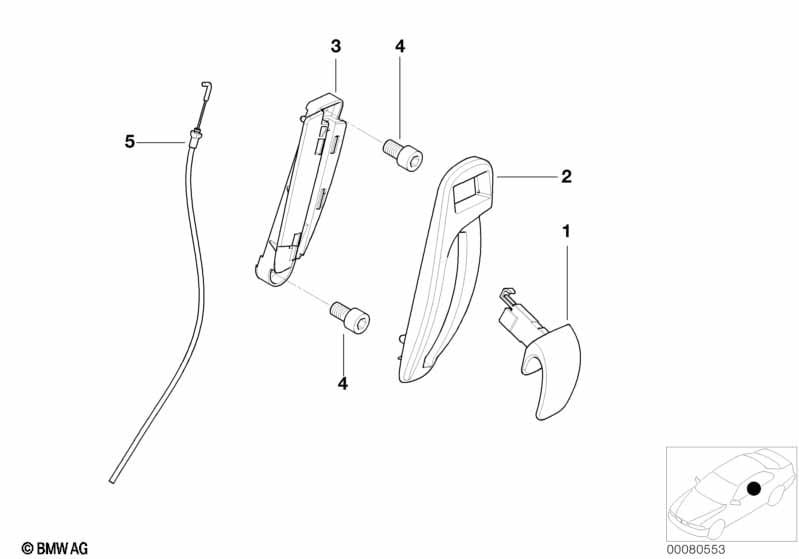

This Front seat backrest unlocking technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Front seat backrest unlocking
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lever outer left SCHWARZ 1 52108267507 $6.11 Shop at ECS Tuning
01 Lever outer right SCHWARZ 1 52108267508 $6.11 Shop at ECS Tuning
02 Covering outer left SCHWARZ 1 52108267501 $12.27 Shop at ECS Tuning
02 Covering outer right SCHWARZ 1 52108267502 $12.27 Shop at ECS Tuning
02 Covering outer left GRAU 1 52108267503 $12.27 Shop at ECS Tuning
02 Covering outer right GRAU 1 52108267504 $12.27 Shop at ECS Tuning
02 Covering outer left HELLBEIGE 1 52108267505 $12.27 Shop at ECS Tuning
02 Covering outer right HELLBEIGE 1 52108267506 $12.27 Shop at ECS Tuning
03 Frame left SCHWARZ 1 52108259663 $6.52 Shop at ECS Tuning
03 Frame right SCHWARZ 1 52108259664 $6.52 Shop at ECS Tuning
04 Fillister-head screw 2 51108238067 $0.39 Shop at ECS Tuning
05 Bowden cable left 1 52107035849 $115.71 Shop at ECS Tuning
05 Bowden cable right 1 52107035850 $115.71 Shop at ECS Tuning
