Seat, front, head restraint, Sport seat for BMW 3 Series E46 330Cd (2006)

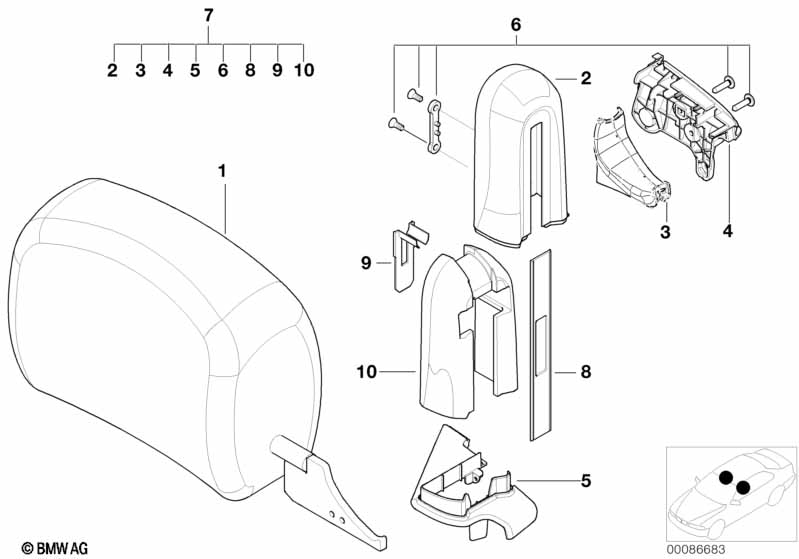

This Seat, front, head restraint, Sport seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 01 | headrest leather left | NATURBRAUN | 1 | 52107056812 | $213.25 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | headrest leather right | NATURBRAUN | 1 | 52107056813 | $213.25 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 01 | Head rest cloth left | BROMBEER | 1 | 52107047115 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Head rest cloth right | BROMBEER | 1 | 52107047116 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/schwarz |
LMSW=Yes |
|||||||||
| 01 | headrest leather left | SCHWARZ | 1 | 52107155571 | $249.98 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather right | SCHWARZ | 1 | 52107155572 | $249.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 01 | Head rest cloth left | TECHNOGRAU | 1 | 52107047111 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Head rest cloth right | TECHNOGRAU | 1 | 52107047112 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/granatrot |
LMC1=Yes |
|||||||||
| 01 | headrest leather left | GRANATROT | 1 | 52107155577 | $249.98 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather right | GRANATROT | 1 | 52107155578 | $249.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellgrau |
LMTH=Yes |
|||||||||
| 01 | headrest leather left | HELLGRAU | 1 | 52107155575 | $249.98 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather right | HELLGRAU | 1 | 52107155576 | $249.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Exclusive leather "futura"/hellbeige 2 |
LMHC=Yes |
|||||||||
| 01 | headrest leather left | HELLBEIGE | 1 | 52107155573 | $249.98 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather right | HELLBEIGE | 1 | 52107155574 | $249.98 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 01 | Head rest cloth left | ANTHRAZIT | 1 | 52107047113 | $132.20 | +core | Shop at ECS Tuning | |||
| 01 | Head rest cloth right | ANTHRAZIT | 1 | 52107047114 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 01 | headrest leather left | HELLBEIGE | 1 | 52108255629 | $213.25 | ENDED | Shop at ECS Tuning | |||
| 01 | headrest leather right | HELLBEIGE | 1 | 52108255630 | $213.25 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 01 | headrest leather left | GRAU | 1 | 52108255627 | $213.25 | Shop at ECS Tuning | ||||
| 01 | headrest leather right | GRAU | 1 | 52108255628 | $213.25 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 01 | Head rest cloth left | ANTHRAZIT | 1 | 52108255611 | $158.47 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest cloth right | ANTHRAZIT | 1 | 52108255612 | $158.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 01 | Head rest cloth left | ANTHRAZIT | 1 | 52107901381 | $152.89 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest cloth right | ANTHRAZIT | 1 | 52107901382 | $152.89 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 01 | headrest leather left | SCHWARZ | 1 | 52108255625 | $213.25 | Shop at ECS Tuning | ||||
| 01 | headrest leather right | SCHWARZ | 1 | 52108255626 | $213.25 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather "Gran Turismo/traum-rot" |
E4TL=Yes |
|||||||||
| 01 | Head rest cloth left | TRAUMROT | 1 | 52107056733 | $158.47 | ENDED | Shop at ECS Tuning | |||
| 01 | Head rest cloth right | TRAUMROT | 1 | 52107056734 | $158.47 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover, headrest left | SCHWARZ | 1 | 52107003543 | $26.60 | Shop at ECS Tuning | ||||
| 02 | Cover, headrest right | SCHWARZ | 1 | 52107003544 | $26.60 | Shop at ECS Tuning | ||||
| 02 | Cover, headrest left | GRAU | 1 | 52107003545 | $26.60 | Shop at ECS Tuning | ||||
| 02 | Cover, headrest right | GRAU | 1 | 52107003546 | $26.60 | Shop at ECS Tuning | ||||
| 02 | Cover, headrest left | HELLBEIGE | 1 | 52107003547 | $26.60 | Shop at ECS Tuning | ||||
| 02 | Cover, headrest right | HELLBEIGE | 1 | 52107003548 | $26.60 | Shop at ECS Tuning | ||||
| 03 | Covering rear | SCHWARZ | 1 | 52108267430 | $2.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Covering front | SCHWARZ | 1 | 52108267426 | $2.24 | Shop at ECS Tuning | ||||
| 03 | Covering front | SCHWARZ | 1 | 52108267426 | $2.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Covering rear | SCHWARZ | 1 | 52108267430 | $2.24 | Shop at ECS Tuning | ||||
| 04 | Cover, belt guide, left | 1 | 52107011773 | $8.85 | Shop at ECS Tuning | |||||
| 04 | Cover, belt guide, right | 1 | 52107011774 | $8.85 | Shop at ECS Tuning | |||||
| 05 | Covering outer left | SCHWARZ | 1 | 52108267419 | $16.72 | Shop at ECS Tuning | ||||
| 05 | Covering outer right | SCHWARZ | 1 | 52108267420 | $16.72 | Shop at ECS Tuning | ||||
| 05 | Covering outer left | GRAU | 1 | 52108267421 | $16.72 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering outer right | GRAU | 1 | 52108267422 | $16.72 | Shop at ECS Tuning | ||||
| 05 | Covering outer left | HELLBEIGE | 1 | 52108267423 | $16.72 | Shop at ECS Tuning | ||||
| 05 | Covering outer right | HELLBEIGE | 1 | 52108267424 | $16.72 | Shop at ECS Tuning | ||||
| 06 | Set of fittings f headrest cover | 2 | 52108267524 | $3.93 | Shop at ECS Tuning | |||||
| 07 | Cover, headrest left | LIGHTGELB | 1 | 52107025603 | $53.57 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover, headrest right | LIGHTGELB | 1 | 52107025604 | $53.57 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover, headrest left | SCHWARZ | 1 | 52108255351 | $64.14 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover, headrest right | SCHWARZ | 1 | 52108255352 | $64.14 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover, headrest left | GRAU | 1 | 52108255353 | $64.14 | Shop at ECS Tuning | ||||
| 07 | Cover, headrest right | GRAU | 1 | 52108255354 | $64.14 | Shop at ECS Tuning | ||||
| 07 | Cover, headrest left | HELLBEIGE | 1 | 52108255355 | $64.14 | Shop at ECS Tuning | ||||
| 07 | Cover, headrest right | HELLBEIGE | 1 | 52108255356 | $64.14 | Shop at ECS Tuning | ||||
| 08 | Slider | AUSSEN | 1 | 52107050680 | $2.66 | Shop at ECS Tuning | ||||
| 09 | Slider | INNEN | 1 | 52107050681 | $2.66 | Shop at ECS Tuning | ||||
| 10 | Front foam plastic part | LINKS | 1 | 52107050678 | $6.52 | Shop at ECS Tuning | ||||
| 10 | Front foam plastic part | RECHTS | 1 | 52107050679 | $6.52 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
