Front seat rail for BMW 3 Series E46 328Ci (2000)

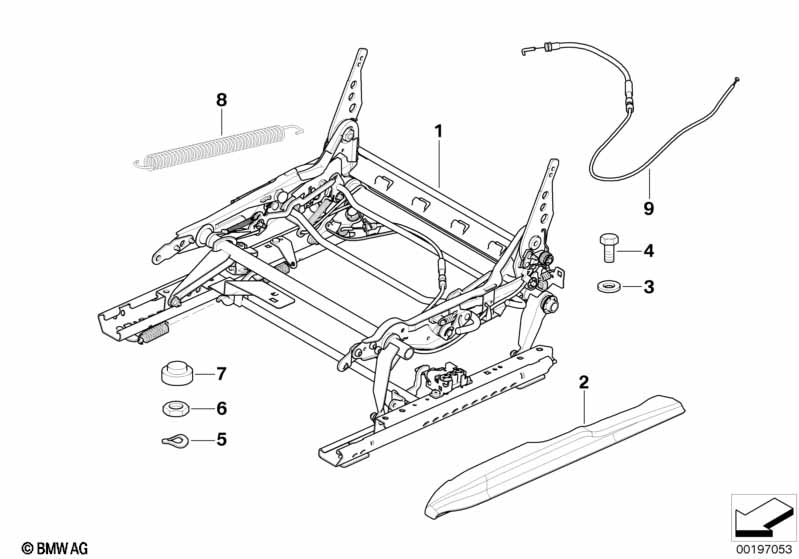

This Front seat rail technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | seat mechanism left | 1 | 52108242811 | $324.12 | ENDED | Shop at ECS Tuning | ||||
| 01 | seat mechanism right | 1 | 52108242812 | $324.12 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering seat rail left | SCHWARZ | 1 | 52108248211 | $5.40 | Shop at ECS Tuning | ||||
| 02 | Covering seat rail right | SCHWARZ | 1 | 52108248212 | $5.40 | Shop at ECS Tuning | ||||
| 03 | Washer | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10 | 4 | 52108211438 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B10-ZNS3 | 4 | 01/2006 | 07119904463 | Shop at ECS Tuning | ||||
| 05 | Washer | D=10MM | 4 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Hex nut with ribs | M10 | 4 | 07149156956 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Covering cap | 4 | 52108119867 | $0.21 | Shop at ECS Tuning | |||||
| 08 | spring, backrest adjustment | 2 | 52108251439 | $5.07 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bowden cable, Easy Entry, left | 1 | 52107181115 | +core | Shop at ECS Tuning | |||||
| 09 | Bowden cable, Easy Entry, right | 1 | 52107181116 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
