Seat, front, lumbar for BMW 5 Series E39 525i (2003)

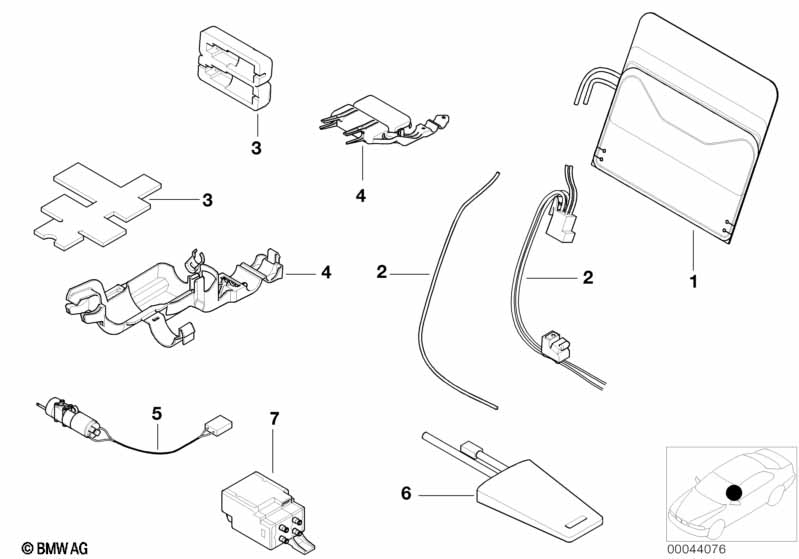

This Seat, front, lumbar technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lordosis pad | 2 | 52108170562 | $37.83 | Shop at ECS Tuning | |||||
| For vehicles with Seat adustment, mecanical |
=Yes |
|||||||||
| 02 | Air hose | 200MM | 2 | 52107008512 | $13.86 | Shop at ECS Tuning | ||||
| For vehicles with Electr. front seat adjustment or Seat adjuster, electric, with memory |
S458A=Yes S459A=Yes |
|||||||||
| 02 | Air hose | 200MM | 2 | 52107008512 | $13.86 | Shop at ECS Tuning | ||||
| 02 | Air hose | 600MM | 2 | 52107008514 | $11.48 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 03 | Sound insulation | 2 | 52108248237 | $1.54 | Shop at ECS Tuning | |||||
| 04 | Holder | 2 | 52108242781 | $6.18 | Shop at ECS Tuning | |||||
| 05 | Drive unit lordosis pad | 2 | 67668378948 | $86.25 | Shop at ECS Tuning | |||||
| For vehicles with Seat adustment, mecanical |
=Yes |
|||||||||
| 06 | Drive unit lordosis pad | 2 | 52107008513 | $118.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | Valve unit | 2 | 67668385632 | $86.25 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 07 | Valve unit | 2 | 67668385632 | $86.25 | Shop at ECS Tuning | |||||
