Seat rear, upholstery & cover base seat for BMW 3 Series E46 330i (2001)

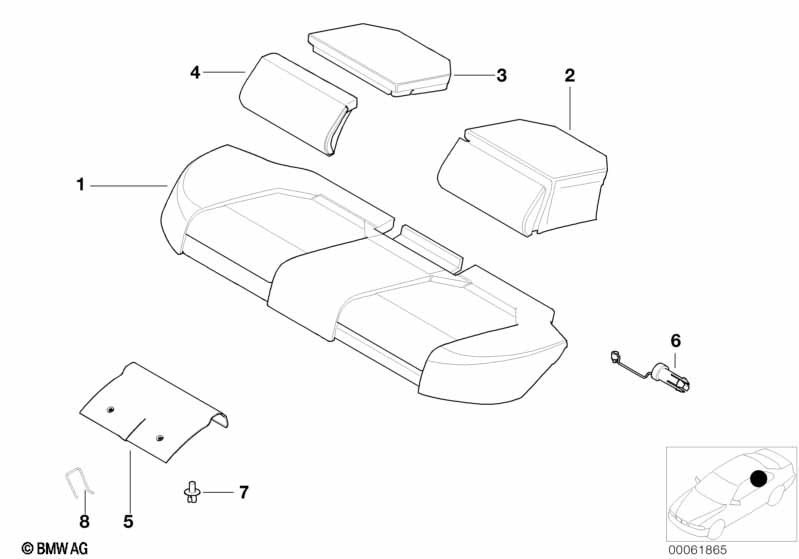

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Integrated child seats |
S469A=Yes |
||||||||
| For vehicles with Integrated child seats and Imitation leather/black |
S469A=Yes K4SW=Yes |
|||||||||
| 01 | Seat upholstery | SCHWARZ | 1 | 09/2001 | 52237027610 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth flock "Raute"/anthracite |
S469A=Yes E3AT=Yes |
|||||||||
| 01 | Seat upholstery | ANTHRAZIT | 1 | 09/2001 | 52237027597 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Leather Montana/basic equip/schwarz |
S469A=Yes N6SW=Yes |
|||||||||
| 01 | Seat upholstery | SCHWARZ | 1 | 09/2001 | 52237027605 | $1339.20 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Integrated child seats and Cloth flock "Raute"/grey |
S469A=Yes E3TT=Yes |
|||||||||
| 01 | Seat upholstery | GRAU | 1 | 09/2001 | 52237027598 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth "Laser"/anthracite |
S469A=Yes G7AT=Yes |
|||||||||
| 01 | Seat upholstery | ANTHRAZIT | 1 | 09/2001 | 52237027613 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Leather Montana/basic equip/hell-beige 2 |
S469A=Yes N6HC=Yes |
|||||||||
| 01 | Seat upholstery | HELLBEIGE | 1 | 09/2001 | 52237027607 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth flock "Raute"/navy blue |
S469A=Yes E3DL=Yes |
|||||||||
| 01 | Seat upholstery | MARINEBLAU | 1 | 09/2001 | 52237027599 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Leather Montana/basic equip/taninrot |
S469A=Yes N6TD=Yes |
|||||||||
| 01 | Seat upholstery | TANINROT | 1 | 09/2001 | 52237027608 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Vinyl light beige 2 |
S469A=Yes K4HC=Yes |
|||||||||
| 01 | Seat upholstery | HELLBEIGE | 1 | 09/2001 | 52237027611 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth flock "Raute"/mint-green |
S469A=Yes E3AP=Yes |
|||||||||
| 01 | Seat upholstery | MINTGRÜN | 1 | 09/2001 | 52237027600 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Leather Montana/basic equip/grau |
S469A=Yes N6TT=Yes |
|||||||||
| 01 | Seat upholstery | GRAU | 1 | 09/2001 | 52237027606 | $1339.20 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Integrated child seats and Fabric/leather "Gran Turismo/tief-grün" |
S469A=Yes E4GG=Yes |
|||||||||
| 01 | Seat upholstery | TIEFGRÜN | 1 | 09/2001 | 52237027603 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth/leather "Gran Turismo"/anthracite |
S469A=Yes E4AT=Yes |
|||||||||
| 01 | Seat upholstery | ANTHRAZIT | 1 | 09/2001 | 52237027602 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Imitation leather/black |
S469A=Yes K4SW=Yes |
|||||||||
| 02 | Child seat cover, imitation leather | SCHWARZ | 2 | 09/2001 | 52238267933 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth flock "Raute"/anthracite |
S469A=Yes E3AT=Yes |
|||||||||
| 02 | Child seat cover in cloth | ANTHRAZIT | 2 | 09/2001 | 52238228112 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Leather Montana/basic equip/schwarz |
S469A=Yes N6SW=Yes |
|||||||||
| 02 | Child seat cover in leather | SCHWARZ | 2 | 09/2001 | 52238228125 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth flock "Raute"/grey |
S469A=Yes E3TT=Yes |
|||||||||
| 02 | Child seat cover in cloth | GRAU | 2 | 09/2001 | 52238228115 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth "Laser"/anthracite |
S469A=Yes G7AT=Yes |
|||||||||
| 02 | Child seat cover in cloth | ANTHRAZIT | 2 | 09/2001 | 52237830179 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Leather Montana/basic equip/hell-beige 2 |
S469A=Yes N6HC=Yes |
|||||||||
| 02 | Child seat cover in leather | HELLBEIGE | 2 | 09/2001 | 52238228126 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth flock "Raute"/navy blue |
S469A=Yes E3DL=Yes |
|||||||||
| 02 | Child seat cover in cloth | MARINEBLAU | 2 | 09/2001 | 52238228114 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Leather Montana/basic equip/taninrot |
S469A=Yes N6TD=Yes |
|||||||||
| 02 | Child seat cover in leather | TANINROT | 2 | 09/2001 | 52238228127 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Child seat cover in leather | GRAU | 2 | 09/2001 | 52238228128 | $385.02 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Integrated child seats and Vinyl light beige 2 |
S469A=Yes K4HC=Yes |
|||||||||
| 02 | Child seat cover, imitation leather | HELLBEIGE | 2 | 09/2001 | 52238267934 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth flock "Raute"/mint-green |
S469A=Yes E3AP=Yes |
|||||||||
| 02 | Child seat cover in cloth | MINTGRÜN | 2 | 09/2001 | 52238228113 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Fabric/leather "Gran Turismo/tief-grün" |
S469A=Yes E4GG=Yes |
|||||||||
| 02 | Child seat cover in cloth | TIEFGRÜN | 2 | 09/2001 | 52238228118 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats and Cloth/leather "Gran Turismo"/anthracite |
S469A=Yes E4AT=Yes |
|||||||||
| 02 | Child seat cover in cloth | ANTHRAZIT | 2 | 09/2001 | 52238228117 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Integrated child seats |
S469A=Yes |
|||||||||
| 03 | Child seat upholstery | MECHANIK | 2 | 09/2001 | 52238099515 | ENDED | Shop at ECS Tuning | |||
| 04 | Front foam plastic part | 2 | 09/2001 | 52237009415 | ENDED | Shop at ECS Tuning | ||||
| 05 | Seat center part cover | SCHWARZ | 2 | 09/2001 | 52237003320 | ENDED | Shop at ECS Tuning | |||
| 05 | Seat center part cover | GRAU | 2 | 09/2001 | 52237003321 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Seat center part cover | HELLBEIGE | 2 | 09/2001 | 52237003322 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Securing pin | 2 | 09/2001 | 52237004728 | ENDED | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | SANDGRAU | 4 | 09/2001 | 51118196346 | $0.43 | Shop at ECS Tuning | |||
| 07 | Expanding rivet | GRAU | 4 | 09/2001 | 51118203506 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | BEIGE | 4 | 09/2001 | 51118203508 | Shop at ECS Tuning | ||||
| 08 | Locking spring | 2 | 09/2001 | 52238260269 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
