Front seat backrest frame/rear panel for BMW 7 Series E38 735i (2001)

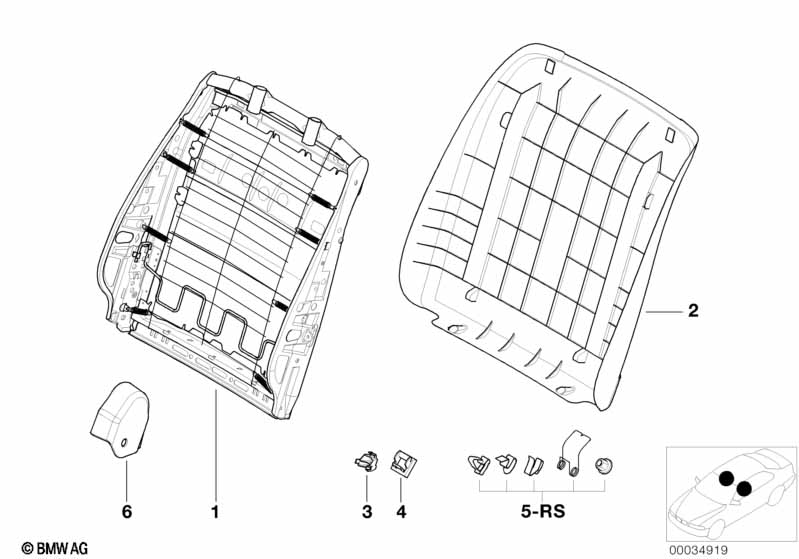

This Front seat backrest frame/rear panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports seat |
S481A=Yes |
||||||||
| FOR ALL VERSIONS |
||||||||||
| 01 | Backrest frame | 2 | 09/1998 | 52108261081 | $93.85 | Shop at ECS Tuning | ||||
| Version with bag | ||||||||||
| 02 | Vinyl rear panel | SCHWARZ | 2 | 09/1998 | 52107000926 | $105.13 | ENDED | Shop at ECS Tuning | ||
| 02 | Vinyl rear panel | GRAU | 2 | 09/1998 | 52107000927 | $105.13 | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | SANDBEIGE | 2 | 09/1998 | 52107000930 | $105.13 | ENDED | Shop at ECS Tuning | ||
| 03 | Repair kit clamps | 4 | 09/1998 | 52107240386 | Shop at ECS Tuning | |||||
| 04 | Clip | 4 | 09/1998 | 52108175054 | $2.29 | Shop at ECS Tuning | ||||
| 05 | Mounting parts set | 1 | 09/1998 | 52108197043 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cap left | SCHWARZ | 1 | 01/1999 | 52102699669 | $5.19 | ENDED | Shop at ECS Tuning | ||
| 06 | Cap right | SCHWARZ | 1 | 01/1999 | 52102699670 | $5.19 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
