Front seat backrest frame for BMW 3 Series E46 318Ci (2003)

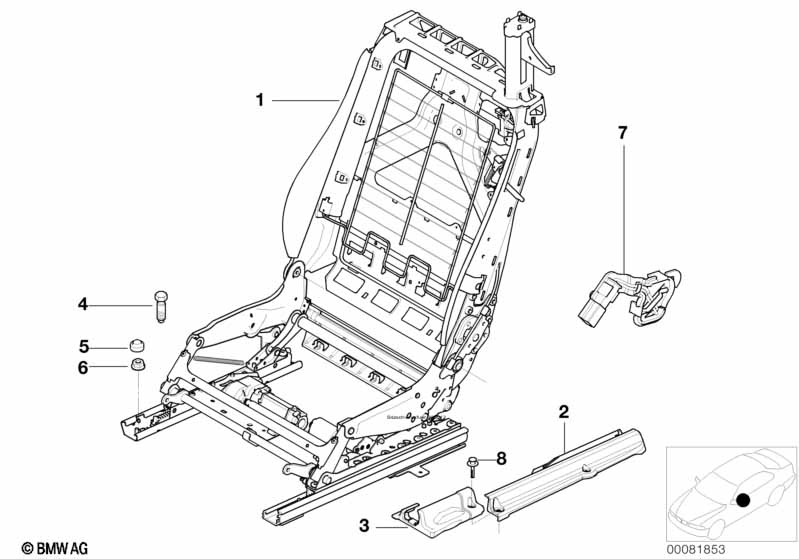

This Front seat backrest frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat backrest frame left | 1 | 07/2006 | 52107069277 | $1421.08 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Connecting elements | 1 | 07/2006 | 52106971285 | $1.09 | Shop at ECS Tuning | ||||
| -- | Connecting elements | 1 | 07/2006 | 52107011734 | $1.14 | Shop at ECS Tuning | ||||
| 01 | Seat backrest frame right | 1 | 07/2006 | 52107069278 | $1421.08 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Connecting elements | 1 | 07/2006 | 52106971285 | $1.09 | Shop at ECS Tuning | ||||
| -- | Connecting elements | 1 | 07/2006 | 52107011734 | $1.14 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Seat backrest frame left | 1 | 07/2006 | 52107069275 | $1537.89 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Connecting elements | 1 | 07/2006 | 52106971285 | $1.09 | Shop at ECS Tuning | ||||
| -- | Connecting elements | 1 | 07/2006 | 52107011734 | $1.14 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Seat backrest frame left | 1 | 07/2006 | 52107008535 | $1635.24 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Seat backrest frame right | 1 | 07/2006 | 52107008536 | $1635.24 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Connecting elements | 1 | 07/2006 | 52106971285 | $1.09 | Shop at ECS Tuning | ||||
| -- | Connecting elements | 1 | 07/2006 | 52107011734 | $1.14 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat |
S459A=Yes S481A=Yes |
|||||||||
| 01 | Seat backrest frame left | 1 | 07/2006 | 52107008533 | $1732.56 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Connecting elements | 1 | 07/2006 | 52106971285 | $1.09 | Shop at ECS Tuning | ||||
| -- | Connecting elements | 1 | 07/2006 | 52107011734 | $1.14 | Shop at ECS Tuning | ||||
| 02 | Covering rear left | SCHWARZ | 1 | 52108270023 | $5.60 | Shop at ECS Tuning | ||||
| 02 | Covering rear right | SCHWARZ | 1 | 52108270024 | $5.60 | Shop at ECS Tuning | ||||
| 03 | Covering front left | SCHWARZ | 1 | 52108270017 | $5.60 | Shop at ECS Tuning | ||||
| 03 | Covering front right | SCHWARZ | 1 | 52108270018 | $5.60 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10 | 3 | 52108211438 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Covering cap | 2 | 52108119867 | $0.21 | Shop at ECS Tuning | |||||
| 06 | Hex nut with ribs | M10 | 2 | 07149156956 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Micro switch left | 1 | 52107025193 | $59.69 | Shop at ECS Tuning | |||||
| 07 | Micro switch right | 1 | 52107025194 | $59.69 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | 3 | 51488353567 | $0.63 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
