Seat, front, complete seat for BMW 3 Series E46 M3 (2003)

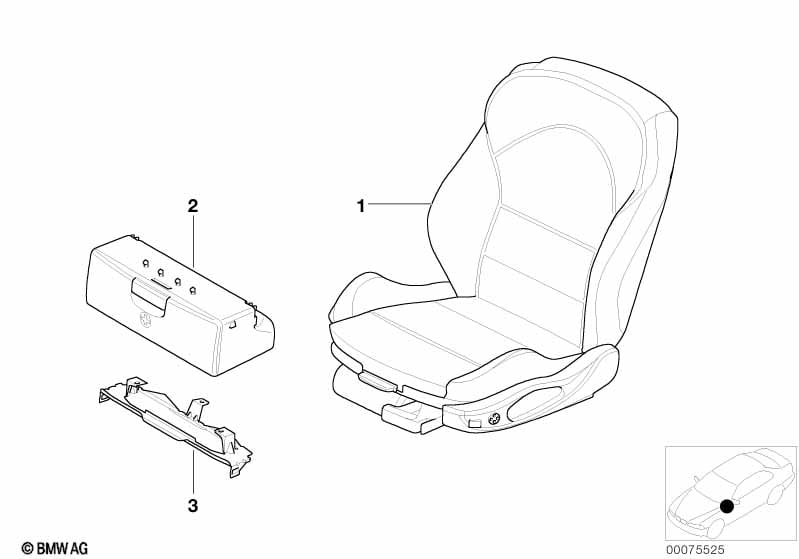

This Seat, front, complete seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Impuls"/anthracite |
G8AT=Yes |
|||||||||
| 01 | Seat ruche leather front right | ANTHRAZIT | 1 | 52100392772 | $4185.00 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Walknappa/black |
N5SW=Yes |
|||||||||
| 01 | Seat ruche leather front right | SCHWARZ | 1 | 52100142744 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Walknappa/imola-red |
N5IM=Yes |
|||||||||
| 01 | Seat ruche leather front right | IMOLAROT | 1 | 52100392406 | $4185.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Leather Walknappa/imola-red |
S459A=Yes N5IM=Yes |
|||||||||
| 01 | Seat leather front left | IMOLAROT | 1 | 52100392397 | $4385.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Cloth "Impuls"/anthracite |
S459A=Yes G8AT=Yes |
|||||||||
| 01 | Seat leather front left | ANTHRAZIT | 1 | 52100392773 | $4097.19 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Adjuster, backrest width and Leather, Walknappa/gray |
S490A=Yes N5TT=Yes |
|||||||||
| 01 | Seat ruche leather front right | GRAU | 1 | 52100148182 | $4185.00 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Adjuster, backrest width and Leather Walknappa/imola-red |
S490A=Yes N5IM=Yes |
|||||||||
| 01 | Seat ruche leather front right | IMOLAROT | 1 | 52100140636 | $4185.00 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Leather Walknappa/black |
S459A=Yes N5SW=Yes |
|||||||||
| 01 | Seat leather front left | SCHWARZ | 1 | 52100142743 | $4197.55 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Adjuster, backrest width and Leather Walknappa/black |
S490A=Yes N5SW=Yes |
|||||||||
| 01 | Seat ruche leather front right | SCHWARZ | 1 | 52100140590 | $3996.81 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Adjuster, backrest width and Leather Walknappa kiwi |
S490A=Yes N5OV=Yes |
|||||||||
| 01 | Seat ruche leather front right | KIWI | 1 | 52100143638 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Adjuster, backrest width and Leather M-texture/Alcantara/anthrazit |
S490A=Yes F2AT=Yes |
|||||||||
| 01 | Seat cloth/leather front right | ANTHRAZIT | 1 | 52100138870 | $2829.06 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Adjuster, backrest width and Leather, Walknappa/gray |
S459A=Yes S490A=Yes N5TT=Yes |
|||||||||
| 01 | Seat leather front left | GRAU | 1 | 52100148181 | $4385.88 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Adjuster, backrest width and Leather Walknappa/imola-red |
S459A=Yes S490A=Yes N5IM=Yes |
|||||||||
| 01 | Seat leather front left | IMOLAROT | 1 | 52100140635 | $4385.88 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Adjuster, backrest width and Leather M-texture/Alcantara/anthrazit |
S459A=Yes S490A=Yes F2AT=Yes |
|||||||||
| 01 | Seat cloth/leather front left | ANTHRAZIT | 1 | 52100138871 | $3522.30 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Adjuster, backrest width and Leather Walknappa/black |
S459A=Yes S490A=Yes N5SW=Yes |
|||||||||
| 01 | Seat leather front left | SCHWARZ | 1 | 52100140591 | $4097.19 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Adjuster, backrest width and Leather Walknappa kiwi |
S459A=Yes S490A=Yes N5OV=Yes |
|||||||||
| 01 | Seat leather front left | KIWI | 1 | 52100143637 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | First aid box empty | 1 | 52107044958 | $23.19 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket first aid box | 1 | 52107045018 | $8.91 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
