Seat rear, center armrest, multifunction for BMW 3 Series E46 325i (2001)

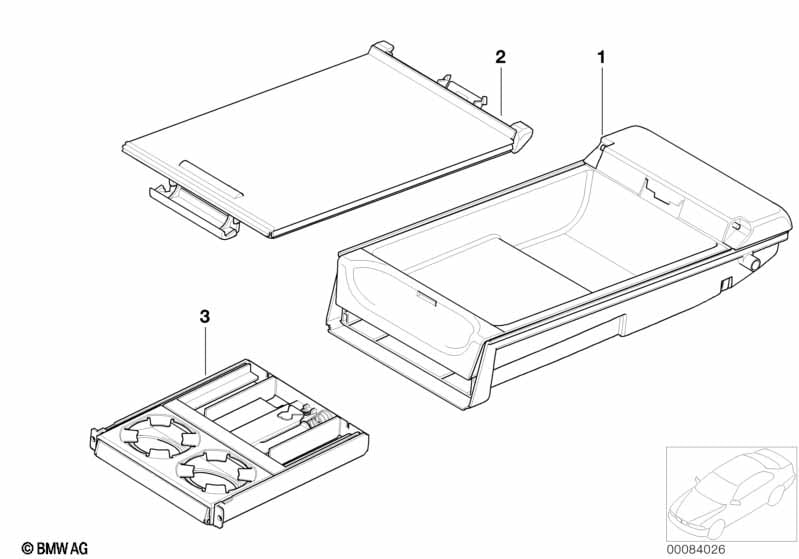

This Seat rear, center armrest, multifunction technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 01 | Armrest lower cloth | PEACH | 1 | 09/2001 | 52207041804 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 01 | Armrest lower cloth | BROMBEER | 1 | 52207047383 | $316.94 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 01 | Armrest lower leather | HELLBEIGE | 1 | 52207041792 | $457.04 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 01 | Armrest lower cloth | ANTHRAZIT | 1 | 09/2001 | 52207041781 | $316.94 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 01 | Armrest lower leather | TIEFGRÜN | 1 | 09/2001 | 52207041787 | $429.66 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 01 | Armrest lower cloth | ANTHRAZIT | 1 | 52207041800 | $460.91 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 01 | Armrest lower cloth | GRAU | 1 | 09/2001 | 52207041784 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 01 | Armrest lower cloth | ANTHRAZIT | 1 | 52207047382 | $316.94 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 01 | Armrest lower leather | GRAU | 1 | 52207041794 | $457.04 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 01 | Armrest lower leather | TANINROT | 1 | 09/2001 | 52207041793 | $460.91 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 01 | Armrest lower cloth | LAVENDEL | 1 | 09/2001 | 52207041789 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 01 | Armrest lower leather | SCHWARZ | 1 | 52207041791 | $460.91 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 01 | Armrest lower leather | ANTHRAZIT | 1 | 52207041802 | $460.91 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 01 | Armrest lower leather | NATURBRAUN | 1 | 52207057356 | $457.04 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric Tex 2000/techno-grau |
J1TF=Yes |
|||||||||
| 01 | Armrest upper cloth | J1TF TECHNOGRAU | 1 | 52207047385 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 01 | Armrest lower cloth | MINTGRÜN | 1 | 09/2001 | 52207041782 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 01 | Armrest lower leather | ANTHRAZIT | 1 | 52207041786 | $429.66 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 01 | Armrest lower leather | LIGHTGELB | 1 | 09/2001 | 52207041798 | $627.75 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 01 | Armrest lower leather | SCHWARZ | 1 | 09/2001 | 52207041796 | $460.91 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 01 | Armrest lower cloth | MARINEBLAU | 1 | 09/2001 | 52207041783 | $316.94 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 01 | Armrest lower leather | HELLBEIGE | 1 | 09/2001 | 52207041797 | $627.75 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 02 | Armrest upper cloth | PEACH | 1 | 09/2001 | 52207041829 | $241.06 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/brombeer |
J1BB=Yes |
|||||||||
| 02 | Armrest upper cloth | BROMBEER | 1 | 52207047387 | $241.06 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 02 | Armrest upper leather | HELLBEIGE | 1 | 52207041817 | $326.15 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 02 | Armrest upper cloth | ANTHRAZIT | 1 | 09/2001 | 52207041806 | $241.06 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 02 | Armrest upper leather | TIEFGRÜN | 1 | 09/2001 | 52207041812 | $319.18 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 02 | Armrest upper cloth | ANTHRAZIT | 1 | 52207041825 | $319.18 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 02 | Armrest upper cloth | GRAU | 1 | 09/2001 | 52207041809 | $241.06 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric Tex 2000/anthracite |
J1AT=Yes |
|||||||||
| 02 | Armrest upper cloth | ANTHRAZIT | 1 | 52207047386 | $241.06 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 02 | Armrest upper leather | GRAU | 1 | 52207041819 | $326.15 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 02 | Armrest upper leather | TANINROT | 1 | 09/2001 | 52207041818 | $319.18 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 02 | Armrest upper cloth | LAVENDEL | 1 | 09/2001 | 52207041814 | $241.06 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana/basic equip/schwarz |
N6SW=Yes |
|||||||||
| 02 | Armrest upper leather | SCHWARZ | 1 | 52207041816 | $326.15 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 02 | Armrest upper leather | ANTHRAZIT | 1 | 52207041827 | $241.06 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/mahagoni |
N6NG=Yes |
|||||||||
| 02 | Armrest upper leather | NATURBRAUN | 1 | 52207057357 | $326.15 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 02 | Armrest upper cloth | MINTGRÜN | 1 | 09/2001 | 52207041807 | $241.06 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 02 | Armrest upper leather | ANTHRAZIT | 1 | 52207041811 | $319.18 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 02 | Armrest upper leather | LIGHTGELB | 1 | 09/2001 | 52207041823 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 02 | Armrest upper leather | SCHWARZ | 1 | 09/2001 | 52207041821 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 02 | Armrest upper cloth | MARINEBLAU | 1 | 09/2001 | 52207041808 | $241.06 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 02 | Armrest upper leather | HELLBEIGE | 1 | 09/2001 | 52207041822 | $407.34 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Cup holder | 1 | 52207041830 | $71.24 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
