Seat, front, complete seat for BMW 5 Series E39 528i (2000)

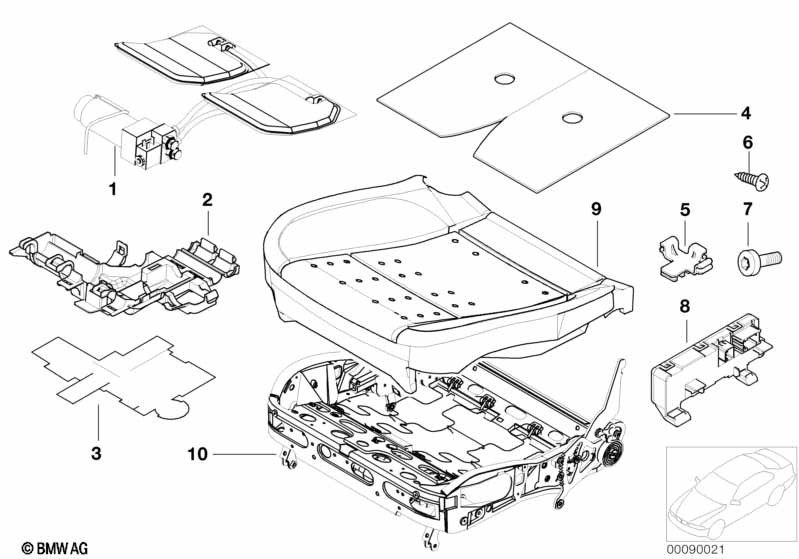

This Seat, front, complete seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive, active seat | 2 | 09/1998 | 52108234873 | $1168.01 | Shop at ECS Tuning | ||||
| 02 | Bracket, drive, active seat | 2 | 09/1998 | 52108234874 | $13.09 | Shop at ECS Tuning | ||||
| 03 | Set pad | 2 | 09/1998 | 52108248217 | $5.62 | Shop at ECS Tuning | ||||
| 04 | Sound protection cap,active seat drive | 2 | 09/1998 | 52108264249 | $30.97 | Shop at ECS Tuning | ||||
| 05 | Plug-in connection bracket | 2 | 09/1998 | 61138365551 | $1.51 | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | 4,2X16MM | 8 | 09/1998 | 07119905243 | $0.19 | Shop at ECS Tuning | |||
| 07 | Fillister-head screw | 4 | 09/1998 | 51108238067 | $0.39 | Shop at ECS Tuning | ||||
| 08 | Control unit, active seat ventilation | 2 | 09/1998 | 61356901558 | $209.49 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and passenger and Comfort seat with memory |
S455A=Yes S456A=Yes |
|||||||||
| 09 | Foam pad, active seat leather | 2 | 09/1998 | 52108234867 | $150.27 | Shop at ECS Tuning | ||||
| 09 | Foam pad, active seat ventilation, cloth | 2 | 09/1998 | 52108235838 | $89.00 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and SA 455 = Active seat ONLY APPLIES TO DRIVER'S SIDE |
S459A=Yes =Yes |
|||||||||
| 10 | Seat frame, active seat ventilation | 1 | 52108234869 | $1051.23 | Shop at ECS Tuning | |||||
| For vehicles with Electr. front seat adjustment and SA 455 = Active seat ONLY APPLIES TO CO-DRIVERS SIDE |
S458A=Yes =Yes |
|||||||||
| 10 | Seat frame, active seat ventilation | 1 | 52108234870 | $948.05 | Shop at ECS Tuning | |||||
