Seat, front, seat frame for BMW 5 Series E60 525i (2005)

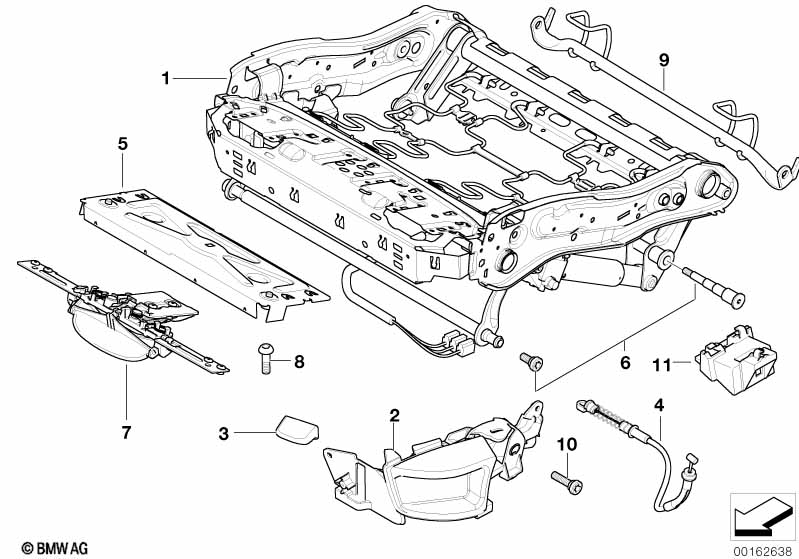

This Seat, front, seat frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory Passenger's side |
S459A=Yes |
|||||||||
| 01 | Seat frame, electr. right | 1 | 09/2007 | 52109146336 | $523.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory Driver's side |
S459A=Yes |
|||||||||
| 01 | Seat frame, electr. left | 1 | 09/2007 | 52109113125 | $714.44 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Seat frame, manual left | 1 | 09/2007 | 52109113103 | $527.55 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat frame, manual left | 1 | 52109155007 | $527.55 | Shop at ECS Tuning | |||||
| 01 | Seat frame, manual right | 1 | 09/2007 | 52109113104 | $510.04 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat frame, manual right | 1 | 52109155008 | $527.55 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sports seat Passenger's side |
S481A=Yes |
|||||||||
| 01 | Seat frame, right | 1 | 01/2006 | 52107147602 | $739.75 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 09/2007 | 52109113129 | $916.91 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat frame, comfort seat, right | 1 | 09/2007 | 52109113130 | $916.91 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Standard seat mechanically adjustable Passenger's side |
=Yes |
|||||||||
| 01 | Seat frame, manual right | 1 | 09/2007 | 52109113102 | $406.85 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat frame, manual right | 1 | 52109155006 | $527.55 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Standard seat mechanically adjustable Driver's side |
=Yes |
|||||||||
| 01 | Seat frame, manual left | 1 | 09/2007 | 52109113103 | $527.55 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat frame, manual left | 1 | 52109155007 | $527.55 | Shop at ECS Tuning | |||||
| For vehicles with Active seat for driver and passenger and Comfort seat with memory |
S455A=Yes S456A=Yes |
|||||||||
| 01 | Seat frame, comfort seat, left | 1 | 09/2007 | 52109113135 | $1537.89 | ENDED | Shop at ECS Tuning | |||
| 01 | Seat frame, comfort seat, right | 1 | 09/2007 | 52109113136 | $1537.89 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Active seat for driver and passenger and Seat adjuster, electric, with memory Passenger's side |
S455A=Yes S459A=Yes |
|||||||||
| 01 | Seat frame,act. seat ventilat.electr rgh | 1 | 09/2007 | 52109113134 | $1362.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Active seat for driver and passenger and Standard seat mechanically adjustable Passenger's side |
S455A=Yes =Yes |
|||||||||
| 01 | Seat frame,act. seat ventilat.manual rgh | 1 | 09/2007 | 52109113138 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat Passenger's side |
S459A=Yes S481A=Yes |
|||||||||
| 01 | Seat frame, electr. right | 1 | 09/2007 | 52109146336 | $523.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Sports seat Driver's side |
S459A=Yes S481A=Yes |
|||||||||
| 01 | Seat frame, electr. left | 1 | 09/2007 | 52109113125 | $714.44 | ENDED | Shop at ECS Tuning | |||
| 02 | Actuation unit left | 1 | 52107058569 | $26.56 | Shop at ECS Tuning | |||||
| 02 | Actuation unit right | 1 | 52107058570 | $26.56 | Shop at ECS Tuning | |||||
| 03 | Lever left | 1 | 52108150059 | $3.91 | Shop at ECS Tuning | |||||
| 03 | Lever right | 1 | 52108150060 | $3.91 | Shop at ECS Tuning | |||||
| 04 | Bowden cable horizontal adjustment | 2 | 52107068603 | $18.93 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 05 | Seat carrier, front | 2 | 52107918492 | $23.37 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 05 | Seat carrier, front | 2 | 52107075955 | $24.97 | Shop at ECS Tuning | |||||
| 06 | Set of screws | 2 | 52107068060 | $21.66 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 07 | Mechanical system, thigh support | 2 | 52107143536 | $108.85 | Shop at ECS Tuning | |||||
| 08 | Screw | T20X16 | 2 | 52107068046 | $7.71 | Shop at ECS Tuning | ||||
| Passenger's side | ||||||||||
| 09 | Bracket Isofix | 1 | 52106983934 | Shop at ECS Tuning | ||||||
| 10 | Screw | M8X21 T40 | 2 | 52108099039 | $0.87 | Shop at ECS Tuning | ||||
| 11 | Bracket, heater module | 1 | 52109117082 | $2.70 | Shop at ECS Tuning | |||||
