Front seat backrest frame/rear panel for BMW 5 Series E60 LCI 525xi (2009)

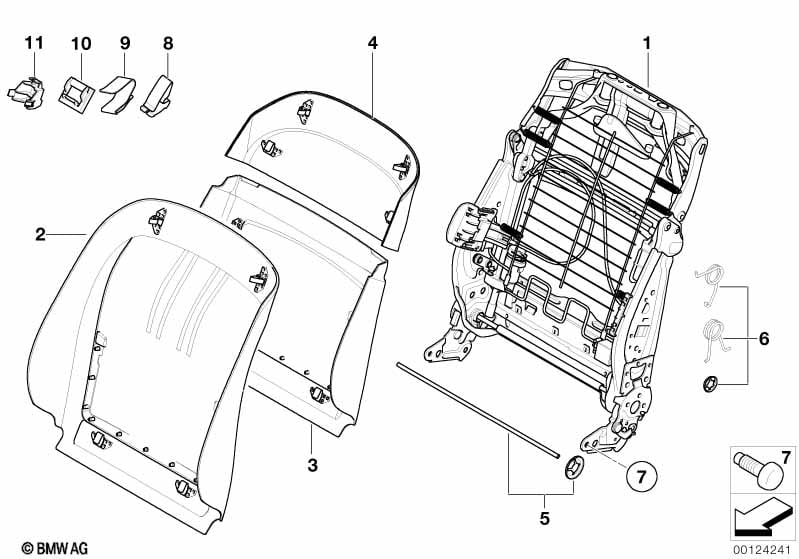

This Front seat backrest frame/rear panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Basic seat electric parts | ||||||||||
| 01 | Backrest frame, manual | 2 | 52109112988 | $421.47 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory Crash-active |
S459A=Yes |
|||||||||
| 01 | Backrest frame, electr., passsenger | 1 | 09/2007 | 52109154977 | $515.89 | ENDED | Shop at ECS Tuning | |||
| 01 | Backrest frame, electr., driver | 1 | 09/2007 | 52109154981 | $421.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Active backrest width adjustment or Comfort seat with memory Crash-active |
S4MFA=Yes S456A=Yes |
|||||||||
| 01 | Backrest frame, comfort seat | 2 | 09/2007 | 52109154995 | $1109.64 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory and Sports seat Crash-active |
S459A=Yes S481A=Yes |
|||||||||
| 01 | Backrest frame, electr., passsenger | 1 | 09/2007 | 52109154977 | $515.89 | ENDED | Shop at ECS Tuning | |||
| 01 | Backrest frame, electr., driver | 1 | 09/2007 | 52109154981 | $421.47 | ENDED | Shop at ECS Tuning | |||
| Basic seat electric parts | ||||||||||
| 02 | Vinyl rear panel | SCHWARZ | 2 | 52107015655 | $105.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | BEIGE | 2 | 52107015657 | $105.60 | Shop at ECS Tuning | ||||
| 02 | Vinyl rear panel | NATURBRAUN | 2 | 52107015660 | $95.24 | ENDED | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | GRAU | 2 | 52107078508 | $105.13 | Shop at ECS Tuning | ||||
| 02 | Vinyl rear panel | CREAMBEIGE | 2 | 52107124835 | $105.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | LAVABLAU | 2 | 52107153267 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory or Sports seat Basic seat electric parts |
S459A=Yes S481A=Yes |
|||||||||
| 02 | Vinyl rear panel | SCHWARZ | 2 | 52107015655 | $105.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | FLANELLGRAU | 2 | 52107015656 | $105.13 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | BEIGE | 2 | 52107015657 | $105.60 | Shop at ECS Tuning | ||||
| 02 | Vinyl rear panel | NATURBRAUN | 2 | 52107015660 | $95.24 | ENDED | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | GRAU | 2 | 52107078508 | $105.13 | Shop at ECS Tuning | ||||
| 02 | Vinyl rear panel | TRÜFFELBRAUN | 2 | 52107078509 | $105.13 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | CREAMBEIGE | 2 | 52107124835 | $105.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | LAVABLAU | 2 | 52107153267 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 03 | Lower rear panel | SCHWARZ | 2 | 52107015263 | $105.13 | Shop at ECS Tuning | ||||
| 03 | Lower rear panel | BEIGE | 2 | 52107015265 | $105.13 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Lower rear panel | NATURBRAUN | 2 | 52107015268 | $105.13 | Shop at ECS Tuning | ||||
| 03 | Lower rear panel | CREAMBEIGE | 2 | 52107015269 | $105.13 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Lower rear panel | GRAU | 2 | 52107078510 | $105.13 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Lower rear panel | TRÜFFELBRAUN | 2 | 52107078511 | $105.13 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Lower rear panel | CREAMBEIGE | 2 | 09/2002 | 52107061908 | $648.27 | +core | Shop at ECS Tuning | ||
| For vehicles with Comfort seat with memory and Leather "Nappa/black" |
S456A=Yes NASW=Yes |
|||||||||
| 03 | Lower rear panel | SCHWARZ | 2 | 52109119896 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory and Leather filled napa "Skin" |
S456A=Yes LD=Yes |
|||||||||
| 03 | Lower rear panel | SCHWARZ | 2 | 52107126797 | $431.21 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Lower rear panel | ROSENHOLZ | 2 | 52107126902 | $431.21 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 04 | Upper rear panel | SCHWARZ | 2 | 52107015252 | $52.77 | Shop at ECS Tuning | ||||
| 04 | Upper rear panel | BEIGE | 2 | 52107015254 | $52.77 | +core | Shop at ECS Tuning | |||
| 04 | Upper rear panel | NG NATURBRAUN | 2 | 52107022279 | $205.34 | ENDED | Shop at ECS Tuning | |||
| 04 | Upper rear panel | GRAU | 2 | 52107078512 | $52.77 | ENDED | Shop at ECS Tuning | |||
| 04 | Upper rear panel | TRÜFFELBRAUN | 2 | 52107078513 | $52.77 | ENDED | Shop at ECS Tuning | |||
| 04 | Upper rear panel | U6MC LAVABLAU | 2 | 52107153258 | $217.05 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory and Leather filled napa "Skin" |
S456A=Yes LD=Yes |
|||||||||
| 04 | Upper rear panel | SCHWARZ | 2 | 52107126587 | $210.25 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Upper rear panel | ROSENHOLZ | 2 | 52107126589 | $198.65 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory and Cloth "New Mind" or Leather "Nasca" or Leather "Dakota"/creambeige |
S456A=Yes H5=Yes U6=Yes LCGE=Yes |
|||||||||
| 04 | Upper rear panel | CREAMBEIGE | 2 | 52107015258 | $54.13 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Shaft | 2 | 52107068051 | $37.90 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 06 | Spring set | 2 | 52107068047 | $37.90 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M10X24 | 8 | 07149159336 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Clip, trim panel, top | 4 | 52108175057 | $4.91 | Shop at ECS Tuning | |||||
| 09 | Clip, trim panel, bottom | 4 | 52108175058 | $3.11 | Shop at ECS Tuning | |||||
| 10 | Clip, backrest, upper | 4 | 11/2008 | 52109157195 | Shop at ECS Tuning | |||||
| 11 | Clip | 4 | 52108175054 | $2.29 | Shop at ECS Tuning | |||||
