Seat, rear, seat frame, load-through for BMW 5 Series E60 LCI 520d (2009)

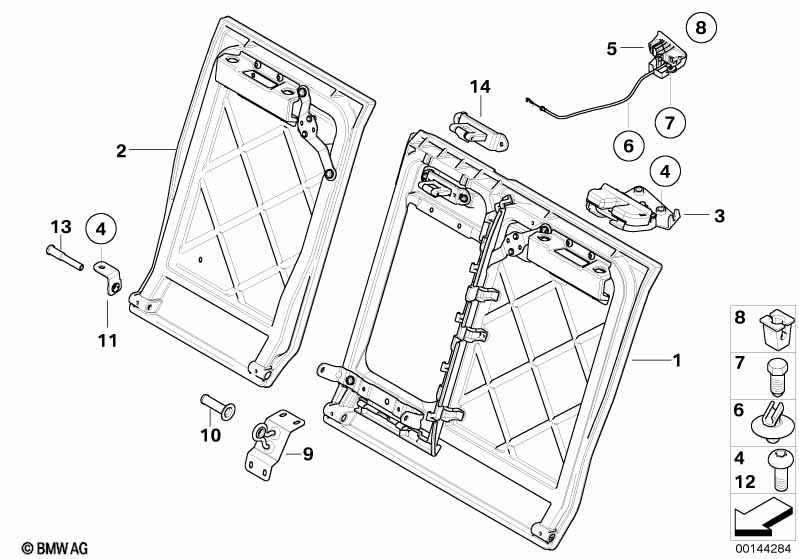

This Seat, rear, seat frame, load-through technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Through-loading system |
S465A=Yes |
||||||||
| 01 | Backrest frame, left | 1 | 52207058587 | $263.79 | Shop at ECS Tuning | |||||
| 02 | Backrest frame, right | 1 | 52207058588 | $263.79 | Shop at ECS Tuning | |||||
| 03 | Lock left | 1 | 52207112863 | $35.49 | +core | Shop at ECS Tuning | ||||
| 03 | Lock right | 1 | 52207112864 | $35.49 | +core | Shop at ECS Tuning | ||||
| 04 | Torx screw with collar | M8X20 T30 | 4 | 07147124309 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Actuation unit left | 1 | 52207114469 | $29.33 | Shop at ECS Tuning | |||||
| 05 | Actuation unit right | 1 | 52207114470 | $29.33 | Shop at ECS Tuning | |||||
| 06 | Cable holder | 4 | 72118177700 | $0.52 | Shop at ECS Tuning | |||||
| 07 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | ST 4.8 | 4 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Center Mount | 1 | 52207066137 | $17.73 | Shop at ECS Tuning | |||||
| 10 | Set of bushes | 1 | 52207135816 | $4.73 | Shop at ECS Tuning | |||||
| 11 | Bracket exterior | 2 | 52207071149 | $4.73 | ENDED | Shop at ECS Tuning | ||||
| 12 | Torx screw with collar | M8X20 T30 | 2 | 07147124309 | $0.80 | Shop at ECS Tuning | ||||
| 13 | Pin | 2 | 07147119120 | $3.75 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hood catch | 1 | 52207065851 | $21.89 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
