Rear seat head restraint for BMW 5 Series E60 LCI 525xi (2009)

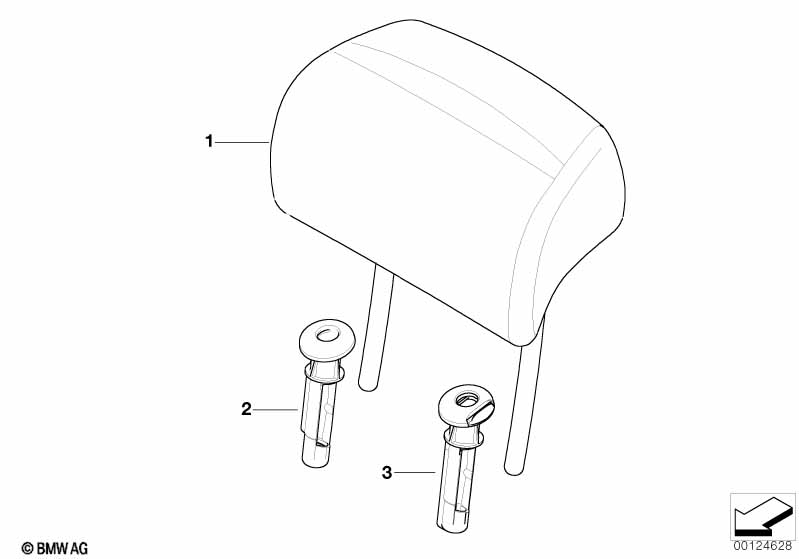

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 1 | 52206964816 | $160.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 1 | 52206964814 | $160.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/natural brown |
LCNG=Yes |
|||||||||
| 01 | Headrest leather | NATURBRAUN | 1 | 52209126175 | $256.64 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/dark blue |
LCCU=Yes |
|||||||||
| 01 | Headrest leather | DUNKELBLAU | 1 | 52209126174 | $256.64 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 01 | Headrest leather | BEIGE | 1 | 52207074567 | $256.64 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather, beige |
KBBA=Yes |
|||||||||
| 01 | Headrest imitation leather | BEIGE | 1 | 52209136990 | $160.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 1 | 52207238927 | $251.61 | Shop at ECS Tuning | ||||
| For vehicles with Imitation leather/black |
KBSW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 1 | 52209136989 | $160.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/beige |
ALBA=Yes |
|||||||||
| 01 | Head rest cloth | BEIGE | 1 | 52206964815 | $160.11 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/tabak" or Leather "Nappa/tabak" |
NAF1=Yes NANT=Yes |
|||||||||
| 01 | Headrest leather | TABAK | 1 | 52209113755 | $277.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "React/Oregon"/anthrazit or Leather "Dakota"/schwarz |
FBAT=Yes LCSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 1 | 52207238926 | $264.31 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nappa/black" or Leather "Nappa/black" |
NANS=Yes NASW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 1 | 52209113754 | $277.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/cream-beige/black" or Leather "Dakota"/creambeige |
LCCC=Yes LCGE=Yes |
|||||||||
| 01 | Headrest leather | CREAMBEIGE | 1 | 52207238928 | $264.31 | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 1 | 52207148401 | $274.54 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 01 | Headrest leather | BEIGE | 1 | 52207148402 | $277.13 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Guide, headrest | SCHWARZ | 1 | 52207124916 | $3.58 | Shop at ECS Tuning | ||||
| 02 | Guide, headrest | BEIGE | 1 | 52207124918 | $3.58 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide, headrest | GRAU | 1 | 52207124920 | $3.58 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide, headrest | AMETHYST | 1 | 52207132453 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide, headrest | CREAMBEIGE | 1 | 52209128040 | $11.70 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide, headrest | NATURBRAUN | 1 | 52209128042 | ENDED | Shop at ECS Tuning | ||||
| 03 | Guide, headrest, lockable | SCHWARZ | 1 | 52207124915 | $5.93 | Shop at ECS Tuning | ||||
| 03 | Guide, headrest, lockable | BEIGE | 1 | 52207124917 | $5.93 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide, headrest, lockable | GRAU | 1 | 52207124919 | $5.93 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide, headrest, lockable | AMETHYST | 1 | 52207132435 | $4.97 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide, headrest, lockable | CREAMBEIGE | 1 | 52209128039 | $11.70 | ENDED | Shop at ECS Tuning | |||
| 03 | Guide, headrest, lockable | NATURBRAUN | 1 | 52209128041 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
