Seat, front, upholstery and cover for BMW 6 Series E63 LCI 635d (2010)

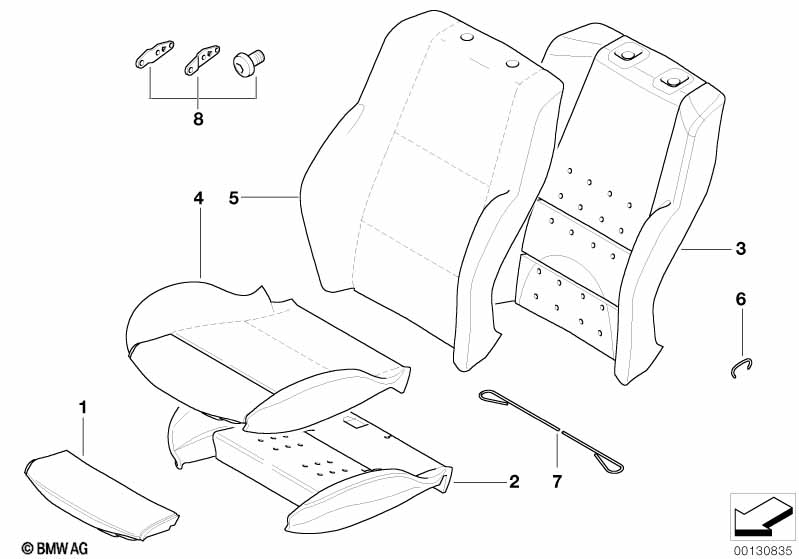

This Seat, front, upholstery and cover technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version with seat heating (also suitable for vehicles without seat heating) |
|||||||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Thigh support upholstery | 2 | 52108226419 | $31.93 | Shop at ECS Tuning | |||||
| 02 | Foam section, seat | 2 | 52107052369 | $170.84 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Basic seat, electrically adjustable |
=Yes |
|||||||||
| 02 | Foam section, seat | 2 | 52107052352 | $170.84 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 03 | Foam section, backrest | 2 | 52107052368 | $187.92 | Shop at ECS Tuning | |||||
| For vehicles with Basic seat, electrically adjustable |
=Yes |
|||||||||
| 03 | Foam section, backrest | 2 | 52107052353 | $187.92 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/chateau |
LCCH=Yes |
|||||||||
| 04 | Seat cover leather | CHATEAU | 2 | 52107117018 | $831.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/sattel-brown |
LED5=Yes |
|||||||||
| 04 | Seat cover leather | SATTELBRAUN | 2 | 52109135861 | $831.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/creambeige |
LEGE=Yes |
|||||||||
| 04 | Seat cover leather | CREAMBEIGE | 2 | 52107117030 | $803.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 04 | Seat cover leather | CREAMBEIGE | 2 | 52107117019 | $831.52 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Pearl/Precision"/schilf |
LELF=Yes |
|||||||||
| 04 | Seat cover leather | SCHILF | 2 | 52107117031 | $803.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/schwarz |
LESW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 2 | 52107062802 | $831.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/chateau |
LECH=Yes |
|||||||||
| 04 | Seat cover leather | CHATEAU | 2 | 52109135859 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 2 | 52107062790 | $831.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit |
FCAT=Yes |
|||||||||
| 04 | Cloth/leather seat cover | ANTHRAZIT | 2 | 52107060658 | $641.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Pearl/Precision"/schilf |
S481A=Yes LELF=Yes |
|||||||||
| 04 | Sports seat cover leather | SCHILF | 2 | 52107159880 | $792.36 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Pearl/Precision"/schwarz |
S481A=Yes LESW=Yes |
|||||||||
| 04 | Sports seat cover leather | SCHWARZ | 2 | 52107159878 | $831.52 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Leather "Dakota"/creambeige |
S481A=Yes LCGE=Yes |
|||||||||
| 04 | Sports seat cover leather | CREAMBEIGE | 2 | 52107117050 | $831.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Dakota"/schwarz |
S481A=Yes LCSW=Yes |
|||||||||
| 04 | Sports seat cover leather | SCHWARZ | 2 | 52107063762 | $831.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Dakota"/chateau |
S481A=Yes LCCH=Yes |
|||||||||
| 04 | Sports seat cover leather | CHATEAU | 2 | 52107117049 | $831.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Pearl/Precision"/creambeige |
S481A=Yes LEGE=Yes |
|||||||||
| 04 | Sports seat cover leather | CREAMBEIGE | 2 | 52107159879 | $831.52 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Leather "Pearl/Precision"/sattel-brown |
S481A=Yes LED5=Yes |
|||||||||
| 04 | Sports seat cover leather | SATTELBRAUN | 2 | 52109135981 | $1093.08 | +core | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Pearl/Precision"/chateau |
S481A=Yes LECH=Yes |
|||||||||
| 04 | Sports seat cover leather | CHATEAU | 2 | 52109135980 | $1093.08 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/chateau |
LCCH=Yes |
|||||||||
| 05 | Cover backrest, leather | CHATEAU | 2 | 52107117020 | $994.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/sattel-brown |
LED5=Yes |
|||||||||
| 05 | Cover backrest, leather | SATTELBRAUN | 2 | 52109135971 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Pearl/Precision"/creambeige |
LEGE=Yes |
|||||||||
| 05 | Cover backrest, leather | CREAMBEIGE | 2 | 52107117032 | $994.41 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 05 | Cover backrest, leather | CREAMBEIGE | 2 | 52107117021 | $994.41 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Pearl/Precision"/schilf |
LELF=Yes |
|||||||||
| 05 | Cover backrest, leather | SCHILF | 2 | 52107117033 | $803.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/schwarz |
LESW=Yes |
|||||||||
| 05 | Cover backrest, leather | SCHWARZ | 2 | 52107062804 | $994.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Pearl/Precision"/chateau |
LECH=Yes |
|||||||||
| 05 | Cover backrest, leather | CHATEAU | 2 | 52109135970 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather "Finolino/Dakota"/chateau |
FCCH=Yes |
|||||||||
| 05 | Cloth/leather backrest cover | CHATEAU | 2 | 52107117011 | $641.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 05 | Cover backrest, leather | SCHWARZ | 2 | 52107062792 | $994.41 | Shop at ECS Tuning | ||||
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit |
FCAT=Yes |
|||||||||
| 05 | Cloth/leather backrest cover | ANTHRAZIT | 2 | 52107060739 | $641.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Pearl/Precision"/schilf |
S481A=Yes LELF=Yes |
|||||||||
| 05 | Cover, Sports seat, backrest leather | SCHILF | 2 | 52107159884 | $803.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Pearl/Precision"/schwarz |
S481A=Yes LESW=Yes |
|||||||||
| 05 | Cover, Sports seat, backrest leather | SCHWARZ | 2 | 52107159882 | $994.41 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Leather "Dakota"/creambeige |
S481A=Yes LCGE=Yes |
|||||||||
| 05 | Cover, Sports seat, backrest leather | CREAMBEIGE | 2 | 52107117052 | $994.41 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Leather "Dakota"/schwarz |
S481A=Yes LCSW=Yes |
|||||||||
| 05 | Cover, Sports seat, backrest leather | SCHWARZ | 2 | 52107063764 | $994.41 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Leather "Dakota"/chateau |
S481A=Yes LCCH=Yes |
|||||||||
| 05 | Cover, Sports seat, backrest leather | CHATEAU | 2 | 52107117051 | $994.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Pearl/Precision"/creambeige |
S481A=Yes LEGE=Yes |
|||||||||
| 05 | Cover, Sports seat, backrest leather | CREAMBEIGE | 2 | 52107159883 | $994.41 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Leather "Pearl/Precision"/sattel-brown |
S481A=Yes LED5=Yes |
|||||||||
| 05 | Cover, Sports seat, backrest leather | SATTELBRAUN | 2 | 52109135983 | $994.41 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Leather "Pearl/Precision"/chateau |
S481A=Yes LECH=Yes |
|||||||||
| 05 | Cover, Sports seat, backrest leather | CHATEAU | 2 | 52109135982 | $994.41 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 08 | set of fittings for seat shell | 2 | 52108240499 | $5.48 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
