Seat rear, upholstery & cover base seat for BMW 6 Series E63 650i (2007)

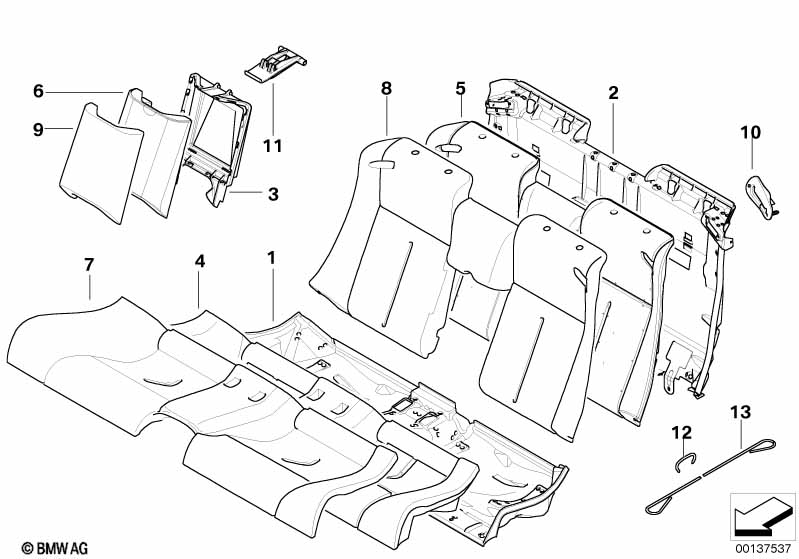

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat carrier, rear | 1 | 52207039805 | $139.16 | Shop at ECS Tuning | |||||
| 02 | Supporting part, backrest | 1 | 52207163965 | $113.69 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Supporting part, filler | 1 | 52207039809 | $15.86 | Shop at ECS Tuning | |||||
| 04 | Foam section, seat | 1 | 52207039804 | $280.64 | +core | Shop at ECS Tuning | ||||
| 05 | Foam section, backrest | 1 | 52207039806 | $308.69 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Foam filling part | 1 | 52207039808 | $27.62 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Pearl/Precision"/schilf |
LELF=Yes |
|||||||||
| 07 | Seat cover leather | SCHILF | 1 | 09/2007 | 52207113458 | $926.28 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit |
FCAT=Yes |
|||||||||
| 07 | Cloth/leather seat cover | ANTHRAZIT | 1 | 52207057766 | $669.60 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 07 | Seat cover leather | CREAMBEIGE | 1 | 09/2007 | 52207113424 | $1327.20 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/chateau |
LCCH=Yes |
|||||||||
| 07 | Seat cover leather | CHATEAU | 1 | 09/2007 | 52207113423 | $1387.08 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/schwarz |
LESW=Yes |
|||||||||
| 07 | Seat cover leather | SCHWARZ | 1 | 09/2007 | 52207062880 | $1387.08 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/creambeige |
LEGE=Yes |
|||||||||
| 07 | Seat cover leather | CREAMBEIGE | 1 | 09/2007 | 52207113457 | $1357.13 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Finolino/Dakota"/chateau |
FCCH=Yes |
|||||||||
| 07 | Cloth/leather seat cover | CHATEAU | 1 | 52207057874 | $669.60 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 07 | Seat cover leather | SCHWARZ | 1 | 09/2007 | 52207062874 | $1387.08 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/schilf |
LELF=Yes |
|||||||||
| 08 | Cover backrest, leather | SCHILF | 1 | 09/2007 | 52207113460 | $892.80 | Shop at ECS Tuning | |||
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit |
FCAT=Yes |
|||||||||
| 08 | Cloth/leather backrest cover | ANTHRAZIT | 1 | 52207057767 | $677.97 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 08 | Cover backrest, leather | CREAMBEIGE | 1 | 09/2007 | 52207113445 | $739.75 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/chateau |
LCCH=Yes |
|||||||||
| 08 | Cover backrest, leather | CHATEAU | 1 | 09/2007 | 52207113444 | $739.75 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/schwarz |
LESW=Yes |
|||||||||
| 08 | Cover backrest, leather | SCHWARZ | 1 | 09/2007 | 52207062882 | $1294.56 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/creambeige |
LEGE=Yes |
|||||||||
| 08 | Cover backrest, leather | CREAMBEIGE | 1 | 09/2007 | 52207113459 | $1363.27 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Finolino/Dakota"/chateau |
FCCH=Yes |
|||||||||
| 08 | Cloth/leather backrest cover | CHATEAU | 1 | 52207057875 | $677.97 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 08 | Cover backrest, leather | SCHWARZ | 1 | 09/2007 | 52207062876 | $1323.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/schilf |
LELF=Yes |
|||||||||
| 09 | Cover, filling insert, armrest | SCHILF | 1 | 09/2007 | 52207113464 | $177.44 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 09 | Cover, filling insert, armrest | CREAMBEIGE | 1 | 09/2007 | 52207113462 | $174.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/schwarz |
LESW=Yes |
|||||||||
| 09 | Cover, filling insert, armrest | SCHWARZ | 1 | 09/2007 | 52207062884 | $174.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/creambeige |
LEGE=Yes |
|||||||||
| 09 | Cover, filling insert, armrest | CREAMBEIGE | 1 | 09/2007 | 52207113463 | $179.64 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Finolino/Dakota"/chateau or Leather "Dakota"/chateau |
FCCH=Yes LCCH=Yes |
|||||||||
| 09 | Cover, filling insert, armrest | CHATEAU | 1 | 09/2007 | 52207060972 | $174.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit or Leather "Dakota"/schwarz |
FCAT=Yes LCSW=Yes |
|||||||||
| 09 | Cover, filling insert, armrest | SCHWARZ | 1 | 09/2007 | 52207057768 | $174.41 | ENDED | Shop at ECS Tuning | ||
| 10 | Cover, belt outlet, left | CREAMBEIGE | 1 | 52207118081 | $12.22 | Shop at ECS Tuning | ||||
| 10 | Cover, belt outlet, right | CREAMBEIGE | 1 | 52207118082 | $12.22 | Shop at ECS Tuning | ||||
| 10 | Cover, belt outlet, left | SCHWARZ | 1 | 52207918705 | $12.22 | Shop at ECS Tuning | ||||
| 10 | Cover, belt outlet, right | SCHWARZ | 1 | 52207918706 | $12.22 | Shop at ECS Tuning | ||||
| 11 | Locking mechanism | X | 52207057780 | $9.18 | Shop at ECS Tuning | |||||
| 12 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
