Seat, front, lumbar for BMW 5 Series E60 525i (2007)
This Seat, front, lumbar technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Comfort seat with memory or Seat adjuster, electric, with memory or Comfort seat, rear, electr. adjustable or Sports seat or M multifunction seat |
S456A=Yes S459A=Yes S460A=Yes S481A=Yes S4MAA=Yes |
||||||||
| For vehicles with M multifunction seat |
S4MAA=Yes |
|||||||||
| 01 | Lordosis pad | 2 | 52107068156 | $37.83 | +core | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat, rear, electr. adjustable |
S460A=Yes |
|||||||||
| 01 | Lordosis pad | 2 | 52207052589 | $35.67 | +core | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory or Sports seat |
S459A=Yes S481A=Yes |
|||||||||
| 01 | Lordosis pad | 2 | 04/2007 | 52107039191 | $37.83 | Shop at ECS Tuning | ||||
| For vehicles with M multifunction seat |
S4MAA=Yes |
|||||||||
| 02 | Lumbar support pump | 2 | 52107039192 | $118.95 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat, rear, electr. adjustable |
S460A=Yes |
|||||||||
| 02 | Lumbar support pump | 2 | 52207070495 | $118.95 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory or Sports seat |
S459A=Yes S481A=Yes |
|||||||||
| 02 | Lumbar support pump | 2 | 04/2007 | 52107037861 | $118.95 | Shop at ECS Tuning | ||||
| For vehicles with M multifunction seat |
S4MAA=Yes |
|||||||||
| 03 | Valve unit | 2 | 52107039190 | $112.83 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Sports seat |
S459A=Yes S481A=Yes |
|||||||||
| 03 | Valve unit | 2 | 04/2007 | 52107039190 | $112.83 | Shop at ECS Tuning | ||||
| 03 | Valve unit | 2 | 04/2007 | 52109162872 | $112.83 | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory |
S456A=No |
|||||||||
| 04 | Set of hoses | 2 | 09/2006 | 52209169270 | $60.35 | Shop at ECS Tuning | ||||
| 05 | Set of fittings, cable | 2 | 09/2006 | 61117070505 | $15.73 | Shop at ECS Tuning | ||||
| 06 | Set of screws | 2 | 09/2006 | 52207070492 | $20.49 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Active seat for driver and passenger and Comfort seat with memory and Lumbar support, driver and passenger |
S451A=Yes S455A=No S456A=Yes S488A=Yes |
|||||||||
| 07 | Lordosis pad | 2 | 09/2006 | 52109122585 | $138.27 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Active seat for driver and passenger and Comfort seat with memory and Lumbar support, driver and passenger |
S451A=No S455A=Yes S456A=Yes S488A=Yes |
|||||||||
| 07 | Lordosis pad | 2 | 09/2006 | 52109122585 | $138.27 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Active seat for driver and passenger and Comfort seat with memory and Lumbar support, driver and passenger |
S451A=Yes S455A=No S456A=Yes S488A=Yes |
|||||||||

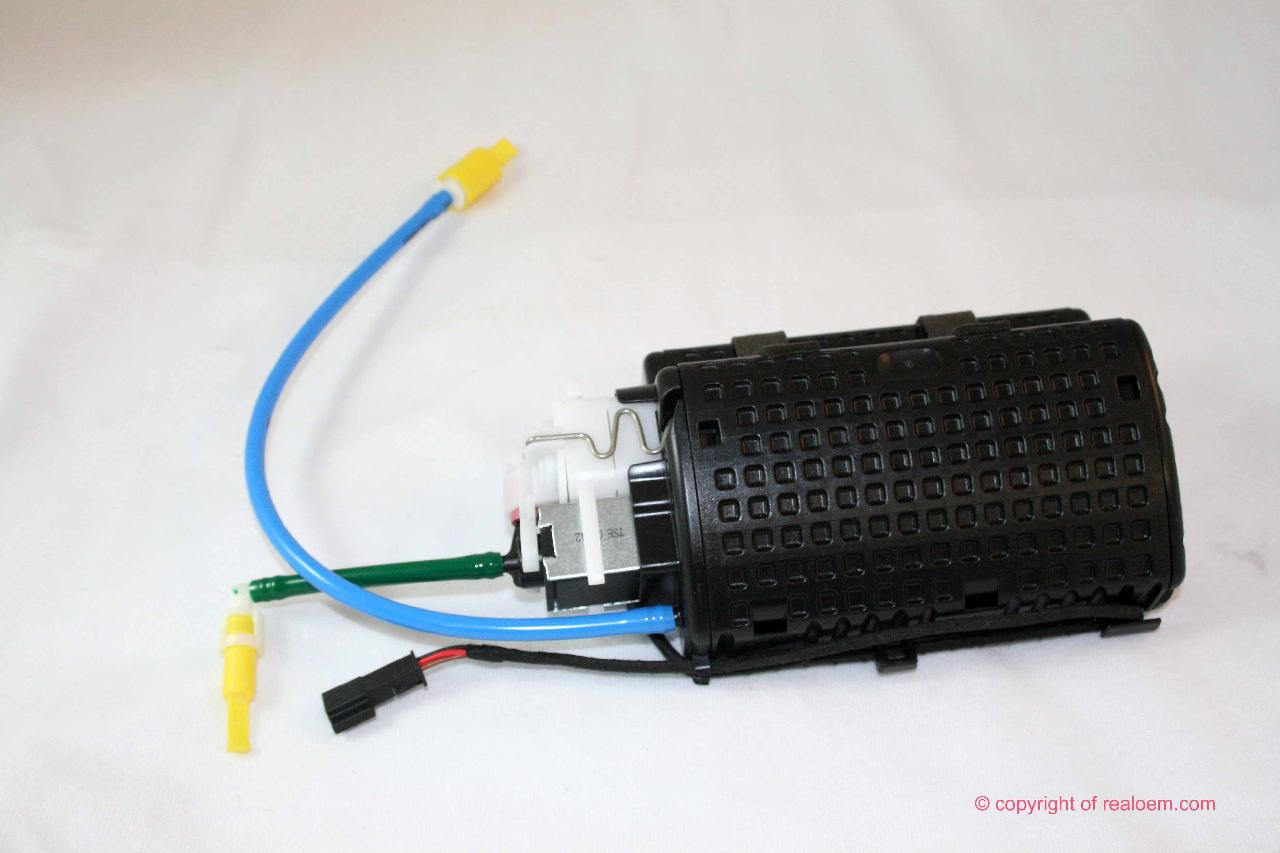

| 08 | Pump | 2 | 09/2006 | 52109122586 | $191.14 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Active seat for driver and passenger and Comfort seat with memory and Lumbar support, driver and passenger |
S451A=No S455A=Yes S456A=Yes S488A=Yes |
|||||||||
| 08 | Pump | 2 | 09/2006 | 52109122586 | $191.14 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Active seat for driver and passenger and Comfort seat with memory and Lumbar support, driver and passenger |
S451A=Yes S455A=No S456A=Yes S488A=Yes |
|||||||||
| 09 | Pressure valve body | 2 | 09/2006 | 52109122584 | $257.95 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Active seat for driver and passenger and Comfort seat with memory and Lumbar support, driver and passenger |
S451A=No S455A=Yes S456A=Yes S488A=Yes |
|||||||||
| 09 | Pressure valve body | 2 | 09/2006 | 52109122584 | $257.95 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
