Seat, front, upholstery and cover for BMW 6 Series E64 645Ci (2005)

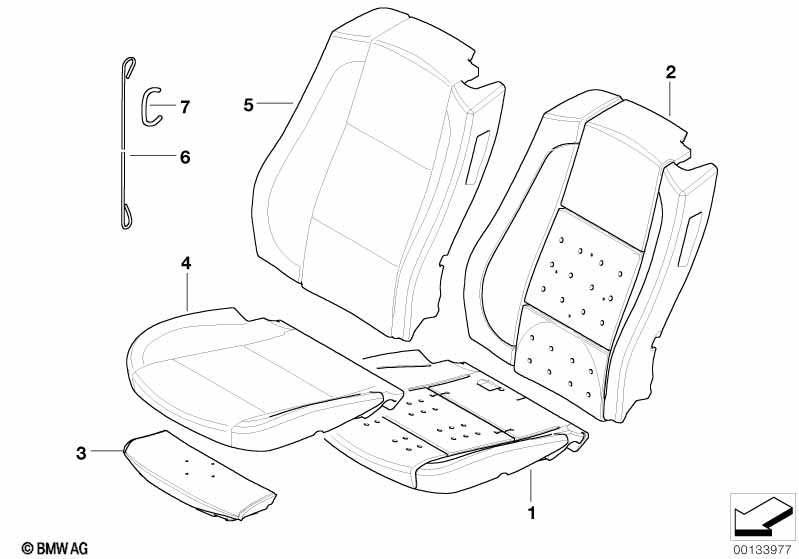

This Seat, front, upholstery and cover technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Foam pad basic seat left | 1 | 52107052403 | $170.84 | Shop at ECS Tuning | |||||
| For vehicles with Basic seat, electrically adjustable ONLY APPLIES TO CO-DRIVERS SIDE |
=Yes |
|||||||||
| 01 | Basic seat upholstery, right | OC3 | 1 | 52109142378 | $521.24 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Foam pad sports seat, left | 1 | 52107052433 | $170.84 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sports seat ONLY APPLIES TO CO-DRIVERS SIDE |
S481A=Yes |
|||||||||
| 01 | Sports seat upholstery parts, right | OC3 | 1 | 52109142379 | $521.24 | Shop at ECS Tuning | ||||
| 02 | Foam pad basic backrest left | 1 | 09/2007 | 52107052405 | $187.92 | ENDED | Shop at ECS Tuning | |||
| 02 | Foam pad basic backrest left | 1 | 09/2007 | 52109158395 | $187.92 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Upper foam pad | 1 | 09/2007 | 52109169766 | $22.56 | Shop at ECS Tuning | ||||
| 02 | Foam pad basic backrest right | 1 | 09/2007 | 52107052406 | $187.92 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Foam pad basic backrest right | 1 | 09/2007 | 52109158396 | $187.92 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Upper foam pad | 1 | 09/2007 | 52109169766 | $22.56 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 02 | Foam pad sport backrest left | 1 | 09/2007 | 52107052385 | $47.91 | ENDED | Shop at ECS Tuning | |||
| 02 | Foam pad sport backrest left | 1 | 09/2007 | 52109158397 | $187.92 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Upper foam pad | 1 | 09/2007 | 52109169766 | $22.56 | Shop at ECS Tuning | ||||
| 02 | Foam pad sport backrest right | 1 | 09/2007 | 52107052386 | $187.92 | ENDED | Shop at ECS Tuning | |||
| 02 | Foam pad sport backrest right | 1 | 09/2007 | 52109158398 | $187.92 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Upper foam pad | 1 | 09/2007 | 52109169766 | $22.56 | Shop at ECS Tuning | ||||
| 03 | Thigh support upholstery | 2 | 52108226419 | $31.93 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Pearl/Precision"/creambeige |
LEGE=Yes |
|||||||||
| 04 | Leather cover for basic seat left | CREAMBEIGE | 1 | 09/2007 | 52107127647 | $856.36 | ENDED | Shop at ECS Tuning | ||
| 04 | Leather cover for basic seat right | CREAMBEIGE | 1 | 09/2007 | 52107127648 | $813.71 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/schilf |
LELF=Yes |
|||||||||
| 04 | Leather cover for basic seat left | SCHILF | 1 | 09/2007 | 52107127649 | $739.35 | ENDED | Shop at ECS Tuning | ||
| 04 | Leather cover for basic seat right | SCHILF | 1 | 09/2007 | 52107127650 | $739.35 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/chateau |
LCCH=Yes |
|||||||||
| 04 | Leather cover for basic seat left | CHATEAU | 1 | 09/2007 | 52107127575 | $813.71 | ENDED | Shop at ECS Tuning | ||
| 04 | Leather cover for basic seat right | CHATEAU | 1 | 09/2007 | 52107127576 | $813.71 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Finolino/Dakota"/chateau |
FCCH=Yes |
|||||||||
| 04 | Cloth-leather basic seat cover left | CHATEAU | 1 | 52107077685 | $481.00 | Shop at ECS Tuning | ||||
| 04 | Cloth-leather basic seat cover right | CHATEAU | 1 | 52107077686 | $481.00 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 04 | Leather cover for basic seat left | SCHWARZ | 1 | 09/2007 | 52107064909 | $813.71 | ENDED | Shop at ECS Tuning | ||
| 04 | Leather cover for basic seat right | SCHWARZ | 1 | 09/2007 | 52107064910 | $831.52 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 04 | Leather cover for basic seat left | CREAMBEIGE | 1 | 09/2007 | 52107120225 | $813.71 | ENDED | Shop at ECS Tuning | ||
| 04 | Leather cover for basic seat right | CREAMBEIGE | 1 | 09/2007 | 52107120226 | $831.52 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/schwarz |
LESW=Yes |
|||||||||
| 04 | Leather cover for basic seat left | SCHWARZ | 1 | 09/2007 | 52107064921 | $856.36 | ENDED | Shop at ECS Tuning | ||
| 04 | Leather cover for basic seat right | SCHWARZ | 1 | 09/2007 | 52107064922 | $831.52 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit |
FCAT=Yes |
|||||||||
| 04 | Cloth-leather basic seat cover left | ANTHRAZIT | 1 | 52107064897 | $481.00 | ENDED | Shop at ECS Tuning | |||
| 04 | Cloth-leather basic seat cover right | ANTHRAZIT | 1 | 52107064898 | $481.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Dakota"/chateau |
S481A=Yes LCCH=Yes |
|||||||||
| 04 | Sports seat cover leather left | CHATEAU | 1 | 09/2007 | 52107077765 | $813.71 | ENDED | Shop at ECS Tuning | ||
| 04 | Sports seat cover leather right | CHATEAU | 1 | 09/2007 | 52107077766 | $831.52 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Pearl/Precision"/creambeige |
S481A=Yes LEGE=Yes |
|||||||||
| 04 | Sports seat cover leather left | CREAMBEIGE | 1 | 09/2007 | 52107159921 | $831.52 | ENDED | Shop at ECS Tuning | ||
| 04 | Sports seat cover leather right | CREAMBEIGE | 1 | 09/2007 | 52107159922 | $813.71 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Dakota"/creambeige |
S481A=Yes LCGE=Yes |
|||||||||
| 04 | Sports seat cover leather left | CREAMBEIGE | 1 | 09/2007 | 52107077767 | $813.71 | ENDED | Shop at ECS Tuning | ||
| 04 | Sports seat cover leather right | CREAMBEIGE | 1 | 09/2007 | 52107077768 | $813.71 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Pearl/Precision"/schwarz |
S481A=Yes LESW=Yes |
|||||||||
| 04 | Sports seat cover leather left | SCHWARZ | 1 | 09/2007 | 52107159919 | $831.52 | ENDED | Shop at ECS Tuning | ||
| 04 | Sports seat cover leather right | SCHWARZ | 1 | 09/2007 | 52107159920 | $831.52 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Pearl/Precision"/schilf |
S481A=Yes LELF=Yes |
|||||||||
| 04 | Sports seat cover leather left | SCHILF | 1 | 09/2007 | 52107159923 | $903.96 | ENDED | Shop at ECS Tuning | ||
| 04 | Sports seat cover leather right | SCHILF | 1 | 09/2007 | 52107159924 | $903.96 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Dakota"/schwarz |
S481A=Yes LCSW=Yes |
|||||||||
| 04 | Sports seat cover leather left | SCHWARZ | 1 | 09/2007 | 52107064955 | $814.69 | ENDED | Shop at ECS Tuning | ||
| 04 | Sports seat cover leather right | SCHWARZ | 1 | 09/2007 | 52107064956 | $813.71 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/creambeige |
LEGE=Yes |
|||||||||
| 05 | Cover, basic backrest, leather, left | CREAMBEIGE | 1 | 09/2007 | 52107127653 | $994.41 | ENDED | Shop at ECS Tuning | ||
| 05 | Basic backrest leather cover, right | CREAMBEIGE | 1 | 09/2007 | 52107127654 | $981.53 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/schilf |
LELF=Yes |
|||||||||
| 05 | Cover, basic backrest, leather, left | SCHILF | 1 | 09/2007 | 52107127655 | $739.35 | ENDED | Shop at ECS Tuning | ||
| 05 | Basic backrest leather cover, right | SCHILF | 1 | 09/2007 | 52107127656 | $739.35 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/chateau |
LCCH=Yes |
|||||||||
| 05 | Cover, basic backrest, leather, left | CHATEAU | 1 | 09/2007 | 52107127577 | $981.53 | ENDED | Shop at ECS Tuning | ||
| 05 | Basic backrest leather cover, right | CHATEAU | 1 | 09/2007 | 52107127578 | $994.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "Finolino/Dakota"/chateau |
FCCH=Yes |
|||||||||
| 05 | Cover basic backrest cloth-leather, left | CHATEAU | 1 | 52107077697 | $767.11 | Shop at ECS Tuning | ||||
| 05 | Cover basic backrest cloth/leather,right | CHATEAU | 1 | 52107077698 | $481.00 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 05 | Cover, basic backrest, leather, left | SCHWARZ | 1 | 09/2007 | 52107064913 | $981.53 | ENDED | Shop at ECS Tuning | ||
| 05 | Basic backrest leather cover, right | SCHWARZ | 1 | 09/2007 | 52107064914 | $981.53 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 05 | Cover, basic backrest, leather, left | CREAMBEIGE | 1 | 09/2007 | 52107127579 | $959.04 | ENDED | Shop at ECS Tuning | ||
| 05 | Basic backrest leather cover, right | CREAMBEIGE | 1 | 09/2007 | 52107127580 | $981.53 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Pearl/Precision"/schwarz |
LESW=Yes |
|||||||||
| 05 | Cover, basic backrest, leather, left | SCHWARZ | 1 | 09/2007 | 52107064925 | $994.41 | ENDED | Shop at ECS Tuning | ||
| 05 | Basic backrest leather cover, right | SCHWARZ | 1 | 09/2007 | 52107064926 | $994.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabr./leath. "Finolino/Dakota"/anthrazit |
FCAT=Yes |
|||||||||
| 05 | Cover basic backrest cloth-leather, left | ANTHRAZIT | 1 | 52107064901 | $481.00 | Shop at ECS Tuning | ||||
| 05 | Cover basic backrest cloth/leather,right | ANTHRAZIT | 1 | 52107064902 | $481.00 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Leather "Dakota"/chateau |
S481A=Yes LCCH=Yes |
|||||||||
| 05 | Leather cover sport backrest left | CHATEAU | 1 | 09/2007 | 52107127683 | $981.53 | ENDED | Shop at ECS Tuning | ||
| 05 | Leather cover sport backrest right | CHATEAU | 1 | 09/2007 | 52107127684 | $1024.11 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Pearl/Precision"/creambeige |
S481A=Yes LEGE=Yes |
|||||||||
| 05 | Leather cover sport backrest left | CREAMBEIGE | 1 | 09/2007 | 52107159929 | $981.53 | ENDED | Shop at ECS Tuning | ||
| 05 | Leather cover sport backrest right | CREAMBEIGE | 1 | 09/2007 | 52107159930 | $994.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Dakota"/creambeige |
S481A=Yes LCGE=Yes |
|||||||||
| 05 | Leather cover sport backrest left | CREAMBEIGE | 1 | 09/2007 | 52107127685 | $974.47 | ENDED | Shop at ECS Tuning | ||
| 05 | Leather cover sport backrest right | CREAMBEIGE | 1 | 09/2007 | 52107127686 | $994.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Pearl/Precision"/schwarz |
S481A=Yes LESW=Yes |
|||||||||
| 05 | Leather cover sport backrest left | SCHWARZ | 1 | 09/2007 | 52107159927 | $974.47 | ENDED | Shop at ECS Tuning | ||
| 05 | Leather cover sport backrest right | SCHWARZ | 1 | 09/2007 | 52107159928 | $974.47 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Pearl/Precision"/schilf |
S481A=Yes LELF=Yes |
|||||||||
| 05 | Leather cover sport backrest left | SCHILF | 1 | 09/2007 | 52107159931 | $739.35 | Shop at ECS Tuning | |||
| 05 | Leather cover sport backrest right | SCHILF | 1 | 09/2007 | 52107159932 | $739.35 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Leather "Dakota"/schwarz |
S481A=Yes LCSW=Yes |
|||||||||
| 05 | Leather cover sport backrest left | SCHWARZ | 1 | 09/2007 | 52107063791 | $981.53 | ENDED | Shop at ECS Tuning | ||
| 05 | Leather cover sport backrest right | SCHWARZ | 1 | 09/2007 | 52107063792 | $994.41 | ENDED | Shop at ECS Tuning | ||
| 06 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 07 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
