Seat, front, backrest frame for BMW 6 Series E64 650i (2007)

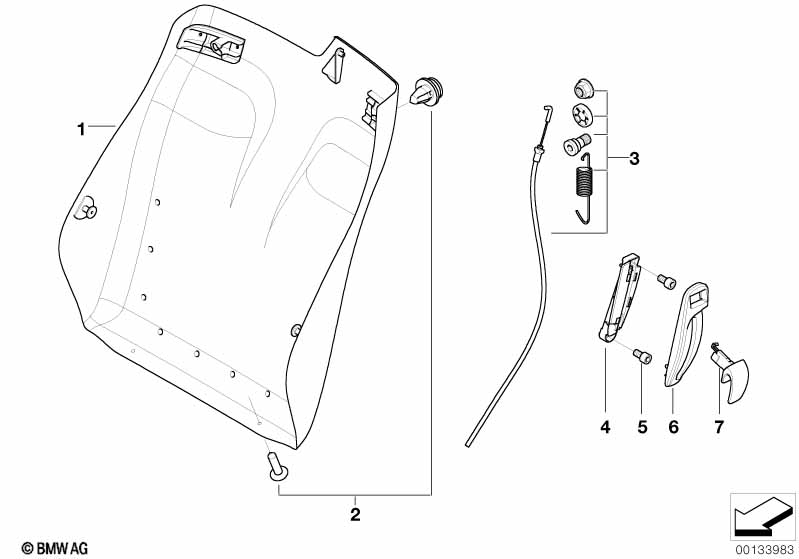

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Pearl/Precision" |
LE=Yes |
|||||||||
| 01 | Rear panel, left | BASALTGRAU | 1 | 52107064803 | $541.19 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear panel, right | BASALTGRAU | 1 | 52107064804 | $541.19 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear panel leather left | CREAMBEIGE | 1 | 52107127747 | $541.19 | Shop at ECS Tuning | ||||
| 01 | Rear panel, leather, right | CREAMBEIGE | 1 | 52107127748 | $541.19 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear panel, left | SCHWARZ | 1 | 52107173541 | $541.19 | Shop at ECS Tuning | ||||
| 01 | Rear panel, right | SCHWARZ | 1 | 52107173542 | $541.19 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather "Finolino/Dakota" or Leather "Dakota" |
FC=Yes LC=Yes |
|||||||||
| 01 | Rear panel, left | BASALTGRAU | 1 | 52107056147 | $215.12 | Shop at ECS Tuning | ||||
| 01 | Rear panel, right | BASALTGRAU | 1 | 52107056148 | $215.12 | Shop at ECS Tuning | ||||
| 01 | Rear panel, left | CREAMBEIGE | 1 | 52107127745 | $215.12 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear panel, right | CREAMBEIGE | 1 | 52107127746 | $215.12 | Shop at ECS Tuning | ||||
| 01 | Rear panel, left | SCHWARZ | 1 | 52107160747 | $215.12 | Shop at ECS Tuning | ||||
| 01 | Rear panel, right | SCHWARZ | 1 | 52107160748 | $215.12 | Shop at ECS Tuning | ||||
| 02 | set of fittings for backrest rear panel | 2 | 52107035967 | $7.94 | Shop at ECS Tuning | |||||
| 03 | Bowden cable left | 1 | 52107035849 | $115.71 | Shop at ECS Tuning | |||||
| 03 | Bowden cable right | 1 | 52107035850 | $115.71 | Shop at ECS Tuning | |||||
| 04 | Frame left | SCHWARZ | 1 | 52108259663 | $6.52 | Shop at ECS Tuning | ||||
| 04 | Frame right | SCHWARZ | 1 | 52108259664 | $6.52 | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | 1 | 51108238067 | $0.39 | Shop at ECS Tuning | |||||
| 06 | Cover, release left | BASALTGRAU | 1 | 52107127707 | $14.28 | Shop at ECS Tuning | ||||
| 06 | Cover, release right | BASALTGRAU | 1 | 52107127708 | $14.28 | Shop at ECS Tuning | ||||
| 06 | Cover, release left | CREAMBEIGE | 1 | 52107127709 | $11.81 | Shop at ECS Tuning | ||||
| 06 | Cover, release right | CREAMBEIGE | 1 | 52107127710 | $11.81 | Shop at ECS Tuning | ||||
| 06 | Covering outer left | SCHWARZ | 1 | 52108267501 | $12.27 | Shop at ECS Tuning | ||||
| 06 | Covering outer right | SCHWARZ | 1 | 52108267502 | $12.27 | Shop at ECS Tuning | ||||
| 07 | Lever outer left | SCHWARZ | 1 | 52108267507 | $6.11 | Shop at ECS Tuning | ||||
| 07 | Lever outer right | SCHWARZ | 1 | 52108267508 | $6.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 650i Seat, front, backrest frame?
- This technical diagram illustrates the Seat, front, backrest frame within the Seats group for the 6 Series E64 650i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Rear panel, left (Part #52107064803).
- Which models use the hardware listed in this Seat, front, backrest frame?
- The hardware and components featured in the Seat, front, backrest frame are specific to the 6 Series E64 650i produced during 2007. These technical specifications ensure that parts like the Rear panel, left (52107064803) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, front, backrest frame assembly?
- Each item in the Seat, front, backrest frame corresponds to the numbered list below the illustration. For the 6 Series E64 650i, you can identify the Rear panel, left by locating its position on the schematic, which then links to the official BMW part number 52107064803 for the Seats section.
