Seat, front, electrical and motors for BMW 6 Series E64 M6 (2010)

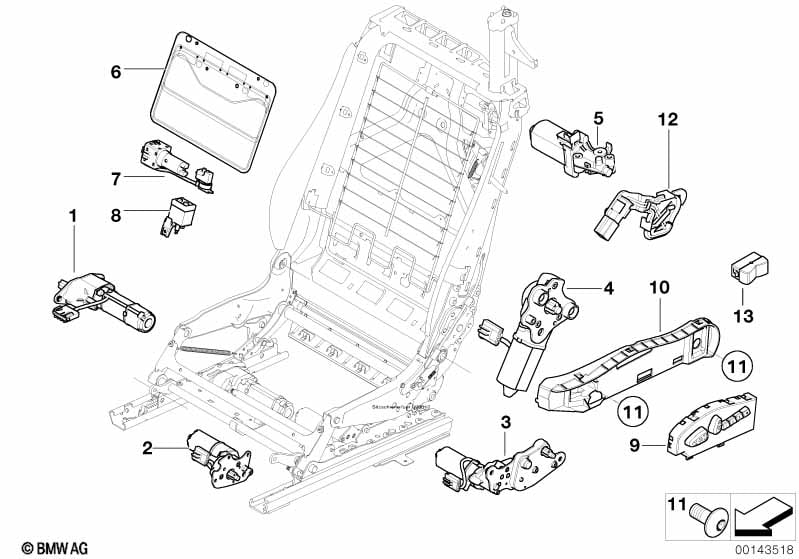

This Seat, front, electrical and motors technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
||||||||
| DRIVER AND CO-DRIVER | ||||||||||
| 01 | Drive, longitudinal seat adjustment left | MEMORY | 1 | 67667011735 | $215.60 | Shop at ECS Tuning | ||||
| 01 | Drive, longitudinal seat adjustment rght | MEMORY | 1 | 67667011736 | $215.60 | Shop at ECS Tuning | ||||
| Passenger's side | ||||||||||
| 02 | Drive, seat angle adjustment left | 1 | 67667011745 | $215.60 | +core | Shop at ECS Tuning | ||||
| Driver's side | ||||||||||
| 02 | Drive, seat angle adjustment right | MEMORY | 1 | 67667011740 | $215.60 | Shop at ECS Tuning | ||||
| Passenger's side | ||||||||||
| 03 | Drive, seat height adjustment left | 1 | 67667011743 | $215.60 | Shop at ECS Tuning | |||||
| Driver's side | ||||||||||
| 03 | Drive, seat height adjustment right | MEMORY | 1 | 67667011738 | $215.60 | Shop at ECS Tuning | ||||
| Passenger's side | ||||||||||
| 04 | Actuator, backrest adjustment left | 1 | 67668267403 | $215.60 | Shop at ECS Tuning | |||||
| Driver's side | ||||||||||
| 04 | Actuator, backrest adjustment right | 1 | 67668267408 | $215.60 | Shop at ECS Tuning | |||||
| DRIVER AND CO-DRIVER | ||||||||||
| 05 | Actuator, headrest left | 1 | 67668267405 | $150.92 | Shop at ECS Tuning | |||||
| 05 | Actuator, headrest right | 1 | 67668267406 | $150.92 | Shop at ECS Tuning | |||||
| 06 | Left lordosis pad | 1 | 52107008129 | $45.14 | Shop at ECS Tuning | |||||
| 06 | Right lordosis pad | 1 | 52107008130 | $45.14 | Shop at ECS Tuning | |||||
| 07 | Lumbar support pump | 2 | 67807025381 | $115.41 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve unit | 2 | 52107115694 | $103.32 | Shop at ECS Tuning | |||||
| Passenger's side | ||||||||||
| 09 | Actuation unit left | 1 | 52108255379 | $138.21 | Shop at ECS Tuning | |||||
| Driver's side | ||||||||||
| 09 | Actuation unit right | 1 | 52108255378 | $138.21 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat Passenger's side |
S481A=Yes |
|||||||||
| 09 | Actuation unit left | 1 | 52108255383 | $138.21 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat Driver's side |
S481A=Yes |
|||||||||
| 09 | Actuation unit right | 1 | 52108255382 | $138.21 | Shop at ECS Tuning | |||||
| 10 | Support f left seat adjustment | 1 | 52108267437 | $25.86 | Shop at ECS Tuning | |||||
| 10 | Support f right seat adjustment | 1 | 52108267438 | $25.86 | Shop at ECS Tuning | |||||
| 11 | Torx screw | M6X20 T30 | 4 | 07/2007 | 07149168393 | $1.02 | Shop at ECS Tuning | |||
| DRIVER AND CO-DRIVER | ||||||||||
| 12 | Micro switch left | 1 | 52107025193 | $59.69 | Shop at ECS Tuning | |||||
| 12 | Micro switch right | 1 | 52107025194 | $59.69 | Shop at ECS Tuning | |||||
| 13 | Switch f longitudinal seat adjustment | 2 | 61318099495 | $60.61 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
