Seat heating for BMW 3 Series E30 320i (1991)

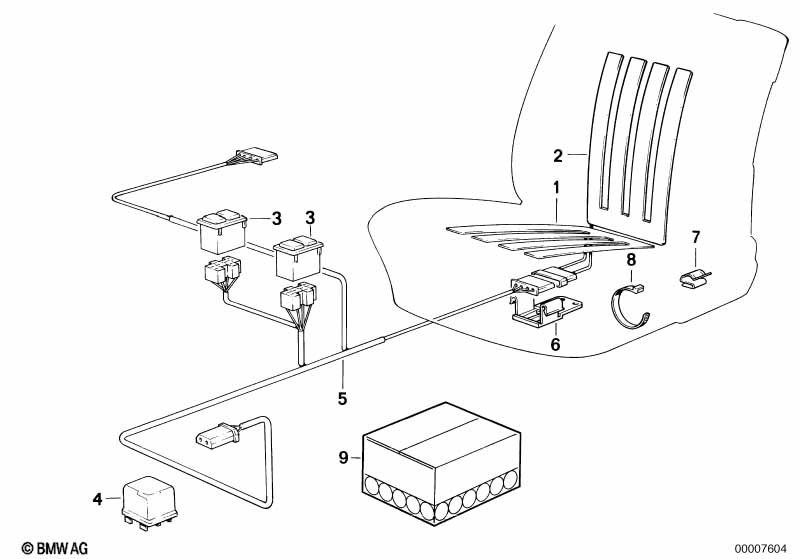

This Seat heating technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW sports seat and Leather trim |
=Yes =Yes |
|||||||||
| 01 | Heater element seat | 2 | 64111380687 | $99.20 | Shop at ECS Tuning | |||||
| For vehicles with BMW sports seat and Cloth version |
=Yes =Yes |
|||||||||
| 01 | Heater element seat | 2 | 64111376034 | $99.20 | Shop at ECS Tuning | |||||
| For vehicles with BMW sports seat and Leather trim |
=Yes =Yes |
|||||||||
| 02 | Heater element backrest | 2 | 64111380688 | $95.80 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with BMW sports seat and Cloth version |
=Yes =Yes |
|||||||||
| 02 | Heater element backrest | 2 | 64111376035 | $126.35 | Shop at ECS Tuning | |||||
| 03 | Seat heating switch | 2 | 09/1986 | 61311381208 | $66.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Relay | GELB | 1 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Mini-relay | 1 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 05 | Wiring heated seat | 1 | 09/1986 | 61121381721 | $109.12 | ENDED | Shop at ECS Tuning | |||
| 06 | Holder | 1 | 52101916175 | $1.53 | Shop at ECS Tuning | |||||
| 07 | Cable clamp | D=9/B=4 | 1 | 61131351045 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Cable tie | L=292MM/B=4,8MM | 4 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
