Seat heating for BMW 5 Series E39 528i (2000)

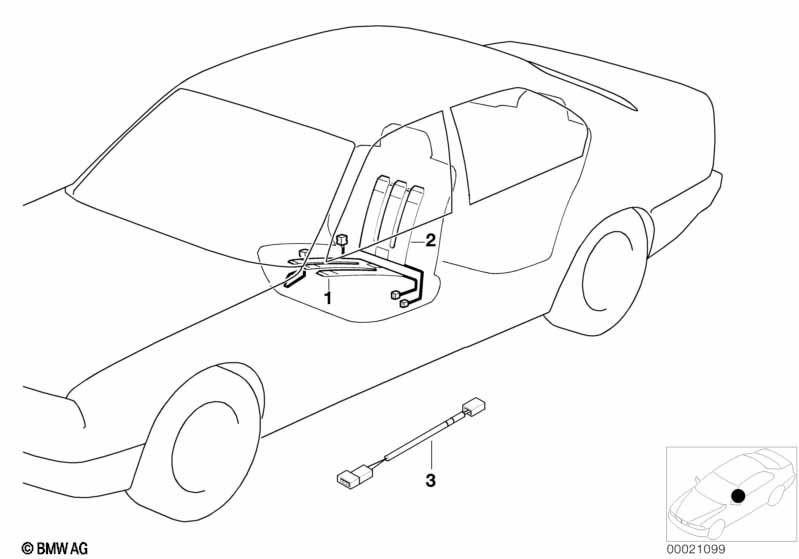

This Seat heating technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Seat heating
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For upholstery variants that are not
listed
the backrest/seat cover must be ordered
REFER TO MAIN GROUP 52
For vehicles with
Sports seat
and
  Diagonal rep cloth
  or
  Cloth "Headline"
  or
  Cloth/leather "Sportline"

S481A=Yes

F4=Yes

G3=Yes

J3=Yes
01 Heater element seat 120 W 2 09/1998 52108253115 $123.14 +core Shop at ECS Tuning
02 Heater element backrest 120 W 2 09/1998 52108253116 $86.14 +core Shop at ECS Tuning
03 Adapter cable for seat heater 2 09/1998 61129069761 $77.25 ENDED Shop at ECS Tuning
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
