Seat heating for BMW 5 Series E28 528e (1987)

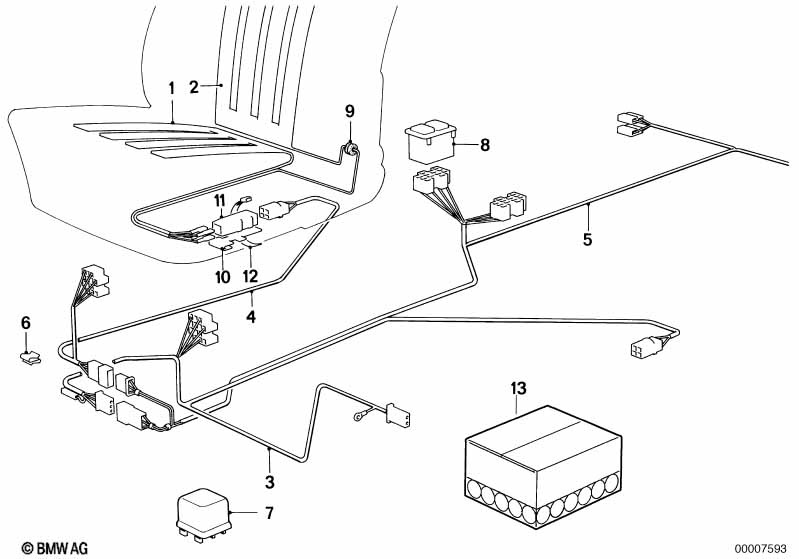

This Seat heating technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan or National version Canada |
L807A=Yes L838A=Yes |
|||||||||
| 01 | Heater element seat | 2 | 09/1984 | 64111377444 | $196.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan or National version Canada and BMW sports seat |
L807A=Yes L838A=Yes =Yes |
|||||||||
| 01 | Heater element seat | 2 | 64111376034 | $99.20 | Shop at ECS Tuning | |||||
| For vehicles with National version japan or National version Canada |
L807A=Yes L838A=Yes |
|||||||||
| 02 | Heater element backrest | 2 | 09/1984 | 64111377443 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan or National version Canada and BMW sports seat |
L807A=Yes L838A=Yes =Yes |
|||||||||
| 02 | Heater element backrest | 2 | 64111376035 | $126.35 | Shop at ECS Tuning | |||||
| For vehicles with National version japan or National version Canada |
L807A=Yes L838A=Yes |
|||||||||
| 03 | Wiring drivers side | 1 | 09/1986 | 61121381723 | $96.81 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiring co-drivers side | 1 | 09/1986 | 61121381724 | $29.85 | ENDED | Shop at ECS Tuning | |||
| 06 | Cable clamp | 2 | 25111220837 | $0.68 | ENDED | Shop at ECS Tuning | ||||
| 07 | Relay | GELB | 1 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 07 | Mini-relay | 1 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 07 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 08 | Seat heating switch | 2 | 09/1986 | 61311381208 | $66.76 | ENDED | Shop at ECS Tuning | |||
| 09 | Grommet | 10,5MM | 2 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 10 | Holder | 2 | 52101870530 | $0.88 | ENDED | Shop at ECS Tuning | ||||
| 11 | Plug housing | 2 | 61131361614 | $0.86 | Shop at ECS Tuning | |||||
| 12 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
