Seat heating for BMW 6 Series E24 635CSi (1989)

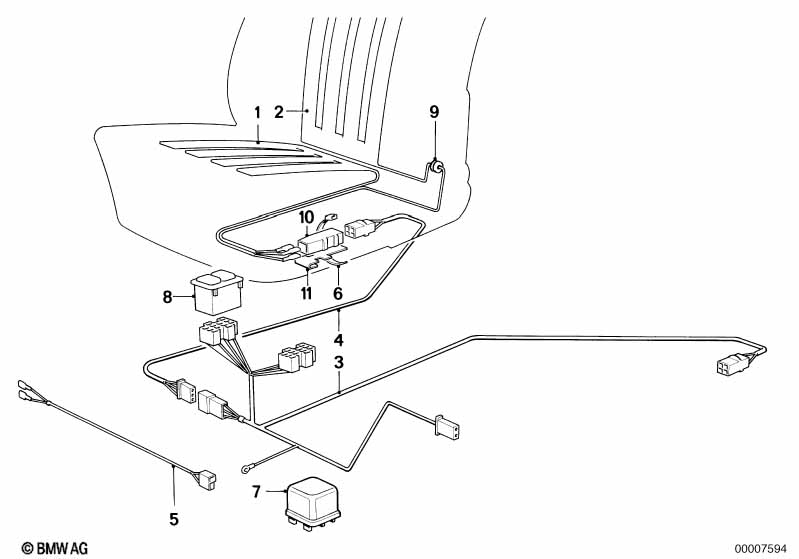

This Seat heating technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater element seat | 2 | 09/1984 | 64111377445 | $76.58 | ENDED | Shop at ECS Tuning | |||
| 01 | Heater element seat | 2 | 09/1984 | 64111377445 | $76.58 | ENDED | Shop at ECS Tuning | |||
| For vehicles with BMW sports seat |
=Yes |
|||||||||
| 01 | Heater element seat | 2 | 05/1982 | 64111376448 | $126.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Heater element seat | 2 | 05/1982 | 64111376448 | $126.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Heater element seat | 2 | 05/1982 | 64111377445 | $76.58 | ENDED | Shop at ECS Tuning | |||
| 01 | Heater element seat | 2 | 05/1982 | 64111377445 | $76.58 | ENDED | Shop at ECS Tuning | |||
| 02 | Heater element backrest | 2 | 09/1984 | 64111376752 | $76.58 | Shop at ECS Tuning | ||||
| 02 | Heater element backrest | 2 | 09/1984 | 64111376752 | $76.58 | Shop at ECS Tuning | ||||
| For vehicles with BMW sports seat |
=Yes |
|||||||||
| 02 | Heater element backrest | 2 | 05/1982 | 64111376752 | $76.58 | Shop at ECS Tuning | ||||
| 02 | Heater element backrest | 2 | 05/1982 | 64111376752 | $76.58 | Shop at ECS Tuning | ||||
| 03 | Wiring drivers side | 1 | 09/1986 | 61121381370 | $179.97 | ENDED | Shop at ECS Tuning | |||
| 03 | Wiring drivers side | 1 | 09/1986 | 61121381370 | $179.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiring co-drivers side | 1 | 09/1984 | 61121373478 | $76.59 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiring co-drivers side | 1 | 09/1984 | 61121373478 | $76.59 | ENDED | Shop at ECS Tuning | |||
| 06 | Cable tie | L=292MM/B=4,8MM | X | 08/1979 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 07 | Relay | GELB | 1 | 08/1979 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | ||
| 07 | Mini-relay | 1 | 08/1979 | 61311373588 | $11.38 | Shop at ECS Tuning | ||||
| 08 | Seat heating switch | 2 | 09/1986 | 61311381209 | $70.83 | Shop at ECS Tuning | ||||
| 08 | Seat heating switch | 2 | 09/1986 | 61311381209 | $70.83 | Shop at ECS Tuning | ||||
| 09 | Grommet | 10,5MM | 2 | 08/1979 | 61218050550 | $0.35 | Shop at ECS Tuning | |||
| 10 | Plug housing | 1 | 08/1979 | 61131361614 | $0.86 | Shop at ECS Tuning | ||||
| 11 | Holder | 1 | 08/1979 | 52101870530 | $0.88 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Seat heating?
- This technical diagram illustrates the Seat heating within the Seats group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Heater element seat (Part #64111377445).
- Which models use the hardware listed in this Seat heating?
- The hardware and components featured in the Seat heating are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Heater element seat (64111377445) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat heating assembly?
- Each item in the Seat heating corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Heater element seat by locating its position on the schematic, which then links to the official BMW part number 64111377445 for the Seats section.
