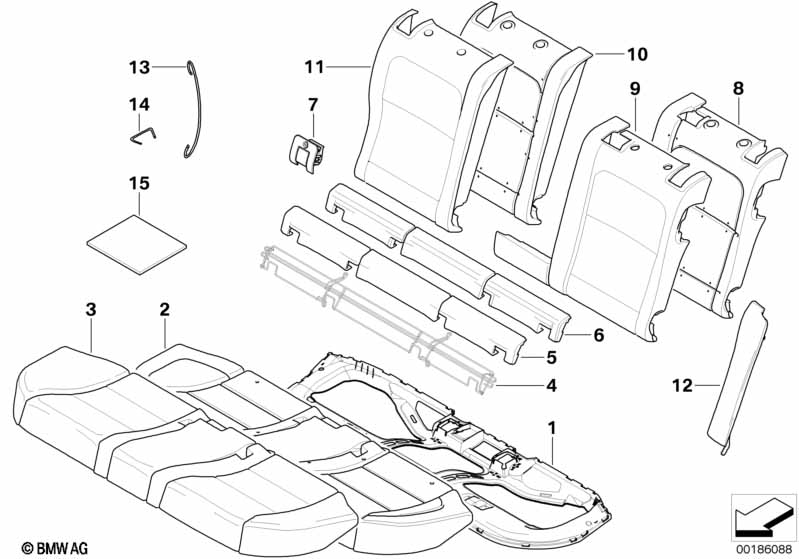

Seat rear, upholstery & cover base seat for BMW 5 Series E61 525i (2005)
This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version with seat heating (also suitable for vehicles without seat heating) |
|||||||||
| 01 | Seat frame | 1 | 52207058581 | $105.13 | ENDED | Shop at ECS Tuning | ||||
| 02 | Foam section, seat | 1 | 52207078047 | $259.87 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/grau Model without heated seat |
ABAD=Yes |
|||||||||
| 03 | Seat cover cloth | GRAU | 1 | 09/2005 | 52207136037 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabr./leath."React/Oregon"/trüffel-braun |
FBTE=Yes |
|||||||||
| 03 | Cloth/leather seat cover | TRÜFFELBRAUN | 1 | 03/2007 | 52207136057 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey Model without heated seat |
ALAD=Yes |
|||||||||
| 03 | Seat cover cloth | GRAU | 1 | 52206965243 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite Model without heated seat |
ALAT=Yes |
|||||||||
| 03 | Seat cover cloth | ANTHRAZIT | 1 | 52206965242 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/dark blue |
LCCU=Yes |
|||||||||
| 03 | Seat cover leather | DUNKELBLAU | 1 | 52209126497 | $1097.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/black" |
NASW=Yes |
|||||||||
| 03 | Seat cover leather | SCHWARZ | 1 | 52209116045 | $1227.40 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Reflex"/anthracite/black |
FLAT=Yes |
|||||||||
| 03 | Cloth/leather seat cover | ANTHRAZIT | 1 | 52209116003 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/anthrazit Model without heated seat |
ABAT=Yes |
|||||||||
| 03 | Seat cover cloth | ANTHRAZIT | 1 | 09/2005 | 52207136036 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/amethyst |
LCRH=Yes |
|||||||||
| 03 | Seat cover leather | AMETHYST | 1 | 03/2007 | 52207136063 | $1171.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 03 | Seat cover leather | GRAU | 1 | 03/2009 | 52207136061 | $1097.68 | ENDED | Shop at ECS Tuning | ||
| 03 | Seat cover leather | GRAU | 1 | 52207249448 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather filled napa "Skin"/schwarz |
LDSW=Yes |
|||||||||
| 03 | Seat cover leather | SCHWARZ | 1 | 03/2007 | 52207136069 | $1171.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid" or "Linea"/beige Model without heated seat |
ALBA=Yes |
|||||||||
| 03 | Seat cover cloth | BEIGE | 1 | 52206965244 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Reflex"/grey |
FLAD=Yes |
|||||||||
| 03 | Cloth/leather seat cover | GRAU | 1 | 52209116004 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/natural brown |
LCNG=Yes |
|||||||||
| 03 | Seat cover leather | NATURBRAUN | 1 | 52209126498 | $1097.68 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/tabak" |
NAF1=Yes |
|||||||||
| 03 | Seat cover leather | TABAK | 1 | 52209116046 | $1227.40 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/trüffel-braun |
LCTE=Yes |
|||||||||
| 03 | Seat cover leather | TRÜFFELBRAUN | 1 | 03/2007 | 52207136062 | $1171.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "React/Oregon"/anthrazit |
FBAT=Yes |
|||||||||
| 03 | Cloth/leather seat cover | ANTHRAZIT | 1 | 03/2007 | 52207136056 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 03 | Seat cover leather | SCHWARZ | 1 | 52207249447 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 03 | Seat cover leather | BEIGE | 1 | 52207136060 | $1097.68 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black Model without heated seat |
KBSW=Yes |
|||||||||
| 03 | Seat cover vinyl | SCHWARZ | 1 | 52207136040 | $295.74 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/beige Model without heated seat |
ABBA=Yes |
|||||||||
| 03 | Seat cover cloth | BEIGE | 1 | 09/2005 | 52207136038 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather, beige Model without heated seat |
KBBA=Yes |
|||||||||
| 03 | Seat cover vinyl | BEIGE | 1 | 52207136041 | $295.74 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/kastanienbraun |
LCRK=Yes |
|||||||||
| 03 | Seat cover leather | KASTANIENBRAUN | 1 | 03/2007 | 52207136064 | $1171.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather filled napa "Skin"/amethyst |
LDRH=Yes |
|||||||||
| 03 | Seat cover leather | AMETHYST | 1 | 03/2007 | 52207136070 | $1171.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 03 | Seat cover leather | BEIGE | 1 | 52207136073 | $1171.80 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/cream-beige/black" or Leather "Dakota"/creambeige |
LCCC=Yes LCGE=Yes |
|||||||||
| 03 | Seat cover leather | CREAMBEIGE | 1 | 52207249449 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 03 | Seat cover leather | SCHWARZ | 1 | 52207136072 | $1171.80 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sports package or Sports Edition and Cloth/leather flashlight/anthracite |
P337A=Yes P7MFA=Yes GAAT=Yes |
|||||||||
| 03 | Cloth/leather seat cover | ANTHRAZIT | 1 | 03/2007 | 52207918596 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sports package or Sports Edition and Cloth/leather "Flashlight/Saddle"/anthr. |
P337A=Yes P7MFA=Yes GGAT=Yes |
|||||||||
| 03 | Cloth/leather seat cover | ANTHRAZIT | 1 | 52208039490 | ENDED | Shop at ECS Tuning | ||||
| 04 | Supporting part, strip | 1 | 52207120492 | $18.86 | ENDED | Shop at ECS Tuning | ||||
| 05 | Foam plastic strip | 1 | 52207120491 | $18.86 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Edward"/grau |
ABAD=Yes |
|||||||||
| 06 | Strip cover | GRAU | 1 | 09/2005 | 52207125199 | $35.71 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabr./leath."React/Oregon"/trüffel-braun |
FBTE=Yes |
|||||||||
| 06 | Strip cover | TRÜFFELBRAUN | 1 | 03/2007 | 52207142565 | $77.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 06 | Cloth cover for strip | GRAU | 1 | 52206965211 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 06 | Cloth cover for strip | ANTHRAZIT | 1 | 52206965210 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/dark blue |
LCCU=Yes |
|||||||||
| 06 | Leather cover for strip | DUNKELBLAU | 1 | 52209126507 | $247.51 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/black" |
NASW=Yes |
|||||||||
| 06 | Leather cover for strip | SCHWARZ | 1 | 52209116054 | $247.51 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Reflex"/anthracite/black |
FLAT=Yes |
|||||||||
| 06 | Strip cover | SCHWARZ | 1 | 52207142569 | $257.80 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/anthrazit |
ABAT=Yes |
|||||||||
| 06 | Strip cover | ANTHRAZIT | 1 | 09/2005 | 52207125198 | $35.71 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/amethyst |
LCRH=Yes |
|||||||||
| 06 | Strip cover | AMETHYST | 1 | 03/2007 | 52207142573 | $257.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 06 | Strip cover | GRAU | 1 | 52207142571 | $257.80 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather filled napa "Skin"/schwarz |
LDSW=Yes |
|||||||||
| 06 | Strip cover | SCHWARZ | 1 | 03/2007 | 52207142580 | $257.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid" or "Linea"/beige |
ALBA=Yes |
|||||||||
| 06 | Cloth cover for strip | BEIGE | 1 | 52206965212 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/natural brown |
LCNG=Yes |
|||||||||
| 06 | Leather cover for strip | NATURBRAUN | 1 | 52209126508 | $247.51 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/tabak" |
NAF1=Yes |
|||||||||
| 06 | Leather cover for strip | TABAK | 1 | 52209116055 | $247.51 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/trüffel-braun |
LCTE=Yes |
|||||||||
| 06 | Strip cover | TRÜFFELBRAUN | 1 | 03/2007 | 52207142572 | $257.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "React/Oregon"/anthrazit |
FBAT=Yes |
|||||||||
| 06 | Strip cover | ANTHRAZIT | 1 | 03/2007 | 52207142564 | $77.56 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 06 | Strip cover | BEIGE | 1 | 52207142570 | $251.75 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
KBSW=Yes |
|||||||||
| 06 | Strip cover | SCHWARZ | 1 | 52207125205 | $35.71 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/beige |
ABBA=Yes |
|||||||||
| 06 | Strip cover | BEIGE | 1 | 09/2005 | 52207125200 | $35.71 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Imitation leather, beige |
KBBA=Yes |
|||||||||
| 06 | Strip cover | BEIGE | 1 | 52207125206 | $35.71 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/kastanienbraun |
LCRK=Yes |
|||||||||
| 06 | Strip cover | KASTANIENBRAUN | 1 | 03/2007 | 52207142574 | $257.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather filled napa "Skin"/amethyst |
LDRH=Yes |
|||||||||
| 06 | Strip cover | AMETHYST | 1 | 03/2007 | 52207142581 | $257.80 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 06 | Strip cover | BEIGE | 1 | 52207142584 | $257.80 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/cream-beige/black" or Leather "Dakota"/creambeige |
LCCC=Yes LCGE=Yes |
|||||||||
| 06 | Leather cover for strip | CREAMBEIGE | 1 | 52209126505 | $247.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 06 | Strip cover | SCHWARZ | 1 | 52207142583 | $257.80 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sports package or Sports Edition and Cloth/leather flashlight/anthracite |
P337A=Yes P7MFA=Yes GAAT=Yes |
|||||||||
| 06 | Strip cover | ANTHRAZIT | 1 | 03/2007 | 52207918626 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with M Sports package or Sports Edition and Cloth/leather "Flashlight/Saddle"/anthr. |
P337A=Yes P7MFA=Yes GGAT=Yes |
|||||||||
| 06 | Cover trim strip, fabric/leather | ANTHRAZIT | 1 | 52208039496 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Cover isofix | SCHWARZ | 4 | 52207022211 | $8.32 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover isofix | GRAU | 4 | 52207022212 | $8.32 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover isofix | BEIGE | 4 | 52207022213 | $8.32 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover isofix | AMETHYST | 4 | 52207147374 | $8.32 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover isofix | CREAMBEIGE | 4 | 52209116305 | $8.32 | Shop at ECS Tuning | ||||
| 07 | Cover isofix | NATURBRAUN | 4 | 52209116307 | Shop at ECS Tuning | |||||
| 08 | Foam plastic part left backrest | 1 | 52207065049 | $124.99 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/grau Model without heated seat |
ABAD=Yes |
|||||||||
| 09 | Cover backrest cloth left | GRAU | 1 | 09/2005 | 52207118945 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabr./leath."React/Oregon"/trüffel-braun |
FBTE=Yes |
|||||||||
| 09 | Left cloth/leather backrest cover | TRÜFFELBRAUN | 1 | 03/2007 | 52207125287 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey Model without heated seat |
ALAD=Yes |
|||||||||
| 09 | Cover backrest cloth left | GRAU | 1 | 52206964849 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite Model without heated seat |
ALAT=Yes |
|||||||||
| 09 | Cover backrest cloth left | ANTHRAZIT | 1 | 52206964847 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/dark blue |
LCCU=Yes |
|||||||||
| 09 | Cover backrest leather left | DUNKELBLAU | 1 | 52209126501 | $585.96 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/black" |
NASW=Yes |
|||||||||
| 09 | Cover backrest leather left | SCHWARZ | 1 | 52209116049 | $585.96 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Reflex"/anthracite/black |
FLAT=Yes |
|||||||||
| 09 | Left cloth/leather backrest cover | ANTHRAZIT | 1 | 52209116007 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/anthrazit Model without heated seat |
ABAT=Yes |
|||||||||
| 09 | Cover backrest cloth left | ANTHRAZIT | 1 | 09/2005 | 52207065545 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/amethyst |
LCRH=Yes |
|||||||||
| 09 | Cover backrest leather left | AMETHYST | 1 | 03/2007 | 52207125237 | $580.32 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 09 | Cover backrest leather left | GRAU | 1 | 52207125233 | $580.32 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather filled napa "Skin"/schwarz |
LDSW=Yes |
|||||||||
| 09 | Cover backrest leather left | SCHWARZ | 1 | 03/2007 | 52207125255 | $638.91 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid" or "Linea"/beige Model without heated seat |
ALBA=Yes |
|||||||||
| 09 | Cover backrest cloth left | BEIGE | 1 | 52206964851 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Reflex"/grey |
FLAD=Yes |
|||||||||
| 09 | Left cloth/leather backrest cover | GRAU | 1 | 52209116009 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/natural brown |
LCNG=Yes |
|||||||||
| 09 | Cover backrest leather left | NATURBRAUN | 1 | 52209126503 | $585.96 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/tabak" |
NAF1=Yes |
|||||||||
| 09 | Cover backrest leather left | TABAK | 1 | 52209116051 | $585.96 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/trüffel-braun |
LCTE=Yes |
|||||||||
| 09 | Cover backrest leather left | TRÜFFELBRAUN | 1 | 03/2007 | 52207125235 | $580.32 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "React/Oregon"/anthrazit |
FBAT=Yes |
|||||||||
| 09 | Left cloth/leather backrest cover | ANTHRAZIT | 1 | 03/2007 | 52207125285 | $421.85 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 09 | Cover backrest leather left | SCHWARZ | 1 | 52207125229 | $580.32 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 09 | Cover backrest leather left | BEIGE | 1 | 52207125231 | $580.32 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black Model without heated seat |
KBSW=Yes |
|||||||||
| 09 | Cover backrest vinyl left | SCHWARZ | 1 | 52207125209 | $179.68 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/beige Model without heated seat |
ABBA=Yes |
|||||||||
| 09 | Cover backrest cloth left | BEIGE | 1 | 09/2005 | 52207118947 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather, beige Model without heated seat |
KBBA=Yes |
|||||||||
| 09 | Cover backrest vinyl left | BEIGE | 1 | 52207125211 | $179.68 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/kastanienbraun |
LCRK=Yes |
|||||||||
| 09 | Cover backrest leather left | KASTANIENBRAUN | 1 | 03/2007 | 52207125239 | $580.32 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather filled napa "Skin"/amethyst |
LDRH=Yes |
|||||||||
| 09 | Cover backrest leather left | AMETHYST | 1 | 03/2007 | 52207125257 | $638.91 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 09 | Cover backrest leather left | BEIGE | 1 | 52207125293 | $638.91 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/cream-beige/black" or Leather "Dakota"/creambeige |
LCCC=Yes LCGE=Yes |
|||||||||
| 09 | Cover backrest leather left | CREAMBEIGE | 1 | 52209126499 | $585.96 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 09 | Cover backrest leather left | SCHWARZ | 1 | 52207125291 | $638.91 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sports package or Sports Edition and Cloth/leather flashlight/anthracite |
P337A=Yes P7MFA=Yes GAAT=Yes |
|||||||||
| 09 | Left cloth/leather backrest cover | ANTHRAZIT | 1 | 03/2007 | 52207918601 | $537.91 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package or Sports Edition and Cloth/leather "Flashlight/Saddle"/anthr. |
P337A=Yes P7MFA=Yes GGAT=Yes |
|||||||||
| 09 | Left cloth/leather backrest cover | ANTHRAZIT | 1 | 52208039493 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Foam section, backrest, right | 1 | 52207065050 | $124.99 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/grau Model without heated seat |
ABAD=Yes |
|||||||||
| 11 | Cover backrest cloth right | GRAU | 1 | 09/2005 | 52207118946 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabr./leath."React/Oregon"/trüffel-braun |
FBTE=Yes |
|||||||||
| 11 | Right cloth/leather backrest cover | TRÜFFELBRAUN | 1 | 03/2007 | 52207125288 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey Model without heated seat |
ALAD=Yes |
|||||||||
| 11 | Cover backrest cloth right | GRAU | 1 | 52206964850 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite Model without heated seat |
ALAT=Yes |
|||||||||
| 11 | Cover backrest cloth right | ANTHRAZIT | 1 | 52206964848 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/dark blue |
LCCU=Yes |
|||||||||
| 11 | Cover backrest leather right | DUNKELBLAU | 1 | 52209126502 | $377.65 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/black" |
NASW=Yes |
|||||||||
| 11 | Cover backrest leather right | SCHWARZ | 1 | 52209116050 | $585.96 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Reflex"/anthracite/black |
FLAT=Yes |
|||||||||
| 11 | Right cloth/leather backrest cover | ANTHRAZIT | 1 | 52209116008 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/anthrazit Model without heated seat |
ABAT=Yes |
|||||||||
| 11 | Cover backrest cloth right | ANTHRAZIT | 1 | 09/2005 | 52207065546 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/amethyst |
LCRH=Yes |
|||||||||
| 11 | Cover backrest leather right | AMETHYST | 1 | 03/2007 | 52207125238 | $478.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 11 | Cover backrest leather right | GRAU | 1 | 52207125234 | $478.76 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather filled napa "Skin"/schwarz |
LDSW=Yes |
|||||||||
| 11 | Cover backrest leather right | SCHWARZ | 1 | 03/2007 | 52207125256 | $533.45 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid" or "Linea"/beige Model without heated seat |
ALBA=Yes |
|||||||||
| 11 | Cover backrest cloth right | BEIGE | 1 | 52206964852 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Reflex"/grey |
FLAD=Yes |
|||||||||
| 11 | Right cloth/leather backrest cover | GRAU | 1 | 52209116010 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/natural brown |
LCNG=Yes |
|||||||||
| 11 | Cover backrest leather right | NATURBRAUN | 1 | 52209126504 | $377.65 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/tabak" |
NAF1=Yes |
|||||||||
| 11 | Cover backrest leather right | TABAK | 1 | 52209116052 | $585.96 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/trüffel-braun |
LCTE=Yes |
|||||||||
| 11 | Cover backrest leather right | TRÜFFELBRAUN | 1 | 03/2007 | 52207125236 | $478.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Fabric/leather "React/Oregon"/anthrazit |
FBAT=Yes |
|||||||||
| 11 | Right cloth/leather backrest cover | ANTHRAZIT | 1 | 03/2007 | 52207125286 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 11 | Cover backrest leather right | SCHWARZ | 1 | 52207125230 | $478.76 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 11 | Cover backrest leather right | BEIGE | 1 | 52207125232 | $478.76 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black Model without heated seat |
KBSW=Yes |
|||||||||
| 11 | Cover backrest vinyl right | SCHWARZ | 1 | 52207125210 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/beige Model without heated seat |
ABBA=Yes |
|||||||||
| 11 | Cover backrest cloth right | BEIGE | 1 | 09/2005 | 52207118948 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather, beige Model without heated seat |
KBBA=Yes |
|||||||||
| 11 | Cover backrest vinyl right | BEIGE | 1 | 52207125212 | $158.47 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/kastanienbraun |
LCRK=Yes |
|||||||||
| 11 | Cover backrest leather right | KASTANIENBRAUN | 1 | 03/2007 | 52207125240 | $478.76 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather filled napa "Skin"/amethyst |
LDRH=Yes |
|||||||||
| 11 | Cover backrest leather right | AMETHYST | 1 | 03/2007 | 52207125258 | $533.45 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 11 | Cover backrest leather right | BEIGE | 1 | 52207125294 | $533.45 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/cream-beige/black" or Leather "Dakota"/creambeige |
LCCC=Yes LCGE=Yes |
|||||||||
| 11 | Cover backrest leather right | CREAMBEIGE | 1 | 52209126500 | $377.65 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 11 | Cover backrest leather right | SCHWARZ | 1 | 52207125292 | $533.45 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sports package or Sports Edition and Cloth/leather flashlight/anthracite |
P337A=Yes P7MFA=Yes GAAT=Yes |
|||||||||
| 11 | Right cloth/leather backrest cover | ANTHRAZIT | 1 | 03/2007 | 52207918602 | $537.91 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with M Sports package or Sports Edition and Cloth/leather "Flashlight/Saddle"/anthr. |
P337A=Yes P7MFA=Yes GGAT=Yes |
|||||||||
| 11 | Right cloth/leather backrest cover | ANTHRAZIT | 1 | 52208039494 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Edward"/grau |
ABAD=Yes |
|||||||||
| 12 | Side finisher cloth, left | GRAU | 1 | 09/2005 | 52207118951 | ENDED | Shop at ECS Tuning | |||
| 12 | Side finisher cloth, right | GRAU | 1 | 09/2005 | 52207118952 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 12 | Side finisher cloth, left | GRAU | 1 | 52206965153 | ENDED, +core | Shop at ECS Tuning | ||||
| 12 | Side finisher cloth, right | GRAU | 1 | 52206965154 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 12 | Side finisher cloth, left | ANTHRAZIT | 1 | 52206965151 | ENDED, +core | Shop at ECS Tuning | ||||
| 12 | Side finisher cloth, right | ANTHRAZIT | 1 | 52206965152 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/dark blue |
LCCU=Yes |
|||||||||
| 12 | Side finisher, leather, left | DUNKELBLAU | 1 | 52209126195 | $287.16 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | DUNKELBLAU | 1 | 52209126196 | $287.16 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/black" |
NASW=Yes |
|||||||||
| 12 | Side finisher, leather, left | SCHWARZ | 1 | 52209116061 | $318.28 | ENDED | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | SCHWARZ | 1 | 52209116062 | $318.28 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Reflex"/anthracite/black |
FLAT=Yes |
|||||||||
| 12 | Side finisher, leather, left | SCHWARZ | 1 | 52207119123 | $329.22 | ENDED | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | SCHWARZ | 1 | 52207119124 | $318.28 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/anthrazit |
ABAT=Yes |
|||||||||
| 12 | Side finisher cloth, right | ANTHRAZIT | 1 | 09/2005 | 52207065576 | ENDED | Shop at ECS Tuning | |||
| 12 | Side finisher cloth, left | ANTHRAZIT | 1 | 09/2005 | 52207065579 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/amethyst |
LCRH=Yes |
|||||||||
| 12 | Side finisher, leather, left | AMETHYST | 1 | 03/2007 | 52207119129 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Side finisher, leather, right | AMETHYST | 1 | 03/2007 | 52207119130 | $329.22 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 12 | Side finisher, leather, left | GRAU | 1 | 52207119125 | $329.22 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | GRAU | 1 | 52207119126 | $318.28 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather filled napa "Skin"/schwarz |
LDSW=Yes |
|||||||||
| 12 | Side finisher, leather, left | SCHWARZ | 1 | 03/2007 | 52207131705 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Side finisher, leather, right | SCHWARZ | 1 | 03/2007 | 52207131706 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid" or "Linea"/beige |
ALBA=Yes |
|||||||||
| 12 | Side finisher cloth, left | BEIGE | 1 | 52206965155 | ENDED, +core | Shop at ECS Tuning | ||||
| 12 | Side finisher cloth, right | BEIGE | 1 | 52206965156 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/natural brown |
LCNG=Yes |
|||||||||
| 12 | Side finisher, leather, left | NATURBRAUN | 1 | 52209126197 | $287.16 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | NATURBRAUN | 1 | 52209126198 | $287.16 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/tabak" |
NAF1=Yes |
|||||||||
| 12 | Side finisher, leather, left | TABAK | 1 | 52209116063 | $318.28 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | TABAK | 1 | 52209116064 | $318.28 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 12 | Side finisher, leather, left | BEIGE | 1 | 52207119127 | $318.28 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | BEIGE | 1 | 52207119128 | $329.22 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
KBSW=Yes |
|||||||||
| 12 | Side section, imitation leather, left | SCHWARZ | 1 | 03/2007 | 52207131701 | $147.31 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Side section, imitation leather, right | SCHWARZ | 1 | 03/2007 | 52207131702 | $147.31 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Side section, imitation leather, left | SCHWARZ | 1 | 52209137003 | $138.21 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side section, imitation leather, right | SCHWARZ | 1 | 52209137004 | $138.21 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Edward"/beige |
ABBA=Yes |
|||||||||
| 12 | Side finisher cloth, left | BEIGE | 1 | 09/2005 | 52207118953 | ENDED | Shop at ECS Tuning | |||
| 12 | Side finisher cloth, right | BEIGE | 1 | 09/2005 | 52207118954 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather, beige |
KBBA=Yes |
|||||||||
| 12 | Side section, imitation leather, left | BEIGE | 1 | 03/2007 | 52207131703 | $147.31 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Side section, imitation leather, right | BEIGE | 1 | 03/2007 | 52207131704 | $147.31 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Side section, imitation leather, left | BEIGE | 1 | 52209137005 | $138.21 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side section, imitation leather, right | BEIGE | 1 | 52209137006 | $138.21 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/kastanienbraun |
LCRK=Yes |
|||||||||
| 12 | Side finisher, leather, left | KASTANIENBRAUN | 1 | 03/2007 | 52207119131 | $329.22 | ENDED | Shop at ECS Tuning | ||
| 12 | Side finisher, leather, right | KASTANIENBRAUN | 1 | 03/2007 | 52207119132 | $329.22 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather filled napa "Skin"/amethyst |
LDRH=Yes |
|||||||||
| 12 | Side finisher, leather, left | AMETHYST | 1 | 03/2007 | 52207131707 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Side finisher, leather, right | AMETHYST | 1 | 03/2007 | 52207131708 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 12 | Side finisher, leather, left | BEIGE | 1 | 52207119139 | $380.56 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | BEIGE | 1 | 52207119140 | $380.56 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/cream-beige/black" or Leather "Dakota"/creambeige |
LCCC=Yes LCGE=Yes |
|||||||||
| 12 | Side finisher, leather, left | CREAMBEIGE | 1 | 52209126193 | $287.16 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | CREAMBEIGE | 1 | 52209126194 | $287.16 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 12 | Side finisher, leather, left | SCHWARZ | 1 | 52207119137 | $380.56 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Side finisher, leather, right | SCHWARZ | 1 | 52207119138 | $380.56 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabr./leath."React/Oregon"/trüffel-braun or Leather "Dakota"/trüffel-braun |
FBTE=Yes LCTE=Yes |
|||||||||
| 12 | Side finisher, leather, left | TRÜFFELBRAUN | 1 | 03/2007 | 52207119133 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Side finisher, leather, right | TRÜFFELBRAUN | 1 | 03/2007 | 52207119134 | $329.22 | ENDED, +core | Shop at ECS Tuning | ||
| 13 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 14 | Clamp | 1,8X23,6X12,3MM | X | 52107075819 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Cellular material pad | 200X225X10 | 2 | 54137180747 | $7.41 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 525i Seat rear, upholstery & cover base seat?
- This technical diagram illustrates the Seat rear, upholstery & cover base seat within the Seats group for the 5 Series E61 525i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Seat frame (Part #52207058581).
- Which models use the hardware listed in this Seat rear, upholstery & cover base seat?
- The hardware and components featured in the Seat rear, upholstery & cover base seat are specific to the 5 Series E61 525i produced during 2005. These technical specifications ensure that parts like the Seat frame (52207058581) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat rear, upholstery & cover base seat assembly?
- Each item in the Seat rear, upholstery & cover base seat corresponds to the numbered list below the illustration. For the 5 Series E61 525i, you can identify the Seat frame by locating its position on the schematic, which then links to the official BMW part number 52207058581 for the Seats section.
