Seat, rear, seat frame, load-through for BMW 5 Series E61 LCI 525xi (2010)

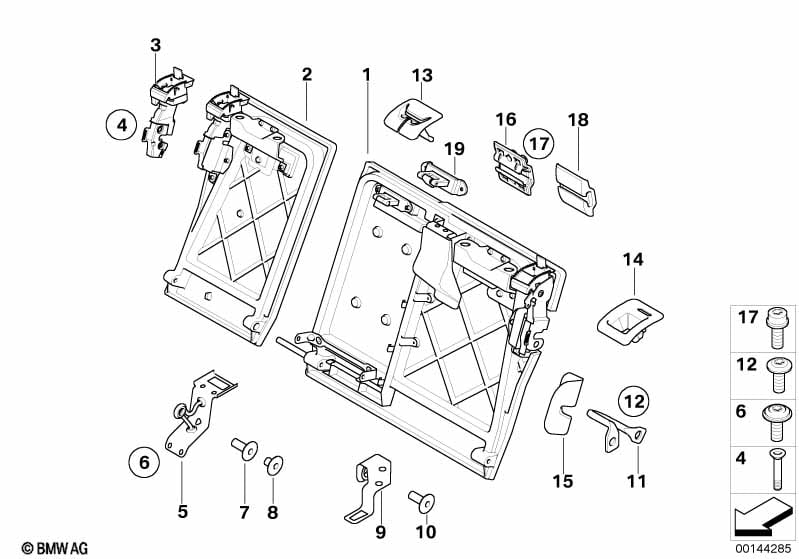

This Seat, rear, seat frame, load-through technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Backrest frame, left | ANTHRAZIT | 1 | 52206968459 | ENDED | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | BEIGE | 1 | 52206968461 | ENDED | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | GRAU | 1 | 52206968463 | ENDED | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | CREAMBEIGE | 1 | 52209133759 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Ski bag |
S464A=Yes |
|||||||||
| 01 | Backrest frame, left | ANTHRAZIT | 1 | 52206968469 | ENDED | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | BEIGE | 1 | 52206968471 | ENDED | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | GRAU | 1 | 52206968473 | ENDED | Shop at ECS Tuning | ||||
| 01 | Backrest frame, left | CREAMBEIGE | 1 | 52209133793 | ENDED | Shop at ECS Tuning | ||||
| 02 | Backrest frame, right | ANTHRAZIT | 1 | 52206968460 | ENDED | Shop at ECS Tuning | ||||
| 02 | Backrest frame, right | BEIGE | 1 | 52206968462 | ENDED | Shop at ECS Tuning | ||||
| 02 | Backrest frame, right | GRAU | 1 | 52206968464 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock left | 1 | 52207153667 | $36.83 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Lock right | 1 | 52207153668 | $41.42 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Screw | 4 | 52208267018 | $0.63 | Shop at ECS Tuning | |||||
| 05 | Center Mount | 1 | 52207121231 | $15.85 | ENDED | Shop at ECS Tuning | ||||
| 06 | Torx screw with collar | M8X20 T30 | 8 | 07147124309 | $0.80 | Shop at ECS Tuning | ||||
| 07 | Bush, long | 1 | 52207131071 | $1.40 | Shop at ECS Tuning | |||||
| 08 | Bush, short | 1 | 52207131070 | $0.84 | Shop at ECS Tuning | |||||
| 09 | Bearing exterior left | 1 | 52207121229 | $4.41 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bearing exterior right | 1 | 52207121230 | $4.41 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bearing screw | 2 | 07147124903 | $3.69 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bar left | SCHWARZ | 1 | 52207141991 | $8.80 | Shop at ECS Tuning | ||||
| 11 | Bar right | SCHWARZ | 1 | 52207141992 | $8.80 | Shop at ECS Tuning | ||||
| 12 | Combi oval-head machine screw | ISA M8X20 | 4 | 07147234925 | Shop at ECS Tuning | |||||
| 13 | Cover, belt outlet | SCHWARZ | 1 | 52207118888 | $4.97 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover, belt outlet | GRAU | 1 | 52207118889 | $5.83 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover, belt outlet | BEIGE | 1 | 52207118890 | $4.97 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover, belt outlet | AMETHYST | 1 | 52207147371 | $4.97 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover, belt outlet | CREAMBEIGE | 1 | 52209116295 | ENDED | Shop at ECS Tuning | ||||
| 14 | Trim cover, lock assembly, left | SCHWARZ | 1 | 52207118905 | $3.77 | Shop at ECS Tuning | ||||
| 14 | Trim cover, lock assembly, right | SCHWARZ | 1 | 52207118906 | $3.18 | Shop at ECS Tuning | ||||
| 14 | Cover, left control | GRAU | 1 | 52207118907 | $3.77 | ENDED | Shop at ECS Tuning | |||
| 14 | Cover, right control | GRAU | 1 | 52207118908 | $3.18 | ENDED | Shop at ECS Tuning | |||
| 14 | Cover, left control | BEIGE | 1 | 52207118909 | $3.77 | ENDED | Shop at ECS Tuning | |||
| 14 | Cover, right control | BEIGE | 1 | 52207118910 | $3.18 | ENDED | Shop at ECS Tuning | |||
| 14 | Cover, left control | AMETHYST | 1 | 52207147379 | $3.84 | ENDED | Shop at ECS Tuning | |||
| 14 | Cover, right control | AMETHYST | 1 | 52207147380 | $3.18 | ENDED | Shop at ECS Tuning | |||
| 14 | Cover, left control | CREAMBEIGE | 1 | 52209116297 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cover, right control | CREAMBEIGE | 1 | 52209116298 | ENDED | Shop at ECS Tuning | ||||
| 14 | Trim cover, lock assembly, left | NATURBRAUN | 1 | 52209116299 | ENDED, NoS | Shop at ECS Tuning | ||||
| 14 | Trim cover, lock assembly, right | NATURBRAUN | 1 | 52209116300 | ENDED, NoS | Shop at ECS Tuning | ||||
| 15 | Lock panel, left | SCHWARZ | 1 | 52207118915 | $3.35 | Shop at ECS Tuning | ||||
| 15 | Lock panel, right | SCHWARZ | 1 | 52207118916 | $3.35 | Shop at ECS Tuning | ||||
| 15 | Lock panel, left | GRAU | 1 | 52207118917 | $3.35 | ENDED | Shop at ECS Tuning | |||
| 15 | Lock panel, right | GRAU | 1 | 52207118918 | $3.62 | Shop at ECS Tuning | ||||
| 15 | Lock panel, left | BEIGE | 1 | 52207118919 | $3.35 | ENDED | Shop at ECS Tuning | |||
| 15 | Lock panel, right | BEIGE | 1 | 52207118920 | $3.35 | ENDED | Shop at ECS Tuning | |||
| 15 | Lock panel, left | AMETHYST | 1 | 52207147381 | $3.35 | ENDED | Shop at ECS Tuning | |||
| 15 | Lock panel, right | AMETHYST | 1 | 52207147382 | $3.35 | ENDED | Shop at ECS Tuning | |||
| 15 | Lock panel, left | CREAMBEIGE | 1 | 52209116301 | Shop at ECS Tuning | |||||
| 15 | Lock panel, right | CREAMBEIGE | 1 | 52209116302 | Shop at ECS Tuning | |||||
| 16 | Support f roller blind, backrest | 1 | 51479149454 | $35.36 | Shop at ECS Tuning | |||||
| 17 | Fillister head with washer | M6X20-SB-Z1-8.8 | 4 | 07119900514 | $1.93 | Shop at ECS Tuning | ||||
| 18 | Cover f roller cover support | BEIGE | 2 | 51477076858 | $2.29 | ENDED | Shop at ECS Tuning | |||
| 18 | Cover f roller cover support | GRAU | 2 | 51477118191 | $2.30 | ENDED | Shop at ECS Tuning | |||
| 18 | Cover f roller cover support | SCHWARZ | 2 | 51478235624 | $2.30 | Shop at ECS Tuning | ||||
| 19 | Hood catch | 1 | 52207065851 | $21.89 | Shop at ECS Tuning | |||||
