Rear seat center armrest for BMW 5 Series E61 535d (2007)

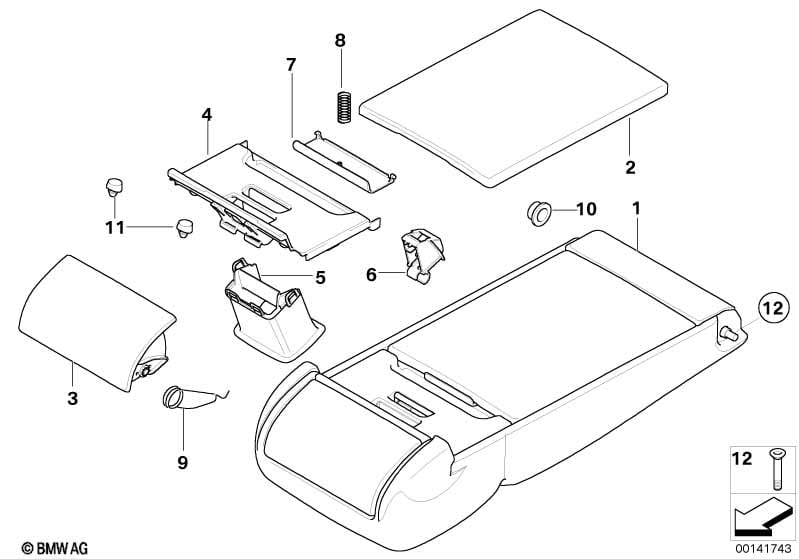

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth/leather "Reflex"/grey |
FLAD=Yes |
|||||||||
| 01 | Armrest rear, leather | GRAU | 1 | 52207118957 | $652.32 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/dark blue |
LCCU=Yes |
|||||||||
| 01 | Armrest rear, leather | DUNKELBLAU | 1 | 52209126183 | $652.32 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
KBSW=Yes |
|||||||||
| 01 | Armrest, rear, imitation leather | SCHWARZ | 1 | 52209136995 | $457.04 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 01 | Armrest, rear, fabric | ANTHRAZIT | 1 | 52206964862 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 01 | Armrest, rear, fabric | GRAU | 1 | 52206964863 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/beige |
ALBA=Yes |
|||||||||
| 01 | Armrest, rear, fabric | BEIGE | 1 | 52206964864 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Armrest rear, leather | GRAU | 1 | 52207118957 | $652.32 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/natural brown |
LCNG=Yes |
|||||||||
| 01 | Armrest rear, leather | NATURBRAUN | 1 | 52209126184 | $652.32 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Armrest rear, leather | SCHWARZ | 1 | 52207245856 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Nappa/tabak" |
NAF1=Yes |
|||||||||
| 01 | Armrest rear, leather | TABAK | 1 | 52209116058 | $719.80 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "React/Oregon"/anthrazit |
FBAT=Yes |
|||||||||
| 01 | Armrest rear, leather | SCHWARZ | 1 | 52207245856 | Shop at ECS Tuning | |||||
| 01 | Armrest rear, leather | SCHWARZ | 1 | 52207245856 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 01 | Armrest rear, leather | BEIGE | 1 | 52207118958 | $652.32 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather, beige |
KBBA=Yes |
|||||||||
| 01 | Armrest, rear, imitation leather | BEIGE | 1 | 52209136996 | $457.04 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Flashlight/Saddle"/anthr. or Leather "Nappa/black" |
GGAT=Yes NASW=Yes |
|||||||||
| 01 | Armrest rear, leather | SCHWARZ | 1 | 52209116057 | $719.80 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 01 | Armrest rear, leather | SCHWARZ | 1 | 52207119040 | $683.55 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/cream-beige/black" or Leather "Dakota"/creambeige |
LCCC=Yes LCGE=Yes |
|||||||||
| 01 | Armrest rear, leather | CREAMBEIGE | 1 | 09/2009 | 52207245858 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 01 | Armrest rear, leather | BEIGE | 1 | 52207119047 | $683.55 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Reflex"/grey |
FLAD=Yes |
|||||||||
| 02 | Cover, through-load.syst armrest leather | BEIGE | 1 | 52207135894 | $187.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/dark blue |
LCCU=Yes |
|||||||||
| 02 | Armrest upper leather | DUNKELBLAU | 1 | 52209129132 | $299.59 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
KBSW=Yes |
|||||||||
| 02 | Upper armrest vinyl | SCHWARZ | 1 | 52209137016 | $235.17 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Flashlight/Saddle"/anthr. |
GGAT=Yes |
|||||||||
| 02 | Armrest, upper section, fabric-leather | ANTHRAZIT | 1 | 52208039604 | $362.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 02 | Cover, through-load. syst armrest cloth | ANTHRAZIT | 1 | 52206965983 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 02 | Cover, through-load. syst armrest cloth | GRAU | 1 | 52206965985 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Reflex"/anthracite/black |
FLAT=Yes |
|||||||||
| 02 | Cover, through-load.syst armrest leather | SCHWARZ | 1 | 52207135893 | $187.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/beige |
ALBA=Yes |
|||||||||
| 02 | Cover, through-load. syst armrest cloth | ANTHRAZIT | 1 | 52206965983 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 02 | Cover, through-load.syst armrest leather | GRAU | 1 | 52207135895 | $187.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/natural brown |
LCNG=Yes |
|||||||||
| 02 | Armrest upper leather | NATURBRAUN | 1 | 52209129133 | $299.59 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 02 | Cover, through-load.syst armrest leather | SCHWARZ | 1 | 52207135893 | $187.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Nappa/tabak" |
NAF1=Yes |
|||||||||
| 02 | Armrest upper leather | TABAK | 1 | 52209119585 | $362.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 02 | Cover, through-load.syst armrest leather | BEIGE | 1 | 52207135894 | $187.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather, beige |
KBBA=Yes |
|||||||||
| 02 | Upper armrest vinyl | BEIGE | 1 | 52209137017 | $235.17 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 02 | Cover, through-load.syst armrest leather | SCHWARZ | 1 | 52207135893 | $187.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/cream-beige/black" or Leather "Dakota"/creambeige |
LCCC=Yes LCGE=Yes |
|||||||||
| 02 | Armrest upper leather | CREAMBEIGE | 1 | 52209129131 | $299.59 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 02 | Cover, through-load.syst armrest leather | BEIGE | 1 | 52207135894 | $187.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Reflex"/grey |
FLAD=Yes |
|||||||||
| 03 | Cover f cup holder | GRAU | 1 | 52207160467 | $110.01 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/dark blue |
LCCU=Yes |
|||||||||
| 03 | Cover f cup holder | DUNKELBLAU | 1 | 52209129139 | $110.01 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
KBSW=Yes |
|||||||||
| 03 | Cover f cup holder | SCHWARZ | 1 | 52209137018 | $65.87 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 03 | Cover f cup holder | ANTHRAZIT | 1 | 52206969574 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 03 | Cover f cup holder | GRAU | 1 | 52206969576 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Reflex"/anthracite/black |
FLAT=Yes |
|||||||||
| 03 | Cover f cup holder | SCHWARZ | 1 | 52207160465 | $110.01 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/beige |
ALBA=Yes |
|||||||||
| 03 | Cover f cup holder | BEIGE | 1 | 52206969575 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 03 | Cover f cup holder | GRAU | 1 | 52207160467 | $110.01 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/natural brown |
LCNG=Yes |
|||||||||
| 03 | Cover f cup holder | NATURBRAUN | 1 | 52209129144 | $110.01 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 03 | Cover f cup holder | SCHWARZ | 1 | 52207160465 | $110.01 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nappa/tabak" |
NAF1=Yes |
|||||||||
| 03 | Cover f cup holder | TABAK | 1 | 52209119588 | $110.01 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCBA=Yes |
|||||||||
| 03 | Cover f cup holder | BEIGE | 1 | 52207160466 | $110.01 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather, beige |
KBBA=Yes |
|||||||||
| 03 | Cover f cup holder | BEIGE | 1 | 52209137019 | $65.87 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Flashlight/Saddle"/anthr. or Leather "Nappa/black" |
GGAT=Yes NASW=Yes |
|||||||||
| 03 | Cover f cup holder | SCHWARZ | 1 | 52209119587 | $110.01 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/black |
S453A=Yes U6SW=Yes |
|||||||||
| 03 | Cover f cup holder | SCHWARZ | 1 | 52207160465 | $110.01 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/cream-beige/black" or Leather "Dakota"/creambeige |
LCCC=Yes LCGE=Yes |
|||||||||
| 03 | Cover f cup holder | CREAMBEIGE | 1 | 52209129134 | $110.01 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Climate-controlled seats, front and Leather "Nasca"/beige |
S453A=Yes U6BA=Yes |
|||||||||
| 03 | Cover f cup holder | BEIGE | 1 | 52207160466 | $110.01 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover, release | SCHWARZ | 1 | 52207153671 | $12.75 | Shop at ECS Tuning | ||||
| 04 | Cover, release | BEIGE | 1 | 52207153672 | $11.81 | Shop at ECS Tuning | ||||
| 04 | Cover, release | GRAU | 1 | 52207153673 | $11.81 | Shop at ECS Tuning | ||||
| 04 | Cover, release | CREAMBEIGE | 1 | 52209129149 | $12.75 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover, belt guide | SCHWARZ | 1 | 52207153675 | $6.81 | Shop at ECS Tuning | ||||
| 05 | Cover, belt guide | BEIGE | 1 | 52207153676 | $6.81 | Shop at ECS Tuning | ||||
| 05 | Cover, belt guide | GRAU | 1 | 52207153677 | $6.81 | Shop at ECS Tuning | ||||
| 05 | Cover, belt guide | CREAMBEIGE | 1 | 52209129151 | $7.36 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle | 2 | 52206951189 | $3.53 | Shop at ECS Tuning | |||||
| 08 | Spiral spring | 2 | 52206951190 | $1.23 | Shop at ECS Tuning | |||||
| 09 | Spring clip | 2 | 52206951193 | $1.23 | Shop at ECS Tuning | |||||
| 10 | Bush | 2 | 52207075289 | $0.77 | Shop at ECS Tuning | |||||
| 11 | Rubber buffer | 2 | 52206951191 | $0.87 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | M6X10,5 | 2 | 07147120393 | $0.80 | Shop at ECS Tuning | ||||
