Rear seat ski bag for BMW 5 Series E61 530xi (2007)

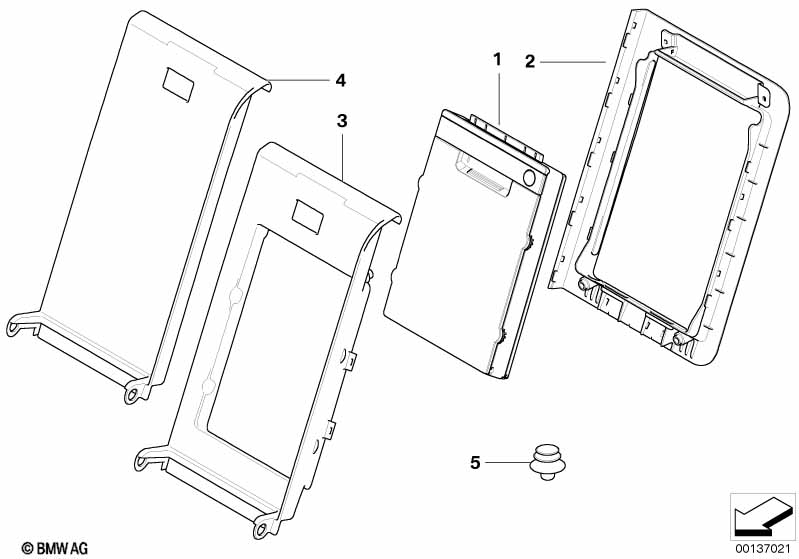

This Rear seat ski bag technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ski bag | GRAU | 1 | 52207153625 | ENDED | Shop at ECS Tuning | ||||
| 01 | Ski bag | BEIGE | 1 | 52207153626 | $370.88 | ENDED | Shop at ECS Tuning | |||
| Also suitable for trüffelbraun, rosenholz, rotorange dunkelblau, naturbraun, tabak |
||||||||||
| 01 | Ski bag | SCHWARZ | 1 | 52209146916 | $370.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Ski bag |
S464A=Yes |
|||||||||
| 02 | Frame ski bag | SCHWARZ | 1 | 52207147521 | $58.00 | Shop at ECS Tuning | ||||
| 02 | Frame ski bag | BEIGE | 1 | 52207147522 | $49.94 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Frame ski bag | GRAU | 1 | 52207147523 | $58.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Frame ski bag | CREAMBEIGE | 1 | 52209116331 | $58.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Armrest panel | BEIGE | 1 | 52207131716 | $66.96 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest panel | GRAU | 1 | 52207131717 | $66.96 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Armrest panel | CVREAMBEIGE | 1 | 52209116313 | $81.38 | Shop at ECS Tuning | ||||
| For vehicles with Ski bag Also suitable for trüffelbraun, rosenholz, rotorange dunkelblau, naturbraun, tabak |
S464A=Yes |
|||||||||
| 03 | Armrest panel | SCHWARZ | 1 | 52207131715 | $66.96 | Shop at ECS Tuning | ||||
| 04 | Armrest panel | GRAU | 1 | 52207075299 | $39.90 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest panel | BEIGE | 1 | 52207075302 | $46.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest panel | AMETHYST | 1 | 52207147377 | $39.90 | ENDED | Shop at ECS Tuning | |||
| 04 | Armrest panel | CREAMBEIGE | 1 | 52209116291 | $46.75 | ENDED | Shop at ECS Tuning | |||
| Also suitable for trüffelbraun, rosenholz, rotorange dunkelblau, naturbraun, tabak |
||||||||||
| 04 | Armrest panel | SCHWARZ | 1 | 52207075246 | $39.90 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
