Seat, front, head restraint for BMW 3 Series E90 320i (2007)

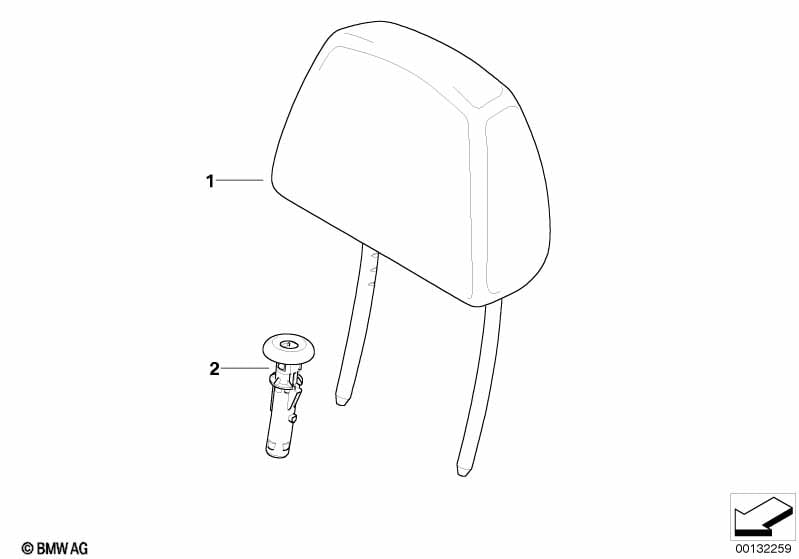

This Seat, front, head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Fluid"/beige |
ALB4=Yes |
|||||||||
| 01 | Head rest cloth | BEIGE | 2 | 52107147422 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/terra |
LCB8=Yes |
|||||||||
| 01 | Headrest leather | TERRA | 2 | 52107147448 | $223.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52107147444 | $223.00 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 2 | 52107147417 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/lemon |
LCB7=Yes |
|||||||||
| 01 | Headrest leather | LEMON | 2 | 52107147447 | $229.90 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 01 | Headrest leather | BEIGE | 2 | 52107147446 | $223.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather citrus/blue |
FFB5=Yes |
|||||||||
| 01 | Head rest cloth | BLAU | 2 | 52107147435 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52107147427 | $142.31 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite |
ALAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52107147420 | $146.20 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather citrus/quarz-blue |
FFB6=Yes |
|||||||||
| 01 | Head rest cloth | QUARZGRAU | 2 | 52107147436 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 01 | Headrest imitation leather | BEIGE | 2 | 52107147428 | $142.31 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 2 | 52107147445 | $223.00 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "citrus"/anthracite |
FFAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52107147434 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth/leather citrus/blue |
S481A=Yes FFB5=Yes |
|||||||||
| 01 | Head rest cloth | BLAU | 2 | 52107147469 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Sensatec/beige |
S481A=Yes KAB4=Yes |
|||||||||
| 01 | Headrest imitation leather | BEIGE | 2 | 52107147462 | $142.31 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth "blue shadow/Alcantara"/anthracite |
S481A=Yes ANAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52108036350 | $188.60 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Dakota"/terra |
S481A=Yes LCB8=Yes |
|||||||||
| 01 | Headrest leather | TERRA | 2 | 52107147482 | $223.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Dakota"/beige |
S481A=Yes LCB4=Yes |
|||||||||
| 01 | Headrest leather | BEIGE | 2 | 52107147480 | $223.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth/leather "citrus"/anthracite |
S481A=Yes FFAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52107147468 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth "Fluid" or "Linea"/anthracite |
S481A=Yes ALAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52107147454 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth "Fluid"/beige |
S481A=Yes ALB4=Yes |
|||||||||
| 01 | Head rest cloth | BEIGE | 2 | 52107147456 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth "Fluid" or "Linea"/grey |
S481A=Yes ALAD=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 2 | 52107147455 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth/leather citrus/quarz-blue |
S481A=Yes FFB6=Yes |
|||||||||
| 01 | Head rest cloth | QUARZGRAU | 2 | 52107147470 | $146.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Dakota"/schwarz |
S481A=Yes LCSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 52107147478 | $223.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Dakota"/grau |
S481A=Yes LCAD=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 2 | 52107147479 | $223.00 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Sensatec/black |
S481A=Yes KASW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52107147461 | $142.31 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather "Dakota"/lemon |
S481A=Yes LCB7=Yes |
|||||||||
| 01 | Headrest leather | LEMON | 2 | 52107147481 | $223.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau with key button |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 02 | Guide, headrest | GRAU | 1 | 52106955517 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau without key button |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 02 | Guide, headrest | GRAU | 1 | 52106955519 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige with key button |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Guide, headrest | BEIGE | 1 | 52106955518 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige without key button |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Guide, headrest | BEIGE | 1 | 52106955520 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota"/schwarz with key button |
ALAT=Yes ANAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes KASW=Yes LCB7=Yes LCB8=Yes LCSW=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 1 | 52107139518 | $6.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota"/schwarz without key button |
ALAT=Yes ANAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes KASW=Yes LCB7=Yes LCB8=Yes LCSW=Yes |
|||||||||
| 02 | Guide, headrest | SCHWARZ | 1 | 52107139521 | $6.29 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
