Front seat rail mechanical/single parts for BMW 3 Series E90 LCI 330i (2011)

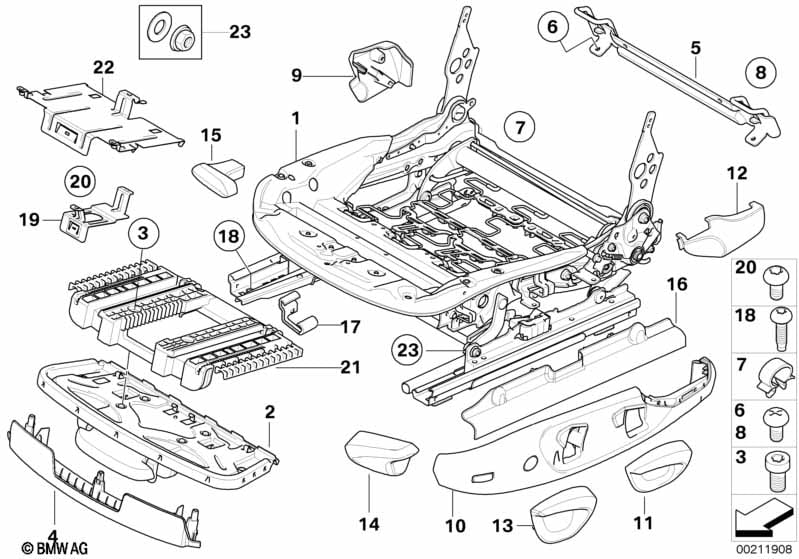

This Front seat rail mechanical/single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Important: For noise complaints Please work through test module for seat mechanism and use the repair kit part number 52 10 7 245 949 as required. Please work through test module for seat mechanism and use the repair kit part number 52 10 7 245 949 as required. Please work through test module for seat mechanism and use the repair kit part number 52 10 7 245 949 as required. |
||||||||||
| 01 | seat mechanism left | 1 | 52107118423 | $419.57 | Shop at ECS Tuning | |||||
| 01 | seat mechanism right | 1 | 52107118424 | $419.57 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | seat mechanism right | 1 | 52107139026 | $419.57 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat Important: For noise complaints Please work through test module for seat mechanism and use the repair kit part number 52 10 7 245 949 as required. Please work through test module for seat mechanism and use the repair kit part number 52 10 7 245 949 as required. Please work through test module for seat mechanism and use the repair kit part number 52 10 7 245 949 as required. |
S481A=Yes |
|||||||||
| 01 | seat mechanism left | 1 | 52107139025 | $419.57 | Shop at ECS Tuning | |||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 02 | Carrier thigh support | 2 | 52107161311 | $55.77 | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | BL 7,2X22 | 4 | 52107160653 | $0.42 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 04 | Seat trim, left | BEIGE | 1 | 52106958667 | $6.62 | Shop at ECS Tuning | ||||
| 04 | Seat trim, right | BEIGE | 1 | 52106958668 | $6.62 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 04 | Seat trim, left | GRAU | 1 | 52106958665 | $10.43 | Shop at ECS Tuning | ||||
| 04 | Seat trim, right | GRAU | 1 | 52106958666 | $6.62 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 04 | Seat trim, left | SCHWARZ | 1 | 52106958659 | $6.62 | Shop at ECS Tuning | ||||
| 04 | Seat trim, right | SCHWARZ | 1 | 52106958660 | $6.62 | Shop at ECS Tuning | ||||
| 05 | Isofix bracket | 2 | 52107129838 | $24.73 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M6X12 | 2 | 07147144879 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Cable holder | D=12,8MM | X | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M5X8 | 2 | 07147144880 | $0.96 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 09 | Trim, seat inner left | BEIGE | 1 | 52107157391 | $3.25 | Shop at ECS Tuning | ||||
| 09 | Trim, seat inner right | BEIGE | 1 | 52107157392 | $3.25 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 09 | Trim, seat inner left | GRAU | 1 | 52107157389 | $3.25 | Shop at ECS Tuning | ||||
| 09 | Trim, seat inner right | GRAU | 1 | 52107157390 | $3.25 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 09 | Trim, seat inner left | SCHWARZ | 1 | 52107118479 | $3.25 | Shop at ECS Tuning | ||||
| 09 | Trim, seat inner right | SCHWARZ | 1 | 52107118480 | $3.25 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige ONLY APPLIES TO VERTICAL SEAT ADJUSTING |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 10 | Trim, seat outer left | BEIGE | 1 | 52107157395 | $14.96 | Shop at ECS Tuning | ||||
| 10 | Trim, seat outer right | BEIGE | 1 | 52107157396 | $14.96 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau ONLY APPLIES TO VERTICAL SEAT ADJUSTING |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 10 | Trim, seat outer left | GRAU | 1 | 52107157393 | $12.81 | Shop at ECS Tuning | ||||
| 10 | Trim, seat outer right | GRAU | 1 | 52107157394 | $12.81 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz ONLY APPLIES TO VERTICAL SEAT ADJUSTING |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 10 | Trim, seat outer left | SCHWARZ | 1 | 52107118483 | $12.81 | Shop at ECS Tuning | ||||
| 10 | Trim, seat outer right | SCHWARZ | 1 | 52107118484 | $12.81 | Shop at ECS Tuning | ||||
| 11 | Lever left | 1 | 52107118441 | $7.46 | Shop at ECS Tuning | |||||
| 11 | Lever right | 1 | 52107118442 | $7.46 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 12 | Cover, belt catch left | BEIGE | 1 | 52107157409 | $3.88 | Shop at ECS Tuning | ||||
| 12 | Cover, belt catch right | BEIGE | 1 | 52107157410 | $3.88 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 12 | Cover, belt catch left | GRAU | 1 | 52107157407 | $3.88 | Shop at ECS Tuning | ||||
| 12 | Cover, belt catch right | GRAU | 1 | 52107157408 | $3.88 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 12 | Cover, belt catch left | SCHWARZ | 1 | 52107140507 | $3.88 | Shop at ECS Tuning | ||||
| 12 | Cover, belt catch right | SCHWARZ | 1 | 52107140508 | $3.88 | Shop at ECS Tuning | ||||
| 13 | Lever left | 1 | 52107118439 | $7.54 | Shop at ECS Tuning | |||||
| 13 | Lever right | 1 | 52107118440 | $7.54 | Shop at ECS Tuning | |||||
| 14 | Lever left | 1 | 52107139035 | $6.29 | Shop at ECS Tuning | |||||
| 14 | Lever right | 1 | 52107139036 | $6.29 | Shop at ECS Tuning | |||||
| 15 | Lever left | 1 | 52107118443 | $6.29 | Shop at ECS Tuning | |||||
| 15 | Lever right | 1 | 52107118444 | $6.29 | Shop at ECS Tuning | |||||
| 16 | Covering seat rail left | 1 | 52107118489 | $3.25 | Shop at ECS Tuning | |||||
| 16 | Covering seat rail right | 1 | 52107118490 | $3.25 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO SEAT RAIL front right/rear left |
||||||||||
| 17 | Covering cap, seat rail | SCHWARZ | 2 | 52109110103 | $0.66 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SEAT RAIL front left/rear right |
||||||||||
| 17 | Covering cap, seat rail | SCHWARZ | 2 | 52109110104 | $0.66 | Shop at ECS Tuning | ||||
| 18 | Fillister head screw | M10X37 | 4 | 07149156953 | $1.36 | Shop at ECS Tuning | ||||
| 19 | Bracket, control unit | 2 | 52107140863 | $17.57 | Shop at ECS Tuning | |||||
| 20 | Fillister head screw | M4X8 | 4 | 07147148547 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Connection element for thigh support | 2 | 52107161312 | $11.64 | Shop at ECS Tuning | |||||
| 22 | Bracket control unit left | 1 | 52107152229 | Shop at ECS Tuning | ||||||
| 22 | Bracket control unit right | 1 | 52107152230 | $16.20 | Shop at ECS Tuning | |||||
| 23 | Spare parts kit | 1 | 52107245949 | $12.32 | Shop at ECS Tuning | |||||
