Rear seat head restraint for BMW 3 Series E90 LCI 320d (2010)

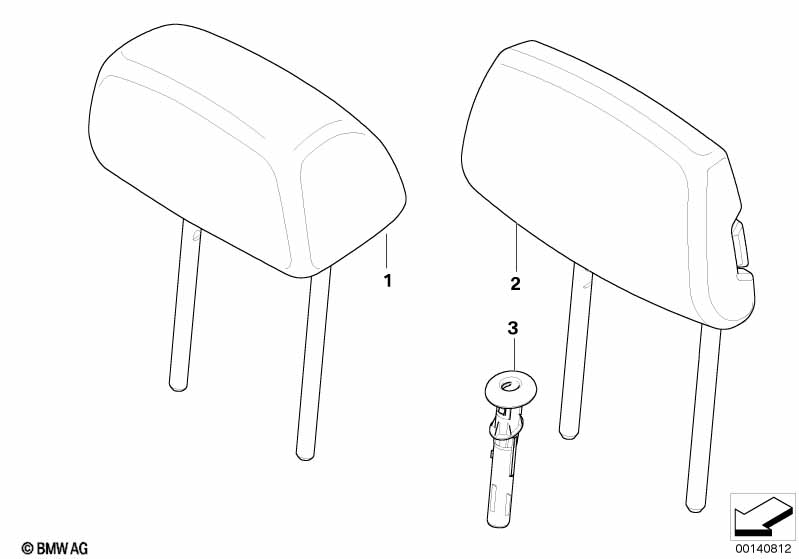

This Rear seat head restraint technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 2 | 52207152314 | $149.48 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 01 | Headrest leather | SATTELBRAUN | 2 | 09/2009 | 52207256588 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "citrus"/anthracite |
FFAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52207152324 | $204.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 01 | Headrest leather | BEIGE | 2 | 03/2009 | 52207246491 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 01 | Headrest leather | ROTBRAUN | 2 | 09/2009 | 52207256589 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 01 | Headrest imitation leather | BEIGE | 2 | 52207152315 | $149.48 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather citrus/blue |
FFB5=Yes |
|||||||||
| 01 | Head rest cloth | BLAU | 2 | 52207152325 | $204.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 2 | 03/2009 | 52207246490 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 09/2005 | 52208036379 | $158.47 | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather citrus/quarz-blue |
FFB6=Yes |
|||||||||
| 01 | Head rest cloth | QUARZGRAU | 2 | 52207152326 | $204.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 2 | 03/2009 | 52207246489 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Impuls/anthrazit" |
FMAT=Yes |
|||||||||
| 01 | Headrest cloth-leather | ANTHRAZIT | 2 | 09/2009 | 52207251920 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Impuls/braun' |
FMCN=Yes |
|||||||||
| 01 | Headrest cloth-leather | BRAUN | 2 | 09/2009 | 52207251925 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 01 | Headrest leather | OYSTER | 2 | 09/2009 | 52207256587 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" |
ALAD=Yes EBAD=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 2 | 52207152306 | $158.47 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" |
ALB4=Yes EBB4=Yes |
|||||||||
| 01 | Head rest cloth | BEIGE | 2 | 52207152307 | $158.47 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Fabric 'Layer/anthrazit' or Cloth "Vertex/anthrazit" |
ALAT=Yes BCAT=Yes EBAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52207118725 | $158.47 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 02 | Headrest imitation leather | SCHWARZ | 2 | 52207164264 | $158.47 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 02 | Headrest leather | SATTELBRAUN | 2 | 09/2008 | 52207256596 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "citrus"/anthracite |
FFAT=Yes |
|||||||||
| 02 | Head rest cloth | ANTHRAZIT | 2 | 52207164267 | $204.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 02 | Headrest leather | BEIGE | 2 | 03/2009 | 52207246479 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 02 | Headrest leather | ROTBRAUN | 2 | 09/2008 | 52207213537 | $234.25 | Shop at ECS Tuning | |||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 02 | Headrest imitation leather | BEIGE | 2 | 52207164265 | $149.48 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather citrus/blue |
FFB5=Yes |
|||||||||
| 02 | Head rest cloth | BLAU | 2 | 52207164268 | $204.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 02 | Headrest leather | GRAU | 2 | 03/2009 | 52207246478 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 02 | Head rest cloth | ANTHRAZIT | 2 | 52208036420 | Shop at ECS Tuning | |||||
| For vehicles with Cloth/leather citrus/quarz-blue |
FFB6=Yes |
|||||||||
| 02 | Head rest cloth | QUARZGRAU | 2 | 52207164269 | $204.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 02 | Headrest leather | SCHWARZ | 2 | 03/2009 | 52207246477 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Impuls/anthrazit" |
FMAT=Yes |
|||||||||
| 02 | Headrest cloth-leather | ANTHRAZIT | 2 | 09/2009 | 52207251930 | $201.07 | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather 'Impuls/braun' |
FMCN=Yes |
|||||||||
| 02 | Headrest cloth-leather | BRAUN | 2 | 52207213519 | $171.92 | ENDED | Shop at ECS Tuning | |||
| 02 | Headrest cloth-leather | BRAUN | 2 | 09/2009 | 52207251931 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 02 | Headrest leather | OYSTER | 2 | 09/2008 | 52207256595 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" |
ALAD=Yes EBAD=Yes |
|||||||||
| 02 | Head rest cloth | GRAU | 2 | 52207164261 | $149.48 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" |
ALB4=Yes EBB4=Yes |
|||||||||
| 02 | Head rest cloth | BEIGE | 2 | 52207164262 | $158.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Fabric 'Layer/anthrazit' or Cloth "Vertex/anthrazit" |
ALAT=Yes BCAT=Yes EBAT=Yes |
|||||||||
| 02 | Head rest cloth | ANTHRAZIT | 2 | 52207164260 | $158.47 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau With button |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 03 | Guide, headrest | GRAU | 2 | 52207152190 | $11.60 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau Without button |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 03 | Guide, headrest | GRAU | 2 | 52207152192 | $11.60 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige With button |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 03 | Guide, headrest | BEIGE | 2 | 52207152191 | $11.60 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige Without button |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 03 | Guide, headrest | BEIGE | 2 | 52207152193 | $11.60 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "Impuls/anthrazit" or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz With button |
ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FMAT=Yes KASW=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 03 | Guide, headrest, lockable | SCHWARZ | 2 | 52207142041 | $5.87 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "Impuls/anthrazit" or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz Without button |
ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FMAT=Yes KASW=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 03 | Guide, headrest | SCHWARZ | 2 | 52207142251 | $5.87 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
