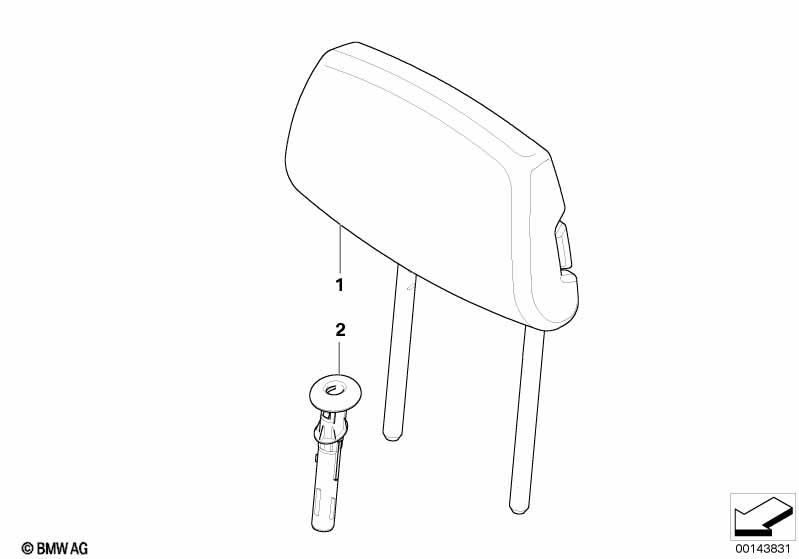

Seat, rear, head restraint, center for BMW 3 Series E90 318i (2008)
This Seat, rear, head restraint, center technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Headrest leather | SCHWARZ | 1 | 03/2009 | 52207216195 | $234.25 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Headrest leather | GRAU | 1 | 52207160681 | $234.25 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/terra |
LCB8=Yes |
|||||||||
| 01 | Headrest leather | TERRA | 1 | 52207160684 | $234.25 | ENDED | Shop at ECS Tuning | |||
| 01 | Headrest leather | TERRA | 1 | 52207256600 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/lemon |
LCB7=Yes |
|||||||||
| 01 | Headrest leather | LEMON | 1 | 52207256601 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Headrest imitation leather | SCHWARZ | 1 | 52207160663 | $149.48 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather citrus/blue |
FFB5=Yes |
|||||||||
| 01 | Head rest cloth | BLAU | 1 | 52207160671 | $204.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 1 | 09/2005 | 52208036422 | $158.47 | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather citrus/quarz-blue |
FFB6=Yes |
|||||||||
| 01 | Head rest cloth | QUARZGRAU | 1 | 52207160672 | $204.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 01 | Headrest leather | BEIGE | 1 | 52207160682 | $234.25 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "citrus"/anthracite |
FFAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 1 | 52207160670 | $204.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 01 | Headrest imitation leather | BEIGE | 1 | 52207160664 | $149.48 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" |
ALB4=Yes EBB4=Yes |
|||||||||
| 01 | Head rest cloth | BEIGE | 1 | 52207160658 | $158.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" |
ALAD=Yes EBAD=Yes |
|||||||||
| 01 | Head rest cloth | GRAU | 1 | 52207160657 | $149.48 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Fabric 'Layer/anthrazit' or Cloth "Vertex/anthrazit" |
ALAT=Yes BCAT=Yes EBAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 1 | 52207160656 | $158.47 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau Without button |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 02 | Guide, headrest | GRAU | 1 | 52207152196 | $11.70 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau With button |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 02 | Guide, headrest | GRAU | 1 | 52207152194 | $11.70 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige Without button |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Guide, headrest | BEIGE | 1 | 52207152197 | $11.70 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige With button |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Guide, headrest | BEIGE | 1 | 52207152195 | $11.70 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz Without button |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 02 | Guide, head restraint, center | SCHWARZ | 1 | 52207142273 | $7.03 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz With button |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 02 | Guide, head restraint, center, locking | SCHWARZ | 1 | 52207142270 | $7.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
