Seat rear, upholstery & cover base seat for BMW 3 Series E90 LCI 320d (2011)

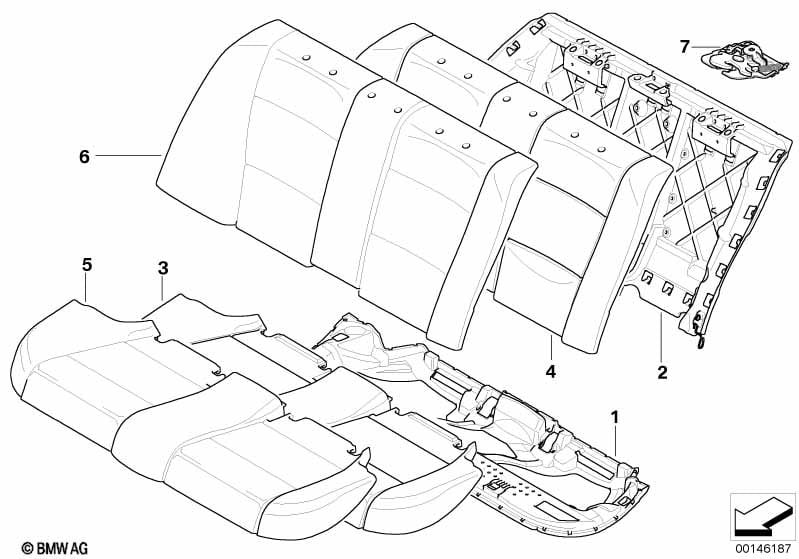

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Through-loading system |
S465A=No |
||||||||
| 01 | Seat carrier, rear | 1 | 52207118745 | $48.24 | Shop at ECS Tuning | |||||
| 02 | Supporting part, backrest | 1 | 52207118754 | $204.83 | Shop at ECS Tuning | |||||
| For vehicles with Centre armrest, rear |
S497A=Yes |
|||||||||
| 02 | Supporting part, backrest | 1 | 52207130825 | $37.54 | Shop at ECS Tuning | |||||
| 03 | Foam section, seat | 1 | 52207118746 | $207.89 | Shop at ECS Tuning | |||||
| 04 | Foam section, backrest | 1 | 52207118755 | $113.83 | Shop at ECS Tuning | |||||
| For vehicles with Centre armrest, rear |
S497A=Yes |
|||||||||
| 04 | Foam section, backrest | 1 | 52207130826 | $228.68 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 05 | Seat cover vinyl | SCHWARZ | 1 | 52207146807 | $448.07 | Shop at ECS Tuning | ||||
| For vehicles with Fabric 'Layer/oyster' |
BCCX=Yes |
|||||||||
| 05 | Seat cover cloth | OYSTER | 1 | 03/2010 | 52207257723 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 05 | Seat cover leather | SATTELBRAUN | 1 | 06/2009 | 52207257086 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Impuls/anthrazit" |
FMAT=Yes |
|||||||||
| 05 | Cloth/leather seat cover | ANTHRAZIT | 1 | 09/2009 | 52207251900 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/beige" |
EBB4=Yes |
|||||||||
| 05 | Seat cover cloth | BEIGE | 1 | 52207212241 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Impuls/braun' |
FMCN=Yes |
|||||||||
| 05 | Cloth/leather seat cover | BRAUN | 1 | 09/2009 | 52207251901 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 05 | Seat cover leather | GRAU | 1 | 03/2009 | 52207246509 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 05 | Seat cover leather | OYSTER | 1 | 06/2009 | 52207257085 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 05 | Seat cover leather | SCHWARZ | 1 | 03/2009 | 52207246508 | $986.57 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 05 | Seat cover leather | BEIGE | 1 | 03/2009 | 52207246510 | $986.57 | +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Vertex/grey" |
EBAD=Yes |
|||||||||
| 05 | Seat cover cloth | GRAU | 1 | 52207212240 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 05 | Seat cover vinyl | BEIGE | 1 | 52207146808 | $448.07 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 05 | Seat cover leather | SCHWARZ | 1 | 52207843904 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric 'Layer/anthrazit' |
BCAT=Yes |
|||||||||
| 05 | Seat cover cloth | ANTHRAZIT | 1 | 03/2010 | 52207257722 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/anthrazit" |
EBAT=Yes |
|||||||||
| 05 | Seat cover cloth | ANTHRAZIT | 1 | 52207212239 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 05 | Seat cover leather | ROTBRAUN | 1 | 52207257087 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 05 | Seat cover cloth | ANTHRAZIT | 1 | 09/2005 | 52208036389 | $274.54 | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 06 | Cover backrest, imitation leather | SCHWARZ | 1 | 52207146810 | $446.76 | Shop at ECS Tuning | ||||
| For vehicles with Fabric 'Layer/oyster' |
BCCX=Yes |
|||||||||
| 06 | Cover backrest cloth | OYSTER | 1 | 03/2010 | 52207257719 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/beige" |
EBB4=Yes |
|||||||||
| 06 | Cover backrest cloth | BEIGE | 1 | 52207212263 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 06 | Cover backrest, leather | GRAU | 1 | 03/2009 | 52207246515 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 06 | Cover backrest, leather | SCHWARZ | 1 | 03/2009 | 52207246514 | $992.40 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 06 | Cover backrest, leather | BEIGE | 1 | 03/2009 | 52207246516 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/grey" |
EBAD=Yes |
|||||||||
| 06 | Cover backrest cloth | GRAU | 1 | 52207212262 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 06 | Cover backrest, imitation leather | BEIGE | 1 | 52207146811 | $293.51 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 06 | Cover backrest, leather | SCHWARZ | 1 | 52207843757 | Shop at ECS Tuning | |||||
| For vehicles with Fabric 'Layer/anthrazit' |
BCAT=Yes |
|||||||||
| 06 | Cover backrest cloth | ANTHRAZIT | 1 | 03/2010 | 52207257718 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/anthrazit" |
EBAT=Yes |
|||||||||
| 06 | Cover backrest cloth | ANTHRAZIT | 1 | 52207212261 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package or Centre armrest, rear and Leather "Dakota/red-brown" |
S493A=Yes S497A=Yes LCCZ=Yes |
|||||||||
| 06 | Cover backrest, leather | ROTBRAUN | 1 | 52207212274 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package or Centre armrest, rear and Cloth "Vertex/grey" |
S493A=Yes S497A=Yes EBAD=Yes |
|||||||||
| 06 | Cover backrest cloth | GRAU | 1 | 52207212265 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package or Centre armrest, rear and Cloth/leather "Impuls/anthrazit" |
S493A=Yes S497A=Yes FMAT=Yes |
|||||||||
| 06 | Cloth/leather backrest cover | ANTHRAZIT | 1 | 09/2009 | 52207251904 | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package or Centre armrest, rear and Fabric 'Layer/oyster' |
S493A=Yes S497A=Yes BCCX=Yes |
|||||||||
| 06 | Cover backrest cloth | OYSTER | 1 | 03/2010 | 52207257721 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Storage compartment package or Centre armrest, rear and Cloth "Vertex/anthrazit" |
S493A=Yes S497A=Yes EBAT=Yes |
|||||||||
| 06 | Cover backrest cloth | ANTHRAZIT | 1 | 52207212264 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package or Centre armrest, rear and Fabric 'Layer/anthrazit' |
S493A=Yes S497A=Yes BCAT=Yes |
|||||||||
| 06 | Cover backrest cloth | ANTHRAZIT | 1 | 03/2010 | 52207257720 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Storage compartment package or Centre armrest, rear and Leather "Dakota" saddle brown |
S493A=Yes S497A=Yes LCD3=Yes |
|||||||||
| 06 | Cover backrest, leather | SATTELBRAUN | 1 | 52207212273 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package or Centre armrest, rear and Fabric/leather 'Impuls/braun' |
S493A=Yes S497A=Yes FMCN=Yes |
|||||||||
| 06 | Cloth/leather backrest cover | BRAUN | 1 | 09/2009 | 52207251905 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Storage compartment package or Centre armrest, rear and Sensatec/black |
S493A=Yes S497A=Yes KASW=Yes |
|||||||||
| 06 | Cover backrest, imitation leather | SCHWARZ | 1 | 52207146850 | $446.76 | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package or Centre armrest, rear and Sensatec/beige |
S493A=Yes S497A=Yes KAB4=Yes |
|||||||||
| 06 | Cover backrest, imitation leather | BEIGE | 1 | 52207146851 | $446.76 | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package or Centre armrest, rear and Cloth "Vertex/beige" |
S493A=Yes S497A=Yes EBB4=Yes |
|||||||||
| 06 | Cover backrest cloth | BEIGE | 1 | 52207212266 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package or Centre armrest, rear and Leather "Dakota/oyster" |
S493A=Yes S497A=Yes LCCX=Yes |
|||||||||
| 06 | Cover backrest, leather | OYSTER | 1 | 52207257091 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package or Centre armrest, rear and Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
S493A=Yes S497A=Yes ANAT=Yes ANNK=Yes |
|||||||||
| 06 | Cover backrest cloth | ANTHRAZIT | 1 | 09/2005 | 52208036391 | $361.58 | ENDED | Shop at ECS Tuning | ||
| 07 | Lock, Basis, left | 1 | 52207142261 | $14.93 | +core | Shop at ECS Tuning | ||||
| 07 | Lock, Basis, right | 1 | 52207142262 | $14.93 | +core | Shop at ECS Tuning | ||||
