Seat rear, upholstery & cover base seat for BMW 3 Series E90 LCI 320d (2011)

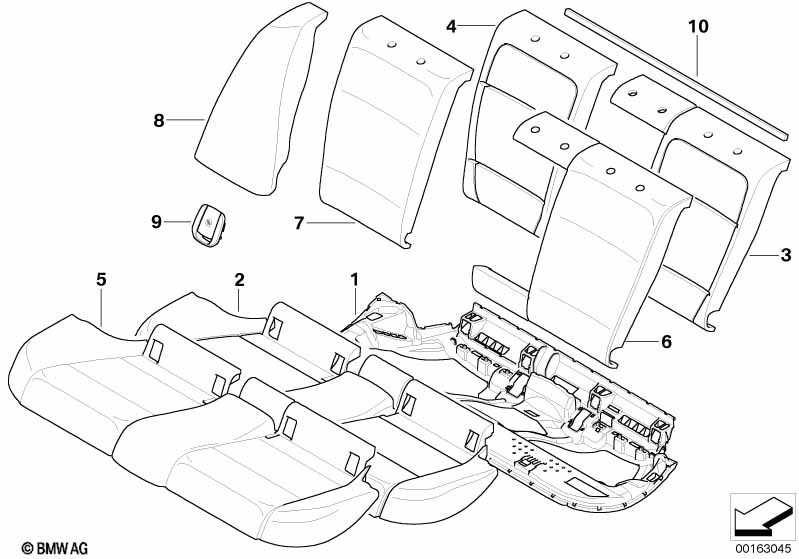

This Seat rear, upholstery & cover base seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat carrier, rear | 1 | 52207133818 | $48.24 | Shop at ECS Tuning | |||||
| 02 | Foam section, seat | 1 | 52207133822 | $207.89 | Shop at ECS Tuning | |||||
| 03 | Foam plastic part left backrest | 1 | 52207151645 | $125.76 | Shop at ECS Tuning | |||||
| 04 | Foam section, backrest, right | 1 | 52207151646 | $80.03 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 05 | Seat cover leather | ROTBRAUN | 1 | 52207257090 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 05 | Seat cover leather | SCHWARZ | 1 | 03/2010 | 52207843905 | Shop at ECS Tuning | ||||
| For vehicles with Fabric 'Layer/anthrazit' |
BCAT=Yes |
|||||||||
| 05 | Seat cover cloth | ANTHRAZIT | 1 | 03/2010 | 52207257724 | Shop at ECS Tuning | ||||
| For vehicles with Fabric 'Layer/oyster' |
BCCX=Yes |
|||||||||
| 05 | Seat cover cloth | OYSTER | 1 | 03/2010 | 52207257725 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 05 | Seat cover leather | SCHWARZ | 1 | 03/2009 | 52207246511 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Impuls/anthrazit" |
FMAT=Yes |
|||||||||
| 05 | Cloth/leather seat cover | ANTHRAZIT | 1 | 09/2009 | 52207251902 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Impuls/braun' |
FMCN=Yes |
|||||||||
| 05 | Cloth/leather seat cover | BRAUN | 1 | 09/2009 | 52207251903 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 05 | Seat cover leather | SATTELBRAUN | 1 | 52207257089 | +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/beige" |
EBB4=Yes |
|||||||||
| 05 | Seat cover cloth | BEIGE | 1 | 52207212252 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Vertex/anthrazit" |
EBAT=Yes |
|||||||||
| 05 | Seat cover cloth | ANTHRAZIT | 1 | 52207212250 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 05 | Seat cover vinyl | BEIGE | 1 | 52207146900 | $448.07 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 05 | Seat cover vinyl | SCHWARZ | 1 | 52207146899 | $448.07 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 05 | Seat cover leather | OYSTER | 1 | 06/2009 | 52207257088 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/grey" |
EBAD=Yes |
|||||||||
| 05 | Seat cover cloth | GRAU | 1 | 52207212251 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 05 | Seat cover leather | BEIGE | 1 | 03/2009 | 52207246513 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 05 | Seat cover leather | GRAU | 1 | 03/2009 | 52207246512 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 05 | Seat cover cloth | ANTHRAZIT | 1 | 09/2005 | 52208036395 | $274.54 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 06 | Cover backrest leather left | ROTBRAUN | 1 | 52207257096 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 06 | Cover backrest leather left | SCHWARZ | 1 | 52207843759 | Shop at ECS Tuning | |||||
| For vehicles with Fabric 'Layer/anthrazit' |
BCAT=Yes |
|||||||||
| 06 | Cover backrest cloth left | ANTHRAZIT | 1 | 03/2010 | 52207257716 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric 'Layer/oyster' |
BCCX=Yes |
|||||||||
| 06 | Cover backrest cloth left | OYSTER | 1 | 03/2010 | 52207257717 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 06 | Cover backrest leather left | SCHWARZ | 1 | 03/2009 | 52207246517 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Impuls/anthrazit" |
FMAT=Yes |
|||||||||
| 06 | Left cloth/leather backrest cover | ANTHRAZIT | 1 | 09/2009 | 52207251906 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Impuls/braun' |
FMCN=Yes |
|||||||||
| 06 | Left cloth/leather backrest cover | BRAUN | 1 | 09/2009 | 52207251907 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 06 | Cover backrest leather left | SATTELBRAUN | 1 | 09/2009 | 52207257095 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/beige" |
EBB4=Yes |
|||||||||
| 06 | Cover backrest cloth left | BEIGE | 1 | 52207212277 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/anthrazit" |
EBAT=Yes |
|||||||||
| 06 | Cover backrest cloth left | ANTHRAZIT | 1 | 52207212275 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 06 | Cover backrest vinyl left | BEIGE | 1 | 03/2006 | 52209119123 | $238.49 | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 06 | Cover backrest vinyl left | SCHWARZ | 1 | 03/2006 | 52209119122 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nevada/oyster" |
LUCX=Yes |
|||||||||
| 06 | Cover backrest leather left | OYSTER | 1 | 52207257094 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 06 | Cover backrest leather left | OYSTER | 1 | 52207212283 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/grey" |
EBAD=Yes |
|||||||||
| 06 | Cover backrest cloth left | GRAU | 1 | 52207212276 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 06 | Cover backrest leather left | BEIGE | 1 | 03/2009 | 52207246519 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 06 | Cover backrest leather left | GRAU | 1 | 03/2009 | 52207246518 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 06 | Cover backrest cloth left | ANTHRAZIT | 1 | 03/2006 | 52209119148 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 07 | Cover backrest leather right | ROTBRAUN | 1 | 52207257099 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 07 | Cover backrest leather right | SCHWARZ | 1 | 52207843760 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric 'Layer/anthrazit' |
BCAT=Yes |
|||||||||
| 07 | Cover backrest cloth right | ANTHRAZIT | 1 | 03/2010 | 52207257714 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric 'Layer/oyster' |
BCCX=Yes |
|||||||||
| 07 | Cover backrest cloth right | OYSTER | 1 | 03/2010 | 52207257715 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 07 | Cover backrest leather right | SCHWARZ | 1 | 03/2009 | 52207246520 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Impuls/anthrazit" |
FMAT=Yes |
|||||||||
| 07 | Right cloth/leather backrest cover | ANTHRAZIT | 1 | 09/2009 | 52207251908 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather 'Impuls/braun' |
FMCN=Yes |
|||||||||
| 07 | Right cloth/leather backrest cover | BRAUN | 1 | 09/2009 | 52207251909 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 07 | Cover backrest leather right | SATTELBRAUN | 1 | 09/2009 | 52207257098 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/beige" |
EBB4=Yes |
|||||||||
| 07 | Cover backrest cloth right | BEIGE | 1 | 52207212288 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/anthrazit" |
EBAT=Yes |
|||||||||
| 07 | Cover backrest cloth right | ANTHRAZIT | 1 | 52207212286 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 07 | Cover backrest vinyl right | BEIGE | 1 | 03/2006 | 52209119126 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 07 | Cover backrest vinyl right | SCHWARZ | 1 | 03/2006 | 52209119125 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 07 | Cover backrest leather right | OYSTER | 1 | 52207257097 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Vertex/grey" |
EBAD=Yes |
|||||||||
| 07 | Cover backrest cloth right | GRAU | 1 | 52207212287 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 07 | Cover backrest leather right | BEIGE | 1 | 03/2009 | 52207246522 | $326.80 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 07 | Cover backrest leather right | GRAU | 1 | 03/2009 | 52207246521 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 07 | Cover backrest cloth right | ANTHRAZIT | 1 | 03/2006 | 52209119150 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 08 | Lateral trim panel left | ROTBRAUN | 1 | 52207213613 | ENDED | Shop at ECS Tuning | ||||
| 08 | Lateral trim panel right | ROTBRAUN | 1 | 52207213614 | Shop at ECS Tuning | |||||
| For vehicles with Fabric 'Layer/oyster' |
BCCX=Yes |
|||||||||
| 08 | Lateral trim panel left | OYSTER | 1 | 03/2010 | 52207274473 | ENDED | Shop at ECS Tuning | |||
| 08 | Lateral trim panel right | OYSTER | 1 | 03/2010 | 52207274474 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Impuls/anthrazit" |
FMAT=Yes |
|||||||||
| 08 | Lateral trim panel left | ANTHRAZIT | 1 | 09/2009 | 52207251941 | ENDED | Shop at ECS Tuning | |||
| 08 | Lateral trim panel right | ANTHRAZIT | 1 | 09/2009 | 52207251942 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Impuls/braun' |
FMCN=Yes |
|||||||||
| 08 | Lateral trim panel left | BRAUN | 1 | 09/2009 | 52207251943 | ENDED | Shop at ECS Tuning | |||
| 08 | Lateral trim panel right | BRAUN | 1 | 09/2009 | 52207251944 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 08 | Lateral trim panel left | SATTELBRAUN | 1 | 52207213611 | Shop at ECS Tuning | |||||
| 08 | Lateral trim panel right | SATTELBRAUN | 1 | 52207213612 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/beige" |
EBB4=Yes |
|||||||||
| 08 | Lateral trim panel left | BEIGE | 1 | 52207213597 | Shop at ECS Tuning | |||||
| 08 | Lateral trim panel right | BEIGE | 1 | 52207213598 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 08 | Lateral trim panel left | BEIGE | 1 | 52207162487 | $168.52 | Shop at ECS Tuning | ||||
| 08 | Lateral trim panel right | BEIGE | 1 | 52207162488 | $168.52 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 08 | Lateral trim panel left | SCHWARZ | 1 | 52207162485 | $105.13 | Shop at ECS Tuning | ||||
| 08 | Lateral trim panel right | SCHWARZ | 1 | 52207162486 | $105.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 08 | Lateral trim panel left | OYSTER | 1 | 52207213609 | Shop at ECS Tuning | |||||
| 08 | Lateral trim panel right | OYSTER | 1 | 52207213610 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Vertex/grey" |
EBAD=Yes |
|||||||||
| 08 | Lateral trim panel left | GRAU | 1 | 52207213595 | Shop at ECS Tuning | |||||
| 08 | Lateral trim panel right | GRAU | 1 | 52207213596 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 08 | Lateral trim panel left | BEIGE | 1 | 03/2009 | 52207246533 | $280.68 | Shop at ECS Tuning | |||
| 08 | Lateral trim panel right | BEIGE | 1 | 03/2009 | 52207246534 | $280.68 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 08 | Lateral trim panel left | GRAU | 1 | 03/2009 | 52207246531 | ENDED | Shop at ECS Tuning | |||
| 08 | Lateral trim panel right | GRAU | 1 | 03/2009 | 52207246532 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCNL=Yes LCSW=Yes |
|||||||||
| 08 | Lateral trim panel left | SCHWARZ | 1 | 03/2009 | 52207246529 | Shop at ECS Tuning | ||||
| 08 | Lateral trim panel right | SCHWARZ | 1 | 03/2009 | 52207246530 | $280.68 | Shop at ECS Tuning | |||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 08 | Side finisher cloth, left | ANTHRAZIT | 1 | 09/2005 | 52207837243 | $168.52 | Shop at ECS Tuning | |||
| 08 | Side finisher cloth, right | ANTHRAZIT | 1 | 09/2005 | 52207837244 | $168.52 | Shop at ECS Tuning | |||
| For vehicles with Fabric 'Layer/anthrazit' or Cloth "Vertex/anthrazit" |
BCAT=Yes EBAT=Yes |
|||||||||
| 08 | Lateral trim panel left | ANTHRAZIT | 1 | 52207213593 | Shop at ECS Tuning | |||||
| 08 | Lateral trim panel right | ANTHRAZIT | 1 | 52207213594 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 09 | Cover isofix | GRAU | 4 | 52207152209 | $14.24 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 09 | Cover isofix | BEIGE | 4 | 52207152210 | $14.24 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 09 | Cover isofix | SCHWARZ | 4 | 52207118674 | $13.83 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d Seat rear, upholstery & cover base seat?
- This technical diagram illustrates the Seat rear, upholstery & cover base seat within the Seats group for the 3 Series E90 LCI 320d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Seat carrier, rear (Part #52207133818).
- Which models use the hardware listed in this Seat rear, upholstery & cover base seat?
- The hardware and components featured in the Seat rear, upholstery & cover base seat are specific to the 3 Series E90 LCI 320d produced during 2011. These technical specifications ensure that parts like the Seat carrier, rear (52207133818) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat rear, upholstery & cover base seat assembly?
- Each item in the Seat rear, upholstery & cover base seat corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the Seat carrier, rear by locating its position on the schematic, which then links to the official BMW part number 52207133818 for the Seats section.
