Seat, rear, seat frame, load-through for BMW 3 Series E90 320d (2007)

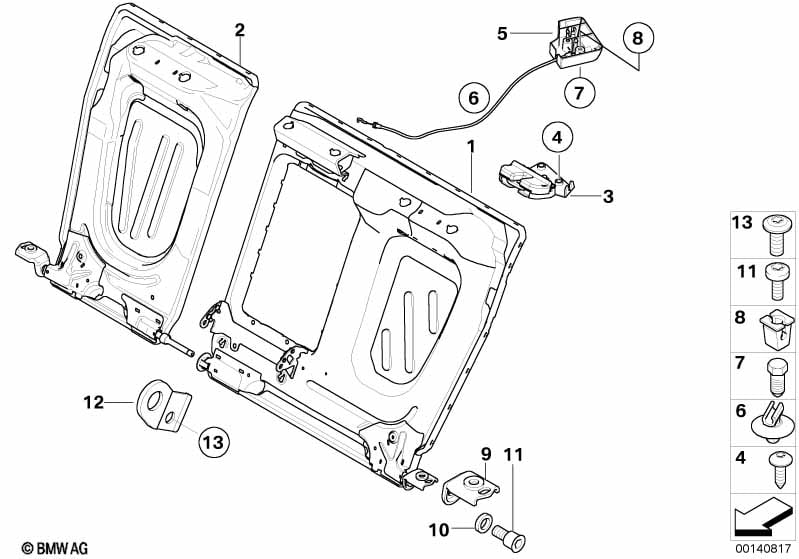

This Seat, rear, seat frame, load-through technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame, backrest left | 1 | 52207141907 | $341.01 | ENDED | Shop at ECS Tuning | ||||
| 02 | Frame, backrest right | 1 | 52207146973 | $227.34 | Shop at ECS Tuning | |||||
| 03 | Lock left | 1 | 52207112863 | $35.49 | +core | Shop at ECS Tuning | ||||
| 03 | Lock right | 1 | 52207112864 | $35.49 | +core | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X20-ZNS3 | 4 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Actuation unit left | 1 | 52207151369 | $32.96 | Shop at ECS Tuning | |||||
| 05 | Actuation unit right | 1 | 52207151370 | $32.96 | Shop at ECS Tuning | |||||
| 06 | Cable holder | 4 | 72118177700 | $0.52 | Shop at ECS Tuning | |||||
| 07 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | ST 4.8 | 4 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Support | 2 | 52207118701 | $7.87 | Shop at ECS Tuning | |||||
| 10 | Bush | 2 | 52207134124 | $7.75 | Shop at ECS Tuning | |||||
| 11 | Fillister-head screw | M10X22 | 2 | 07147116970 | $1.80 | Shop at ECS Tuning | ||||
| 12 | Supporting bracket, center | 1 | 52207161259 | $6.30 | Shop at ECS Tuning | |||||
| 13 | Fillister head screw with collar | M10X15 | 2 | 07147161279 | $0.80 | Shop at ECS Tuning |
