Seat, rear, seat frame, load-through for BMW 3 Series E91 LCI 335xi (2012)

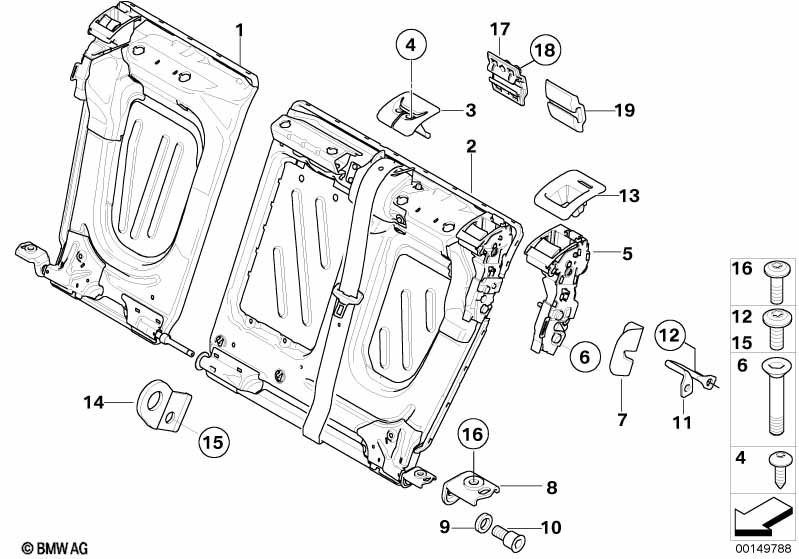

This Seat, rear, seat frame, load-through technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 335xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame, backrest right | ANTHRAZIT | 1 | 07/2007 | 52207053962 | $227.34 | Shop at ECS Tuning | |||
| 01 | Frame, backrest right | GRAU | 1 | 07/2007 | 52207053963 | $227.34 | Shop at ECS Tuning | |||
| 01 | Frame, backrest right | BEIGE | 1 | 07/2007 | 52207053964 | $227.34 | Shop at ECS Tuning | |||
| 02 | Frame, backrest left | ANTHRAZIT | 1 | 03/2009 | 52207247747 | Shop at ECS Tuning | ||||
| 02 | Frame, backrest left | GRAU | 1 | 03/2009 | 52207247749 | Shop at ECS Tuning | ||||
| 02 | Frame, backrest left | BEIGE | 1 | 03/2009 | 52207247750 | Shop at ECS Tuning | ||||
| 02 | Frame, backrest left | GRAU/SCHWARZ | 1 | 03/2009 | 52207285985 | Shop at ECS Tuning | ||||
| For vehicles with Ski bag |
S464A=Yes |
|||||||||
| 02 | Frame, backrest left | ANTHRAZIT | 1 | 03/2009 | 52207247751 | Shop at ECS Tuning | ||||
| 02 | Frame, backrest left | GRAU | 1 | 03/2009 | 52207247752 | Shop at ECS Tuning | ||||
| 02 | Frame, backrest left | BEIGE | 1 | 03/2009 | 52207247753 | Shop at ECS Tuning | ||||
| For vehicles with National version japan or Taiwan version or National version China |
L807A=Yes L846A=Yes L8AAA=Yes |
|||||||||
| 02 | Frame, backrest left | ANTHRAZIT | 1 | 09/2009 | 52207247747 | Shop at ECS Tuning | ||||
| 02 | Frame, backrest left | GRAU | 1 | 09/2009 | 52207247749 | Shop at ECS Tuning | ||||
| 02 | Frame, backrest left | BEIGE | 1 | 09/2009 | 52207247750 | Shop at ECS Tuning | ||||
| 03 | Cover, belt outlet | SCHWARZ | 1 | 52207119422 | $4.97 | Shop at ECS Tuning | ||||
| 03 | Cover, belt outlet | GRAU | 1 | 52207163497 | $4.97 | Shop at ECS Tuning | ||||
| 03 | Cover, belt outlet | BEIGE | 1 | 52207163498 | $5.87 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,2X17 | 2 | 07146977362 | $1.09 | Shop at ECS Tuning | ||||
| 05 | Catch rear left | 1 | 52207118819 | $139.16 | Shop at ECS Tuning | |||||
| 05 | Catch rear right | 1 | 52207118820 | $139.16 | Shop at ECS Tuning | |||||
| 06 | Torx bolt | M8X40 | 2 | 07147136002 | $1.42 | Shop at ECS Tuning | ||||
| 07 | Lock panel | SCHWARZ | 2 | 52207119423 | $4.97 | Shop at ECS Tuning | ||||
| 07 | Lock panel | BEIGE | 2 | 52207163492 | $8.03 | Shop at ECS Tuning | ||||
| 08 | Support | 2 | 52207118701 | $7.87 | Shop at ECS Tuning | |||||
| 09 | Bush | 2 | 52207134124 | $7.75 | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | M10X22 | 2 | 07147116970 | $1.80 | Shop at ECS Tuning | ||||
| 11 | Bar left | SCHWARZ | 1 | 52207141991 | $8.80 | Shop at ECS Tuning | ||||
| 11 | Bar right | SCHWARZ | 1 | 52207141992 | $8.80 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw with collar | M10X15 | 2 | 07147161279 | $0.80 | Shop at ECS Tuning | ||||
| 13 | Cover, left control | SCHWARZ | 1 | 52207119425 | $4.97 | Shop at ECS Tuning | ||||
| 13 | Cover, right control | SCHWARZ | 1 | 52207119426 | $4.97 | Shop at ECS Tuning | ||||
| 13 | Cover, left control | GRAU | 1 | 52207163493 | $4.97 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover, right control | GRAU | 1 | 52207163494 | $4.97 | Shop at ECS Tuning | ||||
| 13 | Cover, left control | BEIGE | 1 | 52207163495 | $4.97 | Shop at ECS Tuning | ||||
| 13 | Cover, right control | BEIGE | 1 | 52207163496 | $5.87 | Shop at ECS Tuning | ||||
| 14 | Supporting bracket, center | 1 | 52207161259 | $6.30 | Shop at ECS Tuning | |||||
| 15 | Fillister head screw with collar | M10X15 | 2 | 07147161279 | $0.80 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw with collar | M10X22 | 2 | 07147163333 | $1.16 | Shop at ECS Tuning | ||||
| 17 | Support f roller blind, backrest | 2 | 51479138952 | Shop at ECS Tuning | ||||||
| 18 | ISA screw | M6X16-8.8-ZNS3 | 4 | 07129904588 | $0.96 | Shop at ECS Tuning | ||||
| 19 | Cover f roller cover support | GRAU | 2 | 51476949762 | $1.69 | Shop at ECS Tuning | ||||
| 19 | Cover f roller cover support | BEIGE | 2 | 51476949763 | $1.69 | Shop at ECS Tuning | ||||
| 19 | Cover f roller cover support | SCHWARZ | 2 | 51477145844 | $1.69 | Shop at ECS Tuning | ||||
