Seat, front, uphlstry, cover, Sport seat for BMW 3 Series E90 330i (2006)

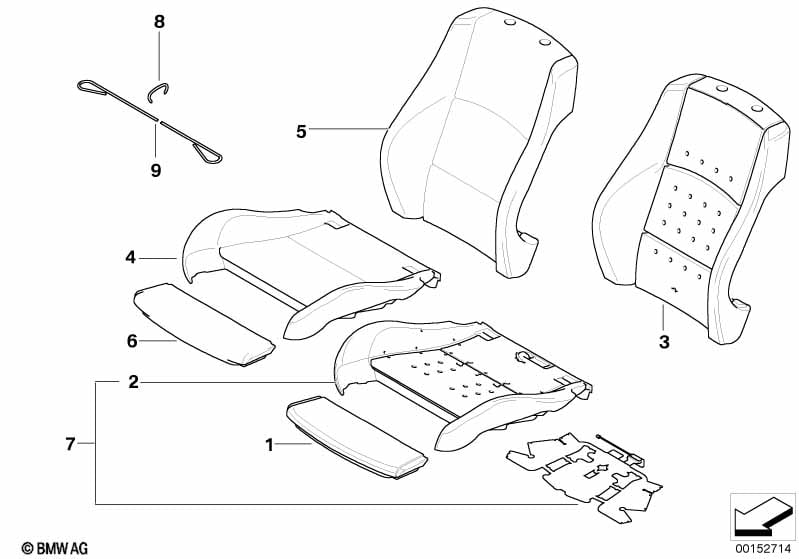

This Seat, front, uphlstry, cover, Sport seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Thigh support upholstery | 1 | 52107140451 | $31.37 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Sports seat upholstery parts | 1 | 52107139700 | $126.55 | Shop at ECS Tuning | |||||
| 03 | Left backrest upholstery | 1 | 52107140447 | $139.20 | Shop at ECS Tuning | |||||
| 03 | Right backrest upholstery | 1 | 52107140448 | $139.20 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/beige ONLY APPLIES TO DRIVER'S SIDE |
LCB4=Yes |
|||||||||
| 04 | Seat cover leather | BEIGE | 1 | 05/2007 | 52106985944 | $581.55 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau ONLY APPLIES TO DRIVER'S SIDE |
LCAD=Yes |
|||||||||
| 04 | Seat cover leather | GRAU | 1 | 05/2007 | 52106985943 | $581.55 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/terra ONLY APPLIES TO DRIVER'S SIDE |
LCB8=Yes |
|||||||||
| 04 | Seat cover leather | TERRA | 1 | 05/2007 | 52106985946 | $581.55 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sensatec/beige ONLY APPLIES TO DRIVER'S SIDE |
KAB4=Yes |
|||||||||
| 04 | Seat cover vinyl | BEIGE | 1 | 52106956416 | $269.23 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black ONLY APPLIES TO DRIVER'S SIDE |
KASW=Yes |
|||||||||
| 04 | Seat cover vinyl | SCHWARZ | 1 | 52106956415 | $269.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/lemon ONLY APPLIES TO DRIVER'S SIDE |
LCB7=Yes |
|||||||||
| 04 | Seat cover leather | LEMON | 1 | 05/2007 | 52106985945 | $581.55 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz ONLY APPLIES TO DRIVER'S SIDE |
LCSW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 05/2007 | 52106985942 | $581.55 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige additionally required parts: Guide, headrest |
LCB4=Yes |
|||||||||
| 05 | Cover backrest leather left | BEIGE | 1 | 05/2007 | 52106956399 | $695.57 | ENDED | Shop at ECS Tuning | ||
| 05 | Cover backrest leather right | BEIGE | 1 | 05/2007 | 52106956400 | $695.57 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau additionally required parts: Guide, headrest |
LCAD=Yes |
|||||||||
| 05 | Cover backrest leather left | GRAU | 1 | 05/2007 | 52106956397 | $695.57 | ENDED | Shop at ECS Tuning | ||
| 05 | Cover backrest leather right | GRAU | 1 | 05/2007 | 52106956398 | $695.57 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/terra additionally required parts: Guide, headrest |
LCB8=Yes |
|||||||||
| 05 | Cover backrest leather left | TERRA | 1 | 05/2007 | 52106956403 | $695.57 | ENDED | Shop at ECS Tuning | ||
| 05 | Cover backrest leather right | TERRA | 1 | 05/2007 | 52106956404 | $695.57 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sensatec/beige additionally required parts: Guide, headrest |
KAB4=Yes |
|||||||||
| 05 | Cover backrest vinyl left | BEIGE | 1 | 52106956391 | $326.59 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover backrest vinyl right | BEIGE | 1 | 52106956392 | $326.59 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black additionally required parts: Guide, headrest |
KASW=Yes |
|||||||||
| 05 | Cover backrest vinyl left | SCHWARZ | 1 | 52106956389 | $326.59 | Shop at ECS Tuning | ||||
| 05 | Cover backrest vinyl right | SCHWARZ | 1 | 52106956390 | $326.59 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/lemon additionally required parts: Guide, headrest |
LCB7=Yes |
|||||||||
| 05 | Cover backrest leather left | LEMON | 1 | 05/2007 | 52106956401 | $695.57 | Shop at ECS Tuning | |||
| 05 | Cover backrest leather right | LEMON | 1 | 05/2007 | 52106956402 | $616.59 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/schwarz additionally required parts: Guide, headrest |
LCSW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 05/2007 | 52106956395 | $695.57 | ENDED | Shop at ECS Tuning | ||
| 05 | Cover backrest leather right | SCHWARZ | 1 | 05/2007 | 52106956396 | $695.57 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 06 | Cover thigh support | BEIGE | 2 | 05/2007 | 52107147836 | $95.41 | +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 06 | Cover thigh support | GRAU | 2 | 05/2007 | 52107147835 | $95.41 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota"/terra |
LCB8=Yes |
|||||||||
| 06 | Cover thigh support | TERRA | 2 | 05/2007 | 52107147838 | $95.41 | Shop at ECS Tuning | |||
| For vehicles with Sensatec/beige |
KAB4=Yes |
|||||||||
| 06 | Cover thigh support | BEIGE | 2 | 52107148022 | $42.41 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 06 | Cover thigh support | SCHWARZ | 2 | 52107148021 | $42.41 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/lemon |
LCB7=Yes |
|||||||||
| 06 | Cover thigh support | LEMON | 2 | 05/2007 | 52107147837 | $94.86 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 06 | Cover thigh support | SCHWARZ | 2 | 05/2007 | 52107147834 | $95.41 | Shop at ECS Tuning | |||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 07 | Sports seat upholstery parts, right | OC3 | 1 | 52107244128 | $521.24 | Shop at ECS Tuning | ||||
| 08 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
