Seat, front, uphlstry, cover, Sport seat for BMW 3 Series E92 LCI 328i (2013)

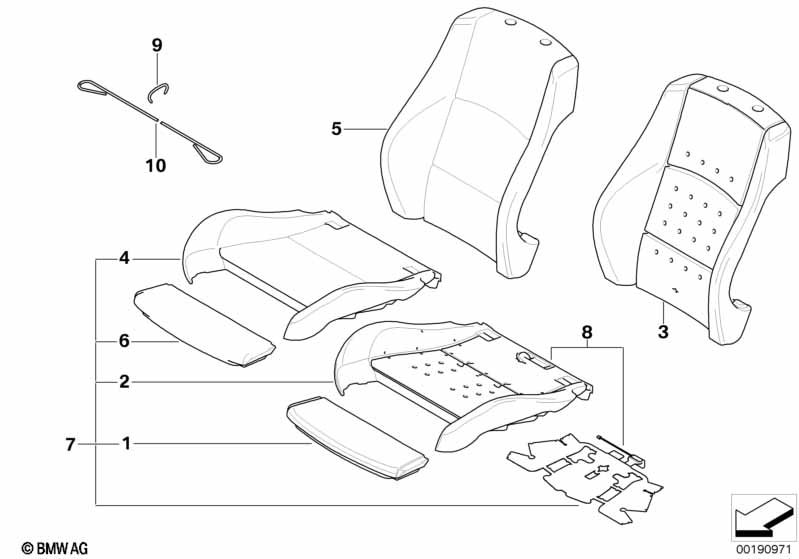

This Seat, front, uphlstry, cover, Sport seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Thigh support upholstery | 2 | 52107140451 | $31.37 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Seat upholstery | 1 | 52107139701 | $120.20 | Shop at ECS Tuning | |||||
| 03 | Left backrest upholstery | 1 | 52107140449 | $139.20 | Shop at ECS Tuning | |||||
| 03 | Right backrest upholstery | 1 | 52107140450 | $139.20 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota" saddle brown ONLY APPLIES TO DRIVER'S SIDE |
LCD3=Yes |
|||||||||
| 04 | Seat cover leather | SATTELBRAUN | 1 | 09/2010 | 52107309398 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau ONLY APPLIES TO DRIVER'S SIDE |
LCAD=Yes |
|||||||||
| 04 | Seat cover leather | GRAU | 1 | 09/2010 | 52107309395 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz ONLY APPLIES TO DRIVER'S SIDE |
LCSW=Yes |
|||||||||
| 04 | Seat cover leather | SCHWARZ | 1 | 09/2010 | 52107309394 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black ONLY APPLIES TO DRIVER'S SIDE |
KASW=Yes |
|||||||||
| 04 | Seat cover vinyl | SCHWARZ | 1 | 52106979241 | $269.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" ONLY APPLIES TO DRIVER'S SIDE |
LCCX=Yes |
|||||||||
| 04 | Seat cover leather | OYSTER | 1 | 09/2010 | 52107309399 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige ONLY APPLIES TO DRIVER'S SIDE |
KAGE=Yes |
|||||||||
| 04 | Seat cover vinyl | CREAMBEIGE | 1 | 52106979242 | $269.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/korall-red ONLY APPLIES TO DRIVER'S SIDE |
LCD1=Yes |
|||||||||
| 04 | Seat cover leather | KORALLROT | 1 | 52107253083 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Seat cover leather | KORALLROT | 1 | 09/2010 | 52107309397 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/creambeige ONLY APPLIES TO DRIVER'S SIDE |
LCGE=Yes |
|||||||||
| 04 | Seat cover leather | CREAMBEIGE | 1 | 09/2010 | 52107309396 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 05 | Cover backrest leather left | SATTELBRAUN | 1 | 52107253103 | Shop at ECS Tuning | |||||
| 05 | Cover backrest leather right | SATTELBRAUN | 1 | 52107253104 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 05 | Cover backrest leather left | GRAU | 1 | 06/2009 | 52107253095 | +core | Shop at ECS Tuning | |||
| 05 | Cover backrest leather right | GRAU | 1 | 06/2009 | 52107253096 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 05 | Cover backrest leather left | SCHWARZ | 1 | 06/2009 | 52107253093 | $716.33 | Shop at ECS Tuning | |||
| 05 | Cover backrest leather right | SCHWARZ | 1 | 06/2009 | 52107253094 | $716.33 | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 05 | Cover backrest vinyl left | SCHWARZ | 1 | 52106979165 | $326.59 | Shop at ECS Tuning | ||||
| 05 | Cover backrest vinyl right | SCHWARZ | 1 | 52106979166 | $326.59 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 05 | Cover backrest leather left | OYSTER | 1 | 03/2010 | 52107259145 | +core | Shop at ECS Tuning | |||
| 05 | Cover backrest leather right | OYSTER | 1 | 03/2010 | 52107259146 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 05 | Cover backrest vinyl left | CREAMBEIGE | 1 | 52106979167 | $326.59 | Shop at ECS Tuning | ||||
| 05 | Cover backrest vinyl right | CREAMBEIGE | 1 | 52106979168 | $326.59 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 05 | Cover backrest leather left | JADEGRAU | 1 | 06/2009 | 52107253101 | +core | Shop at ECS Tuning | |||
| 05 | Cover backrest leather right | JADEGRAU | 1 | 06/2009 | 52107253102 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 05 | Cover backrest leather left | KORALLROT | 1 | 52107253099 | +core | Shop at ECS Tuning | ||||
| 05 | Cover backrest leather right | KORALLROT | 1 | 52107253100 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 05 | Cover backrest leather left | CREAMBEIGE | 1 | 06/2009 | 52107253097 | Shop at ECS Tuning | ||||
| 05 | Cover backrest leather right | CREAMBEIGE | 1 | 06/2009 | 52107253098 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 06 | Cover thigh support | SATTELBRAUN | 2 | 03/2010 | 52107253205 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 06 | Cover thigh support | GRAU | 1 | 06/2009 | 52107253201 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 06 | Cover thigh support | SCHWARZ | 1 | 06/2009 | 52107253188 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 06 | Cover thigh support | SCHWARZ | 2 | 52106979238 | $42.41 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 06 | Cover thigh support | CREAMBEIGE | 2 | 52106979239 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 06 | Cover thigh support | JADEGRAU | 2 | 52106979259 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 06 | Cover thigh support | KORALLROT | 2 | 52107253203 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 06 | Cover thigh support | CREAMBEIGE | 1 | 06/2009 | 52107253202 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota" saddle brown ONLY APPLIES TO CO-DRIVERS SIDE |
LCD3=Yes |
|||||||||
| 07 | Seat upholstery, leather | SATTELBRAUN | 1 | 52109149387 | $1351.40 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau ONLY APPLIES TO CO-DRIVERS SIDE |
LCAD=Yes |
|||||||||
| 07 | Seat upholstery, leather | GRAU | 1 | 06/2009 | 52107253261 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz ONLY APPLIES TO CO-DRIVERS SIDE |
LCSW=Yes |
|||||||||
| 07 | Seat upholstery, leather | SCHWARZ | 1 | 06/2009 | 52107253260 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black ONLY APPLIES TO CO-DRIVERS SIDE |
KASW=Yes |
|||||||||
| 07 | Seat upholstery, imitation leather | SCHWARZ | 1 | 52109149362 | $759.23 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige ONLY APPLIES TO CO-DRIVERS SIDE |
KAGE=Yes |
|||||||||
| 07 | Seat upholstery, imitation leather | CREAMBEIGE | 1 | 52109149363 | $759.23 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray ONLY APPLIES TO CO-DRIVERS SIDE |
LCD2=Yes |
|||||||||
| 07 | Seat upholstery, leather | JADEGRAU | 1 | 52109149386 | $1351.40 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/korall-red ONLY APPLIES TO CO-DRIVERS SIDE |
LCD1=Yes |
|||||||||
| 07 | Seat upholstery, leather | KORALLROT | 1 | 52107253263 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige ONLY APPLIES TO CO-DRIVERS SIDE |
LCGE=Yes |
|||||||||
| 07 | Seat upholstery, leather | CREAMBEIGE | 1 | 06/2009 | 52107253262 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 08 | Sports seat upholstery parts, right | OC3 | 1 | 52107244122 | $491.20 | Shop at ECS Tuning | ||||
| 09 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
