Front seat rail mechanical/single parts for BMW 3 Series E92 328i (2010)

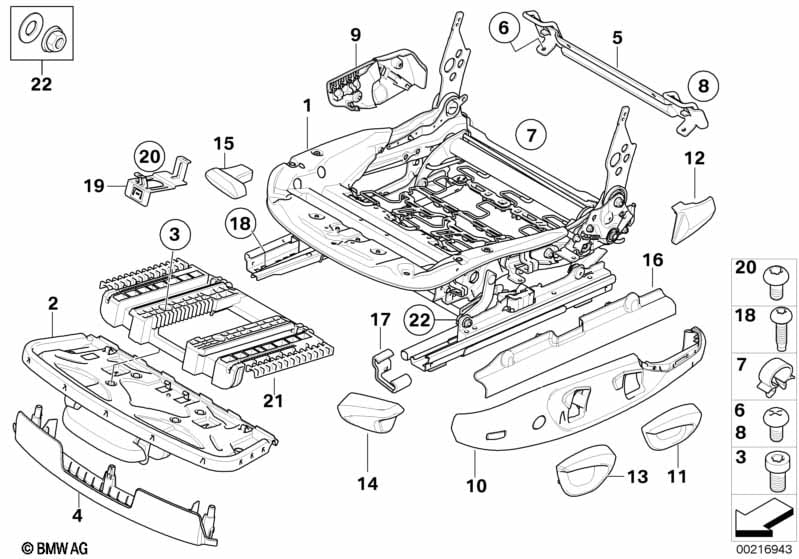

This Front seat rail mechanical/single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | seat mechanism left | 1 | 52107139031 | $454.95 | Shop at ECS Tuning | |||||
| 01 | seat mechanism right | 1 | 52107139032 | $454.95 | Shop at ECS Tuning | |||||
| 02 | Carrier thigh support | 2 | 52107161311 | $55.77 | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | BL 7,2X22 | 4 | 52107160653 | $0.42 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 04 | Seat trim, left | GRAU | 1 | 52106958665 | $10.43 | Shop at ECS Tuning | ||||
| 04 | Seat trim, right | GRAU | 1 | 52106958666 | $6.62 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 04 | Seat trim, left | CREAMBEIGE | 1 | 52106985593 | $6.62 | Shop at ECS Tuning | ||||
| 04 | Seat trim, right | CREAMBEIGE | 1 | 52106985594 | $6.62 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAT=Yes ANAT=Yes FHAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 04 | Seat trim, left | SCHWARZ | 1 | 52106958659 | $6.62 | Shop at ECS Tuning | ||||
| 04 | Seat trim, right | SCHWARZ | 1 | 52106958660 | $6.62 | Shop at ECS Tuning | ||||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 05 | Isofix bracket | 1 | 52107129838 | $24.73 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M6X12 | 2 | 07147144879 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Cable holder | D=12,8MM | X | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M5X8 | 2 | 07147144880 | $0.96 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 09 | Trim, seat inner left | GRAU | 1 | 52106979327 | $10.43 | Shop at ECS Tuning | ||||
| 09 | Trim, seat inner right | GRAU | 1 | 52106979328 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 09 | Trim, seat inner left | CREAMBEIGE | 1 | 52106979329 | $10.43 | Shop at ECS Tuning | ||||
| 09 | Trim, seat inner right | CREAMBEIGE | 1 | 52106979330 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAT=Yes ANAT=Yes FHAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 09 | Trim, seat inner left | SCHWARZ | 1 | 52106979325 | $10.43 | Shop at ECS Tuning | ||||
| 09 | Trim, seat inner right | SCHWARZ | 1 | 52106979326 | $10.43 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 10 | Trim, seat outer left | GRAU | 1 | 52109120351 | Shop at ECS Tuning | |||||
| 10 | Trim, seat outer right | GRAU | 1 | 52109120352 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 10 | Trim, seat outer left | CREAMBEIGE | 1 | 52109120353 | Shop at ECS Tuning | |||||
| 10 | Trim, seat outer right | CREAMBEIGE | 1 | 52109120354 | $22.65 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAT=Yes ANAT=Yes FHAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 10 | Trim, seat outer left | SCHWARZ | 1 | 52109120349 | $22.65 | Shop at ECS Tuning | ||||
| 10 | Trim, seat outer right | SCHWARZ | 1 | 52109120350 | $22.65 | Shop at ECS Tuning | ||||
| 11 | Lever left | 1 | 07/2012 | 52109120355 | $7.46 | Shop at ECS Tuning | ||||
| 11 | Lever right | 1 | 07/2012 | 52109120356 | $7.46 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 12 | Cover, belt catch left | GRAU | 1 | 52106978887 | Shop at ECS Tuning | |||||
| 12 | Cover, belt catch right | GRAU | 1 | 52106978888 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 12 | Cover, belt catch left | CREAMBEIGE | 1 | 52106978889 | Shop at ECS Tuning | |||||
| 12 | Cover, belt catch right | CREAMBEIGE | 1 | 52106978890 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAT=Yes ANAT=Yes FHAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 12 | Cover, belt catch left | SCHWARZ | 1 | 52106978885 | $3.88 | Shop at ECS Tuning | ||||
| 12 | Cover, belt catch right | SCHWARZ | 1 | 52106978886 | $3.88 | Shop at ECS Tuning | ||||
| 13 | Lever left | 1 | 07/2012 | 52107118439 | $7.54 | Shop at ECS Tuning | ||||
| 13 | Lever right | 1 | 07/2012 | 52107118440 | $7.54 | Shop at ECS Tuning | ||||
| 14 | Lever left | 1 | 52107139035 | $6.29 | Shop at ECS Tuning | |||||
| 14 | Lever right | 1 | 52107139036 | $6.29 | Shop at ECS Tuning | |||||
| 15 | Lever left | 1 | 52107118443 | $6.29 | Shop at ECS Tuning | |||||
| 15 | Lever right | 1 | 52107118444 | $6.29 | Shop at ECS Tuning | |||||
| 16 | Covering seat rail left | 1 | 52107118489 | $3.25 | Shop at ECS Tuning | |||||
| 16 | Covering seat rail right | 1 | 52107118490 | $3.25 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO SEAT RAIL front right/rear left |
||||||||||
| 17 | Covering cap, seat rail | SCHWARZ | 1 | 52109110103 | $0.66 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SEAT RAIL front left/rear right |
||||||||||
| 17 | Covering cap, seat rail | SCHWARZ | 1 | 52109110104 | $0.66 | Shop at ECS Tuning | ||||
| 18 | Fillister head screw | M10X37 | 4 | 07149156953 | $1.36 | Shop at ECS Tuning | ||||
| 19 | Bracket, control unit | 2 | 52107140863 | $17.57 | Shop at ECS Tuning | |||||
| 20 | Fillister head screw | M4X8 | 4 | 07147148547 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Connection element for thigh support | 2 | 52107161312 | $11.64 | Shop at ECS Tuning | |||||
| 22 | Spare parts kit | 1 | 52107245949 | $12.32 | Shop at ECS Tuning | |||||
