Front seat backrest unlocking for BMW 3 Series E92 330xd (2008)

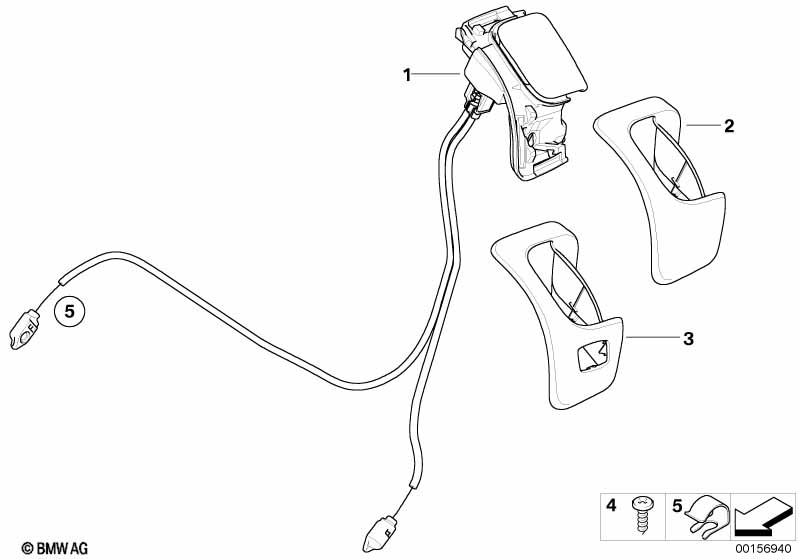

This Front seat backrest unlocking technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with beige |
B4=Yes |
|||||||||
| 01 | Unlocking unit, left | SAVANNABEIGE | 1 | 52109145909 | Shop at ECS Tuning | |||||
| 01 | Unlocking unit, right | SAVANNABEIGE | 1 | 52109145910 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 01 | Unlocking unit, left | OYSTER | 1 | 52107262799 | Shop at ECS Tuning | |||||
| 01 | Unlocking unit, right | OYSTER | 1 | 52107262800 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 01 | Unlocking unit, left | JADEGRAU | 1 | 52109114551 | Shop at ECS Tuning | |||||
| 01 | Unlocking unit, right | JADEGRAU | 1 | 52109114552 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 01 | Unlocking unit, left | GRAU | 1 | 52106979353 | $80.32 | Shop at ECS Tuning | ||||
| 01 | Unlocking unit, right | GRAU | 1 | 52106979354 | $80.32 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 01 | Unlocking unit, left | CREAMBEIGE | 1 | 52106979355 | $80.32 | Shop at ECS Tuning | ||||
| 01 | Unlocking unit, right | CREAMBEIGE | 1 | 52106979356 | $80.32 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes FHAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 01 | Unlocking unit, left | SCHWARZ | 1 | 52106979351 | $80.32 | Shop at ECS Tuning | ||||
| 01 | Unlocking unit, right | SCHWARZ | 1 | 52106979352 | $80.32 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 02 | Cover, release left | OYSTER | 1 | 52107262795 | Shop at ECS Tuning | |||||
| 02 | Cover, release right | OYSTER | 1 | 52107262796 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 02 | Cover, release left | JADEGRAU | 1 | 52109114535 | Shop at ECS Tuning | |||||
| 02 | Cover, release right | JADEGRAU | 1 | 52109114536 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 02 | Cover, release left | GRAU | 1 | 52106985583 | $9.19 | Shop at ECS Tuning | ||||
| 02 | Cover, release right | GRAU | 1 | 52106985584 | $9.19 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 02 | Cover, release left | CREAMBEIGE | 1 | 52106985585 | $9.19 | Shop at ECS Tuning | ||||
| 02 | Cover, release right | CREAMBEIGE | 1 | 52106985586 | $9.19 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes FHAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 02 | Cover, release left | SCHWARZ | 1 | 52106985581 | $9.19 | Shop at ECS Tuning | ||||
| 02 | Cover, release right | SCHWARZ | 1 | 52106985582 | $9.19 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Leather "Dakota/oyster" |
S459A=Yes LCCX=Yes |
|||||||||
| 03 | Cover, release left | OYSTER | 1 | 52107262797 | Shop at ECS Tuning | |||||
| 03 | Cover, release right | OYSTER | 1 | 52107262798 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Leather "Dakota"/jade gray |
S459A=Yes LCD2=Yes |
|||||||||
| 03 | Cover, release left | JADEGRAU | 1 | 52109114539 | Shop at ECS Tuning | |||||
| 03 | Cover, release right | JADEGRAU | 1 | 52109114540 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
S459A=Yes ALAD=Yes LCAD=Yes |
|||||||||
| 03 | Cover, release left | GRAU | 1 | 52106985589 | $9.19 | Shop at ECS Tuning | ||||
| 03 | Cover, release right | GRAU | 1 | 52106985590 | $9.19 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
S459A=Yes KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 03 | Cover, release left | CREAMBEIGE | 1 | 52106985591 | $9.19 | Shop at ECS Tuning | ||||
| 03 | Cover, release right | CREAMBEIGE | 1 | 52106985592 | $9.19 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory and Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black or Indi. leather expanded/"platin/black" |
S459A=Yes ALAT=Yes ANAT=Yes FHAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDH4=Yes NDH5=Yes NDSW=Yes ZAC8=Yes |
|||||||||
| 03 | Cover, release left | SCHWARZ | 1 | 52106985587 | $9.19 | Shop at ECS Tuning | ||||
| 03 | Cover, release right | SCHWARZ | 1 | 52106985588 | $9.19 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | 6,3X18 | 2 | 07146988879 | $0.36 | Shop at ECS Tuning | ||||
